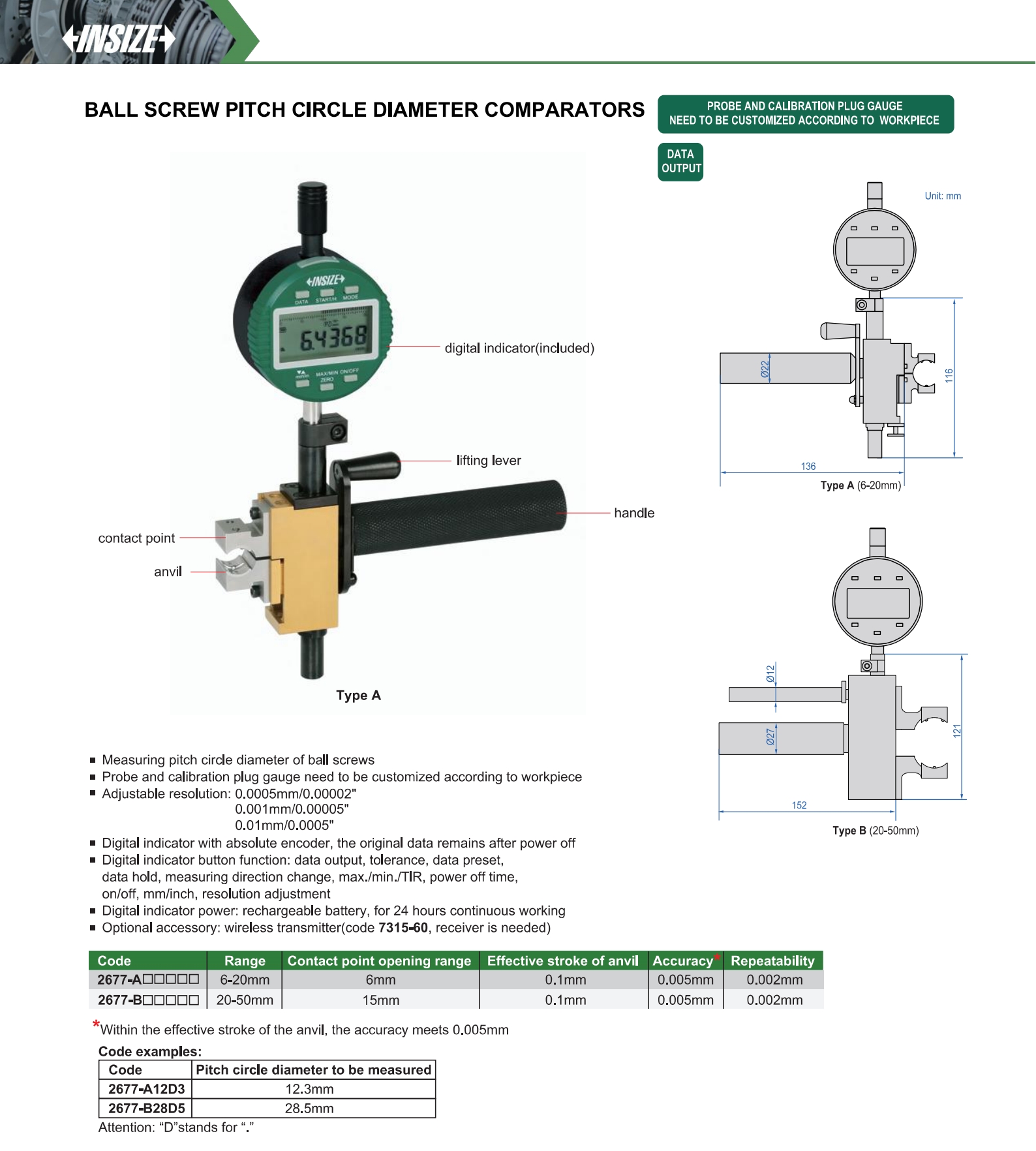

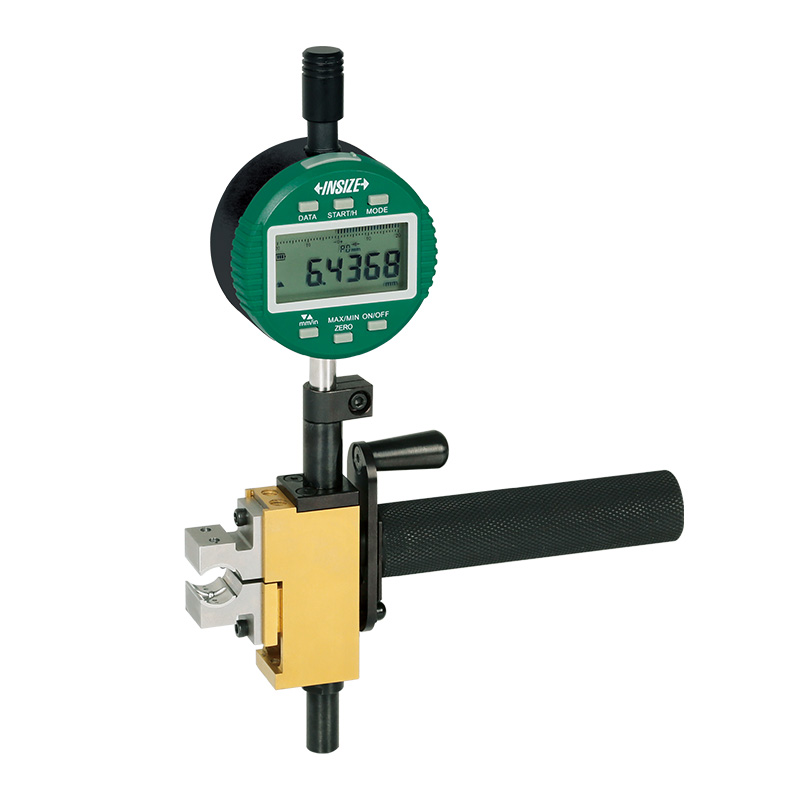

Ball Screw Pitch Circle Diameter Comparators
Code: 2677
Measuring pitch circle diameter of ball screws
Probe and calibration plug gauge need to be customized according to workpiece
Digital indicator with absolute encoder, the original data remains after power off
Digital indicator button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, mm/inch, resolution adjustment
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2677-A□□□□□ | 6-20mm | 0.005mm | 0.0005mm/0.00002", 0.001mm/0.00005", 0.01mm/0.0005" |
| 2677-B□□□□□ | 20-50mm | 0.005mm | 0.0005mm/0.00002", 0.001mm/0.00005", 0.01mm/0.0005" |
