Bore Gauges For Blind Holes
Code: 2420/2220
To measure diameter of shallow and blind holes
Optional accessory: setting ring (code 6312), long handle (code 7351), bore gauge setter
| Code | Range | Accuracy | Repeatability | Data output |
|---|---|---|---|---|

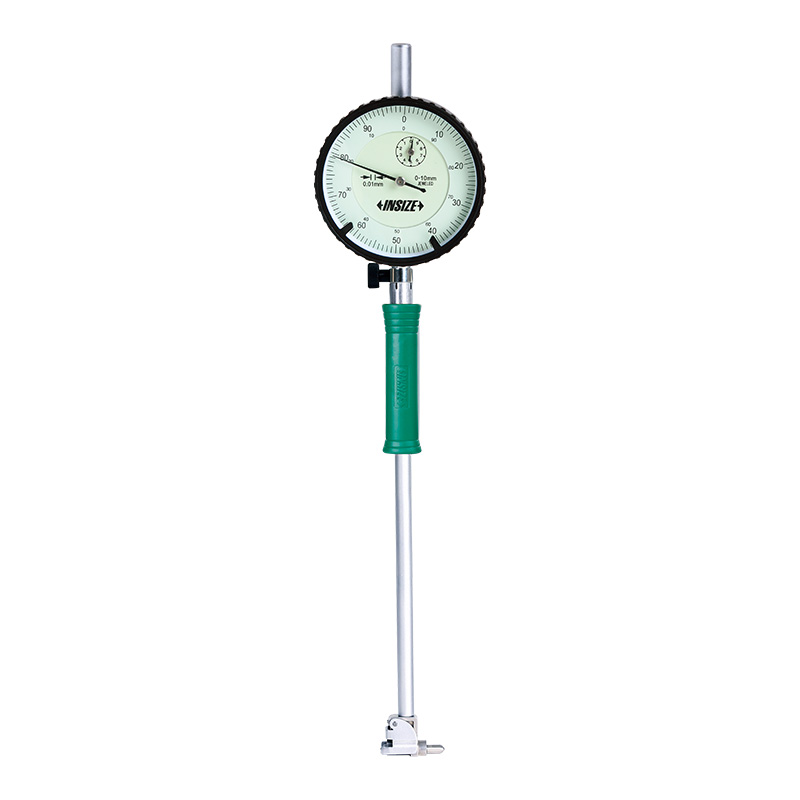

| 2420-60 | 35-60mm | ±0.018mm | 0.003mm | with dial indicator |

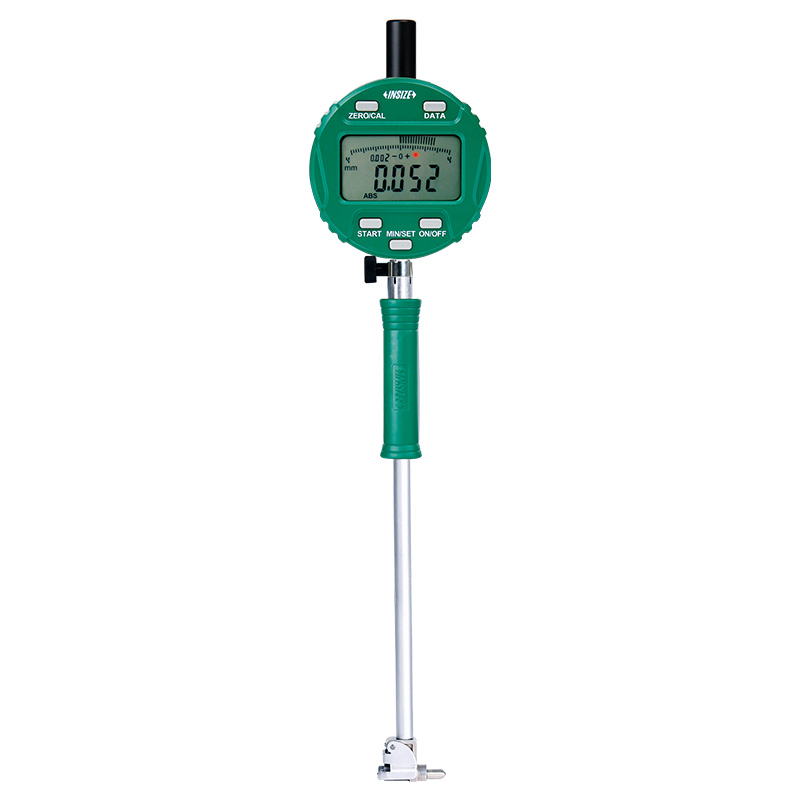

| 2220-60 | 35-60mm | ±0.018mm | 0.003mm | with digital indicator |

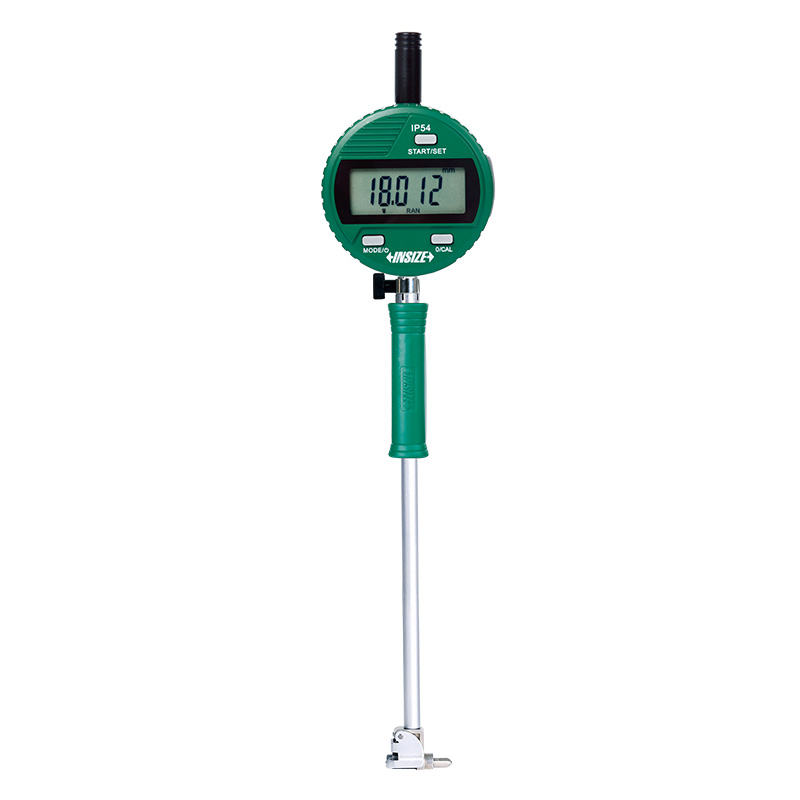

| 2220-60WP | 35-60mm | ±0.018mm | 0.003mm | with waterproof digital indicator |
View the complete
product specifications
