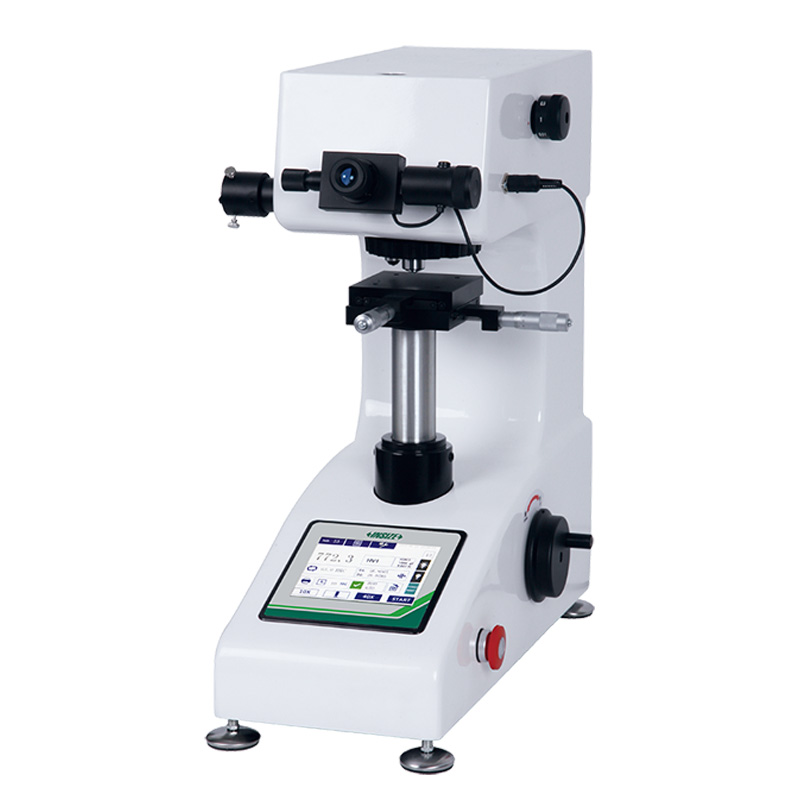

Digital Micro-Vickers Hardness Tester (Standard Type)
Code: HDT-MVH1100
Touch screen color LCD display
Data storage and average value calculation
Automatic switch between the indenter and objective lens
According to ISO 6507
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-MVH1100 | automatic (load/dwell/unload) | 90mm | 95mm | HV0.01~HV1 | 10X (for measurement or observation), 400X (for measurement) |

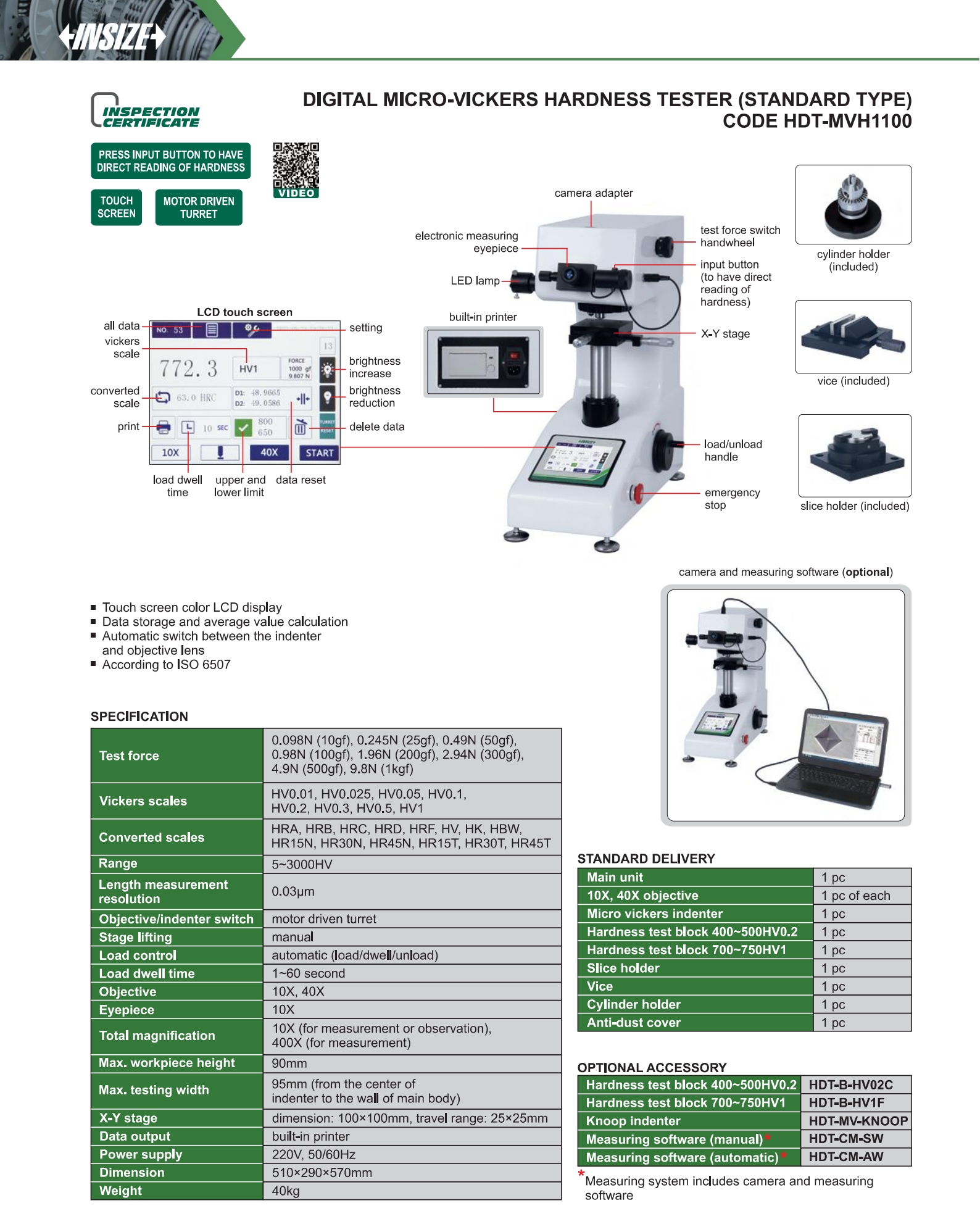

View the complete
product specifications
