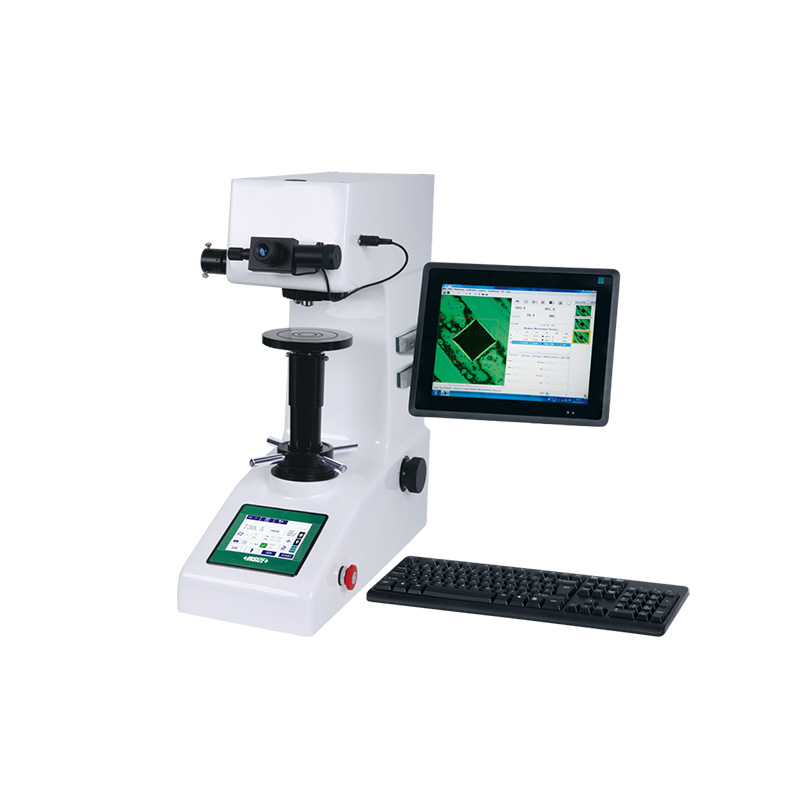

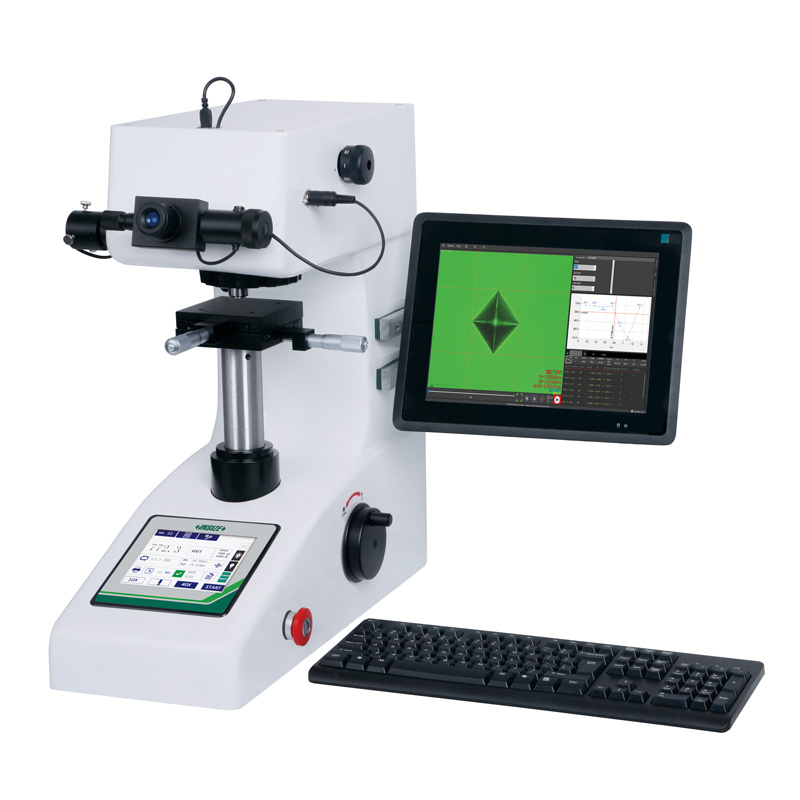

Dual Touch Screen Digital Micro-Vickers Hardness Tester (Advanced Type)
Code: HDT-DMV90
Dual touch screen control, high-definition image measurement and analysis
One click start, automatic pressing and automatic measurement
The host and vickers hardness measurement software can be operated independently
Automatic switch between the indenter and objective lens
Data storage and average value calculation
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-DMV90 | automatic (load/dwell/unload) | 90mm | 95mm | HV0.01~HV1 | 100X (for measurement or observation), 400X (for measurement) |
