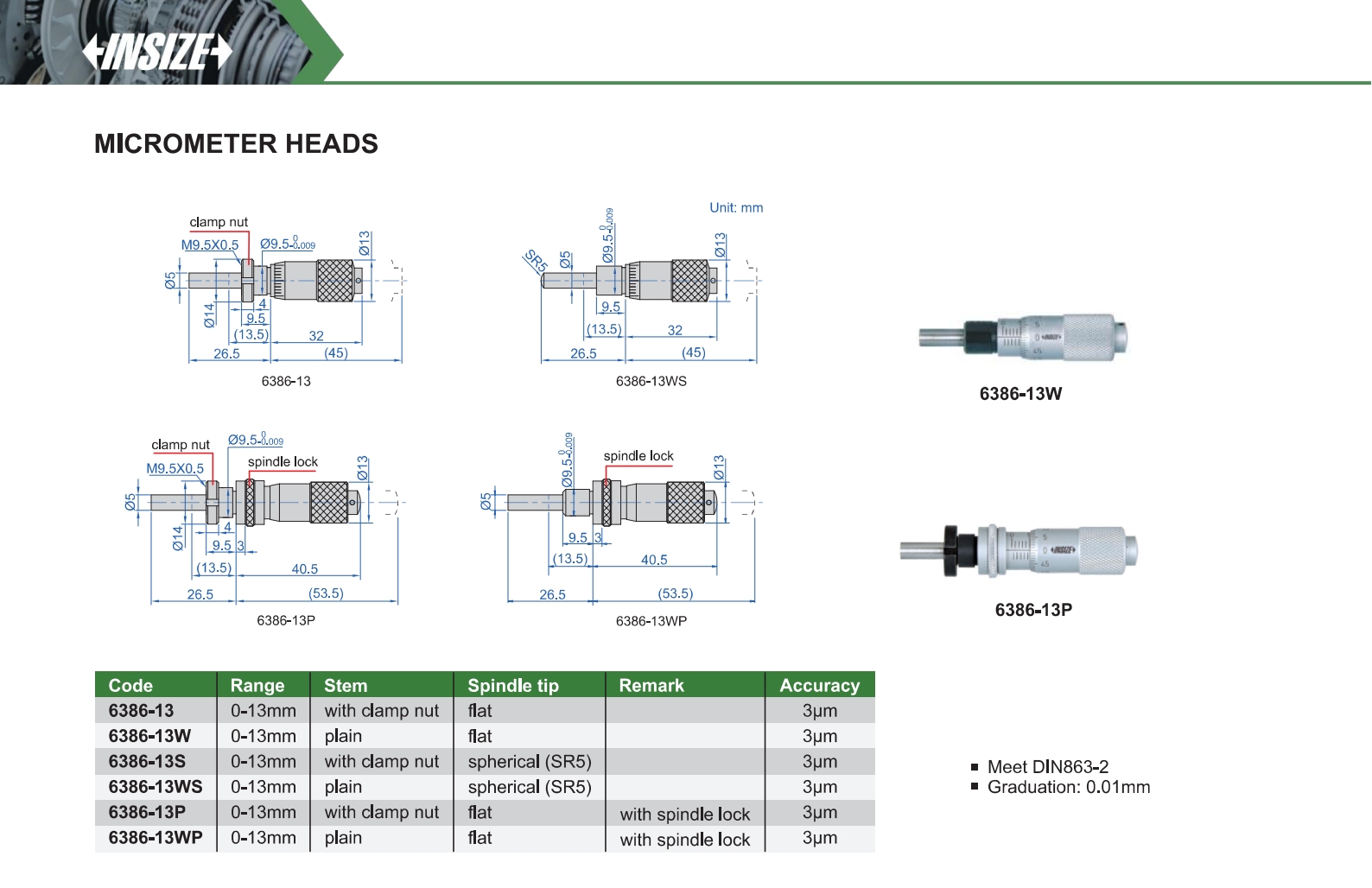

Micrometer Heads
Code: 6386
Meet DIN863-2
| Code | Range | Accuracy | Graduation | Stem | Spindle tip | Remark |
|---|---|---|---|---|---|---|

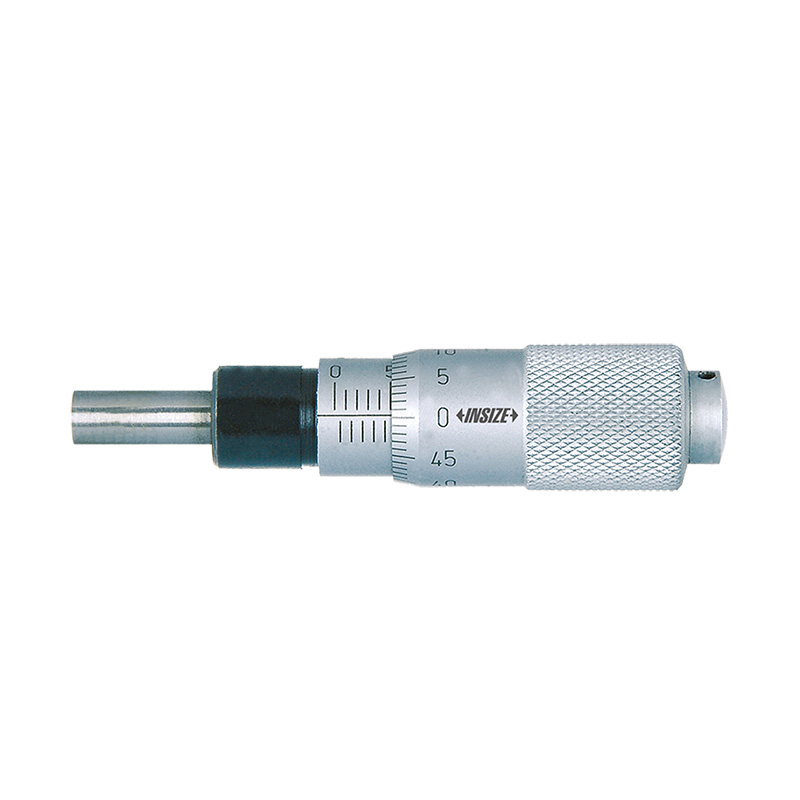

| 6386-13 | 0-13mm | 3μm | 0.01mm | with clamp nut | flat | - |
| 6386-13W | 0-13mm | 3μm | 0.01mm | plain | flat | - |
| 6386-13S | 0-13mm | 3μm | 0.01mm | with clamp nut | spherical (SR5) | - |
| 6386-13WS | 0-13mm | 3μm | 0.01mm | plain | spherical (SR5) | - |

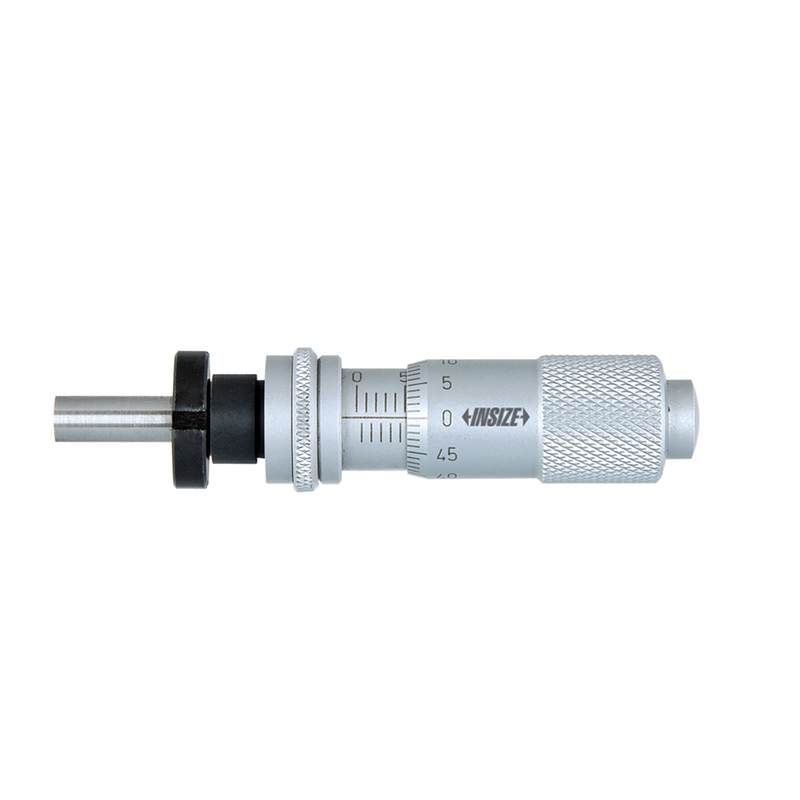

| 6386-13P | 0-13mm | 3μm | 0.01mm | with clamp nut | flat | with spindle lock |
| 6386-13WP | 0-13mm | 3μm | 0.01mm | plain | flat | with spindle lock |
