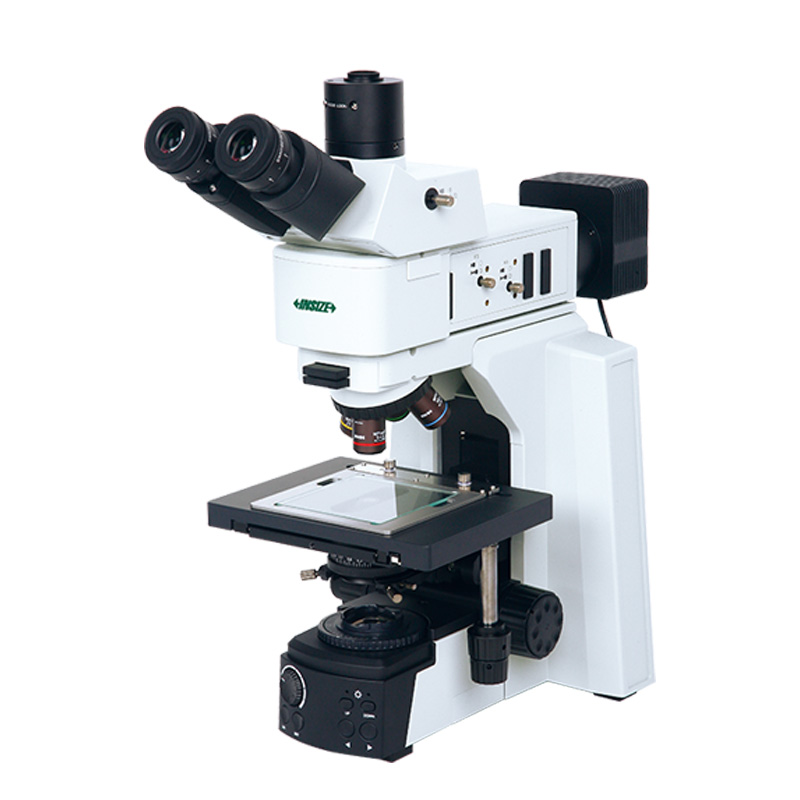

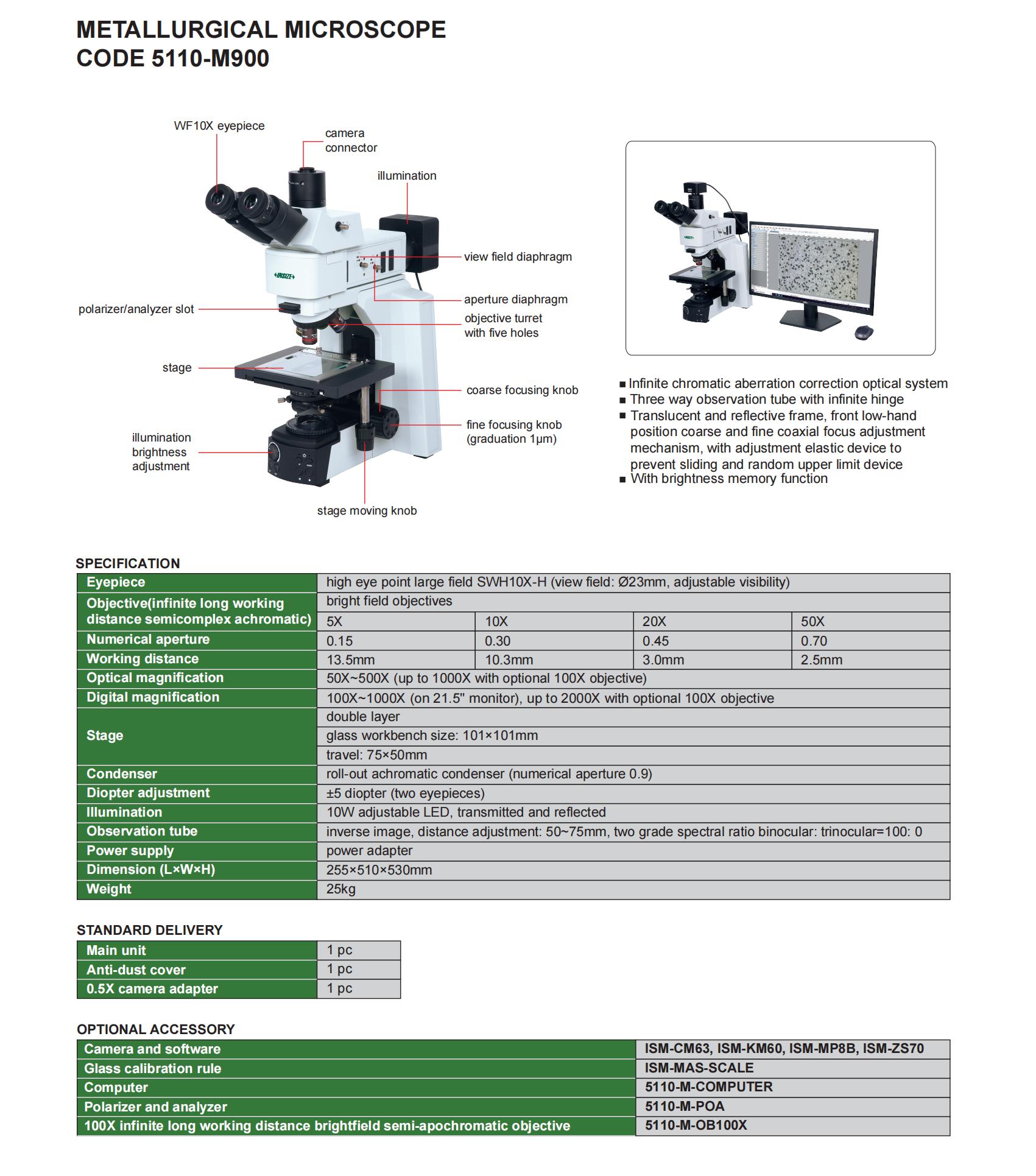

Metallurgical Microscope (Standard Type)
Code: 5110-M900
Infinite chromatic aberration correction optical system
Three way observation tube with infinite hinge
Translucent and reflective frame, front low-hand position coarse and fine coaxial focus adjustment mechanism, with adjustment elastic device to prevent sliding and random upper limit device
With brightness memory function
| Code | Stage size | Magnification | Eyepiece | Objective |
|---|---|---|---|---|
| 5110-M900 | glass workbench size: 101×101mm, travel: 75×50mm | 50X~500X | high eye point large field SWH10X-H | bright field |
