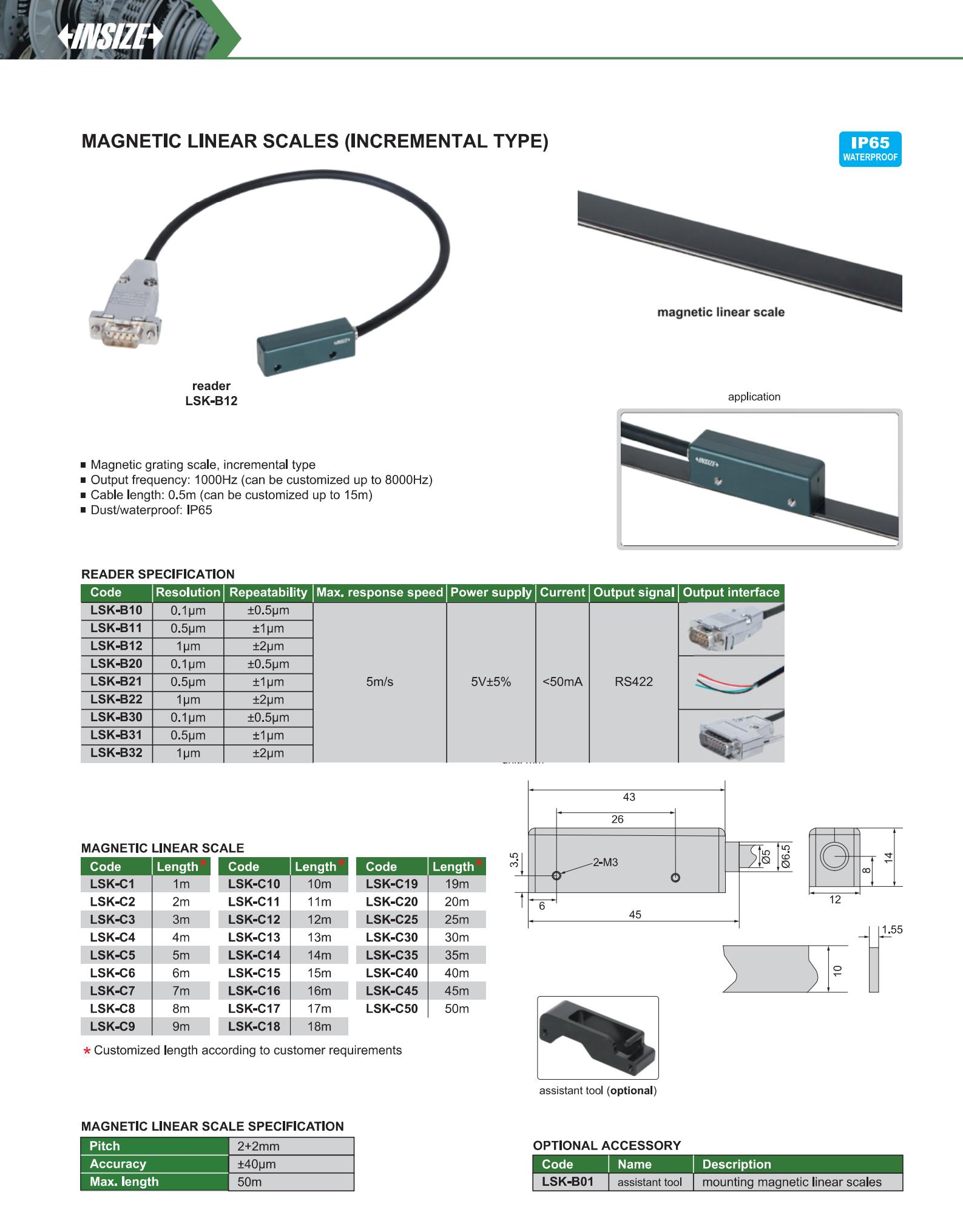

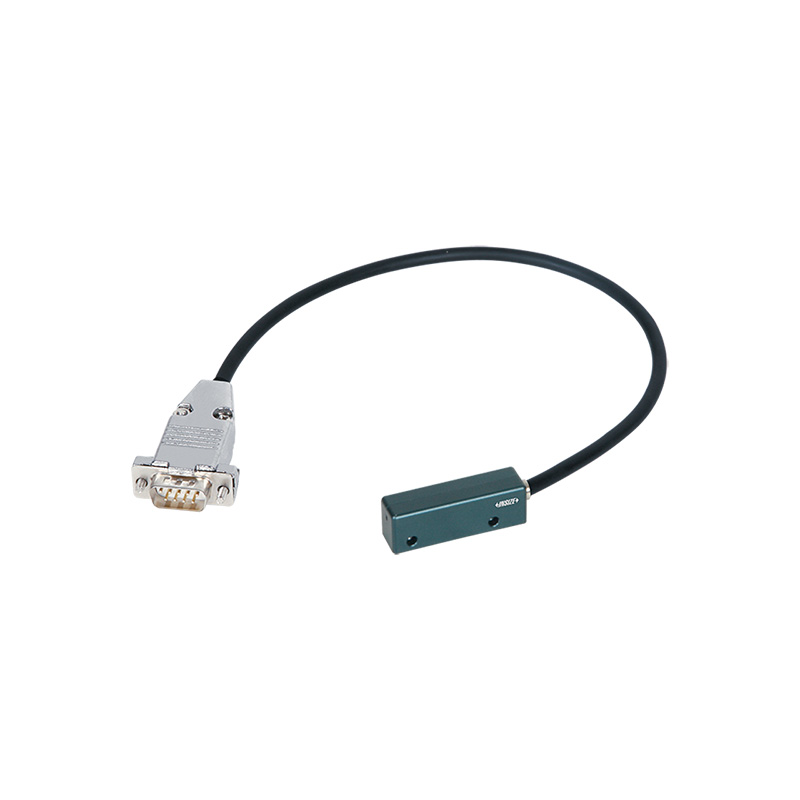

Magnetic Linear Scales (Incremental Type)
Code: LSK-B
Magnetic grating scale, incremental type
Output frequency: 1000Hz (can be customized up to 8000Hz)
Cable length: 0.5m (can be customized up to 15m)
Dust/waterproof: IP65
| Code | Type | Resolution | Repeatability | Output interface |
|---|---|---|---|---|
| LSK-B10 | Magnetic linear | 0.1µm | ±0.5µm | DB9 |
| LSK-B11 | Magnetic linear | 0.5µm | ±1µm | DB9 |
| LSK-B12 | Magnetic linear | 1µm | ±2µm | DB9 |
| LSK-B20 | Magnetic linear | 0.1µm | ±0.5µm | direct lead-out |
| LSK-B21 | Magnetic linear | 0.5µm | ±1µm | direct lead-out |
| LSK-B22 | Magnetic linear | 1µm | ±2µm | direct lead-out |
| LSK-B30 | Magnetic linear | 0.1µm | ±0.5µm | DB15 |
| LSK-B31 | Magnetic linear | 0.5µm | ±1µm | DB15 |
| LSK-B32 | Magnetic linear | 1µm | ±2µm | DB15 |
