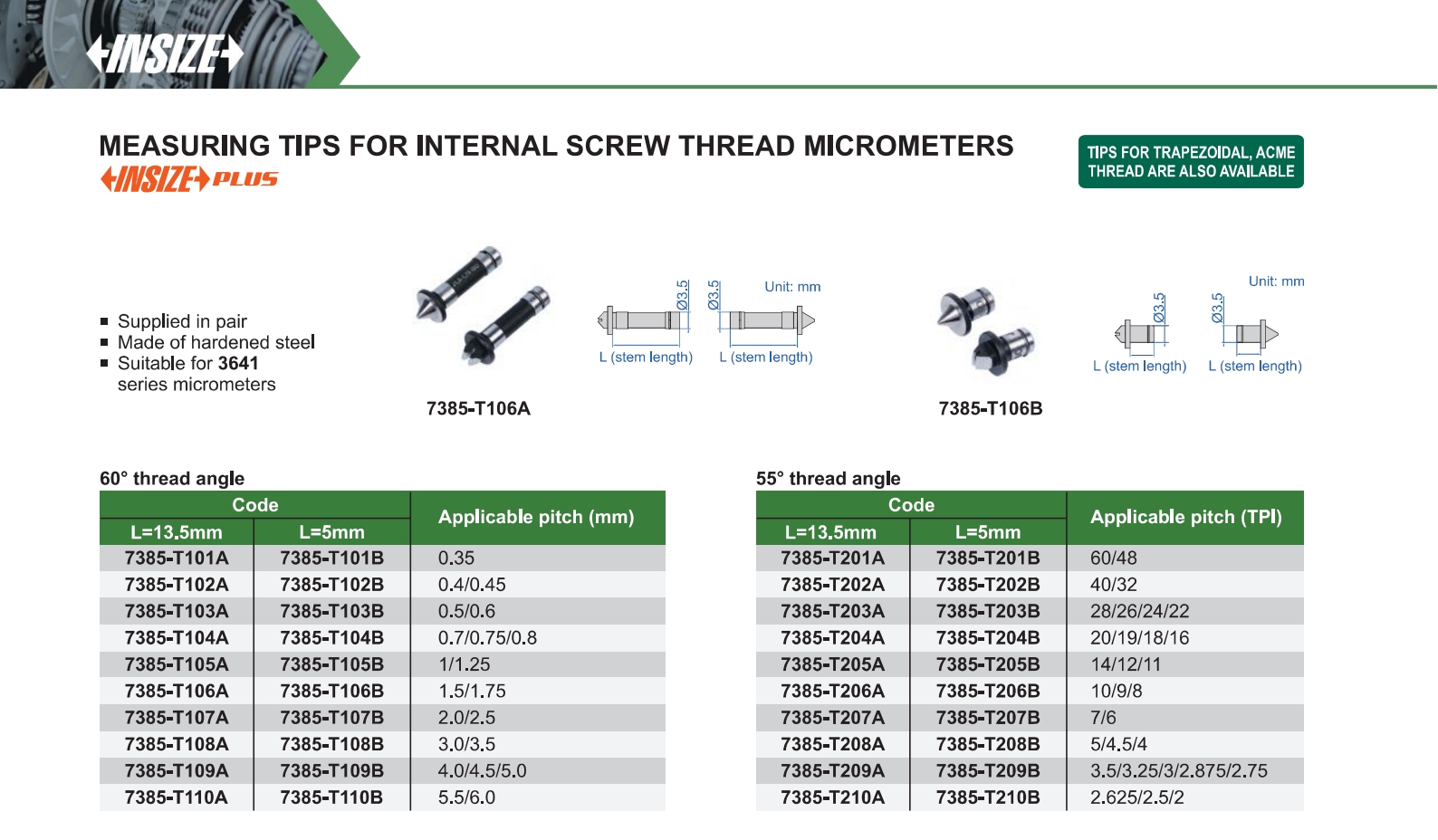

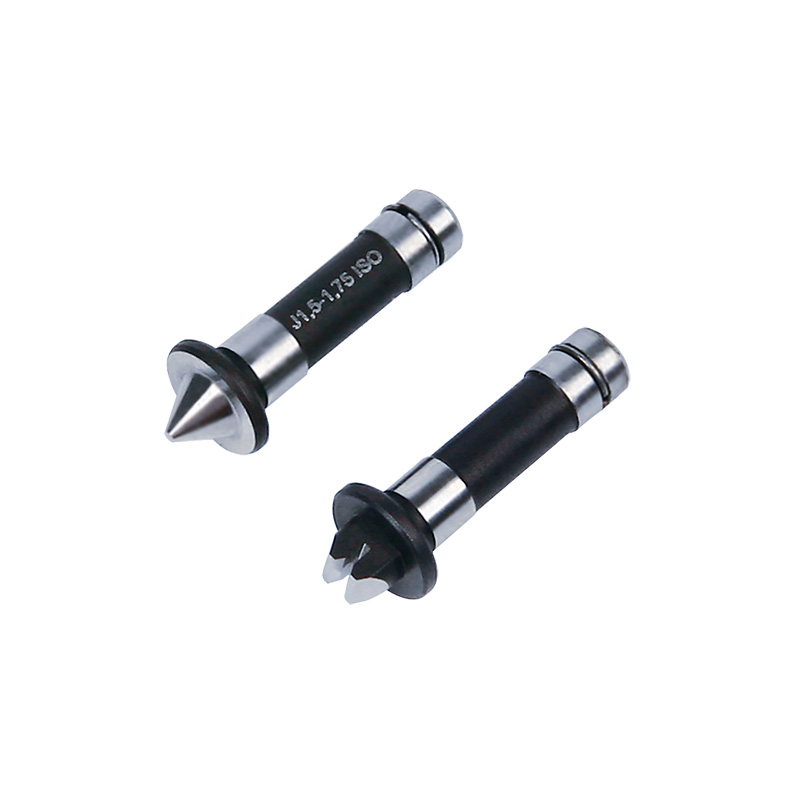

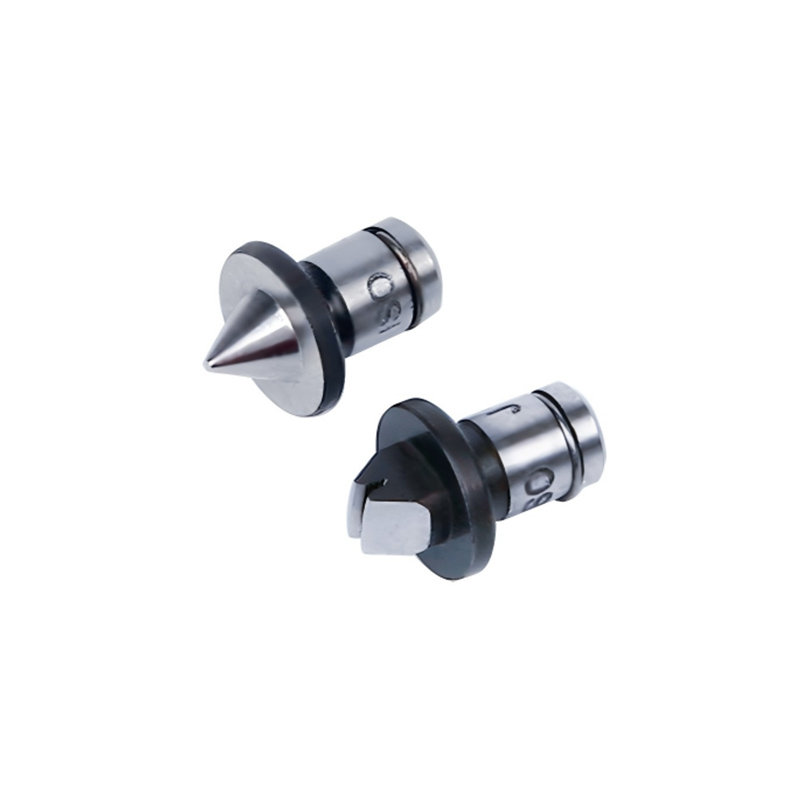

Measuring Tips For Internal Screw Thread Micrometers
Code: 7385
Supplied in pair
Made of hardened steel
Suitable for 3641 series micrometers
| Code | Type | Applicable pitch |
|---|---|---|
| 7385-T101A | 60° thread angle (L=13.5mm) | 0.35 |
| 7385-T102A | 60° thread angle (L=13.5mm) | 0.4/0.45 |
| 7385-T103A | 60° thread angle (L=13.5mm) | 0.5/0.6 |
| 7385-T104A | 60° thread angle (L=13.5mm) | 0.7/0.75/0.8 |
| 7385-T105A | 60° thread angle (L=13.5mm) | 1/1.25 |
| 7385-T106A | 60° thread angle (L=13.5mm) | 1.5/1.75 |
| 7385-T107A | 60° thread angle (L=13.5mm) | 2.0/2.5 |
| 7385-T108A | 60° thread angle (L=13.5mm) | 3.0/3.5 |
| 7385-T109A | 60° thread angle (L=13.5mm) | 4.0/4.5/5.0 |
| 7385-T110A | 60° thread angle (L=13.5mm) | 5.5/6.0 |
| 7385-T101B | 60° thread angle (L=5mm) | 0.35 |
| 7385-T102B | 60° thread angle (L=5mm) | 0.4/0.45 |
| 7385-T103B | 60° thread angle (L=5mm) | 0.5/0.6 |
| 7385-T104B | 60° thread angle (L=5mm) | 0.7/0.75/0.8 |
| 7385-T105B | 60° thread angle (L=5mm) | 1/1.25 |
| 7385-T106B | 60° thread angle (L=5mm) | 1.5/1.75 |
| 7385-T107B | 60° thread angle (L=5mm) | 2.0/2.5 |
| 7385-T108B | 60° thread angle (L=5mm) | 3.0/3.5 |
| 7385-T109B | 60° thread angle (L=5mm) | 4.0/4.5/5.0 |
| 7385-T110B | 60° thread angle (L=5mm) | 5.5/6.0 |
| 7385-T201A | 55° thread angle (L=13.5mm) | 60/48 |
| 7385-T202A | 55° thread angle (L=13.5mm) | 40/32 |
| 7385-T203A | 55° thread angle (L=13.5mm) | 28/26/24/22 |
| 7385-T204A | 55° thread angle (L=13.5mm) | 20/19/18/16 |
| 7385-T205A | 55° thread angle (L=13.5mm) | 14/12/11 |
| 7385-T206A | 55° thread angle (L=13.5mm) | 10/9/8 |
| 7385-T207A | 55° thread angle (L=13.5mm) | 7/6 |
| 7385-T208A | 55° thread angle (L=13.5mm) | 5/4.5/4 |
| 7385-T209A | 55° thread angle (L=13.5mm) | 3.5/3.25/3/2.875/2.75 |
| 7385-T210A | 55° thread angle (L=13.5mm) | 2.625/2.5/2 |
| 7385-T201B | 55° thread angle (L=5mm) | 60/48 |
| 7385-T202B | 55° thread angle (L=5mm) | 40/32 |
| 7385-T203B | 55° thread angle (L=5mm) | 28/26/24/22 |
| 7385-T204B | 55° thread angle (L=5mm) | 20/19/18/16 |
| 7385-T205B | 55° thread angle (L=5mm) | 14/12/11 |
| 7385-T206B | 55° thread angle (L=5mm) | 10/9/8 |
| 7385-T207B | 55° thread angle (L=5mm) | 7/6 |
| 7385-T208B | 55° thread angle (L=5mm) | 5/4.5/4 |
| 7385-T209B | 55° thread angle (L=5mm) | 3.5/3.25/3/2.875/2.75 |
| 7385-T210B | 55° thread angle (L=5mm) | 2.625/2.5/2 |
