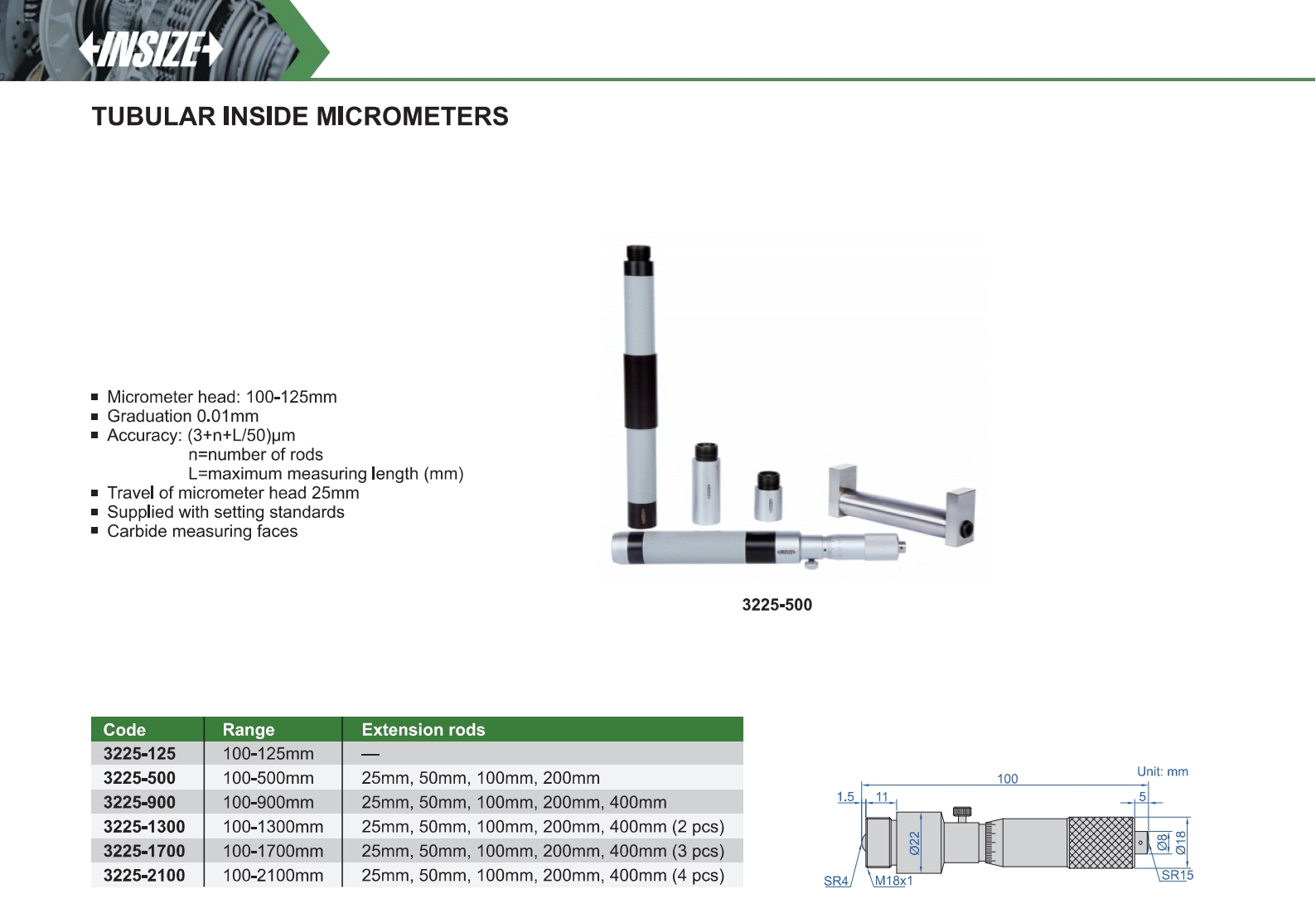

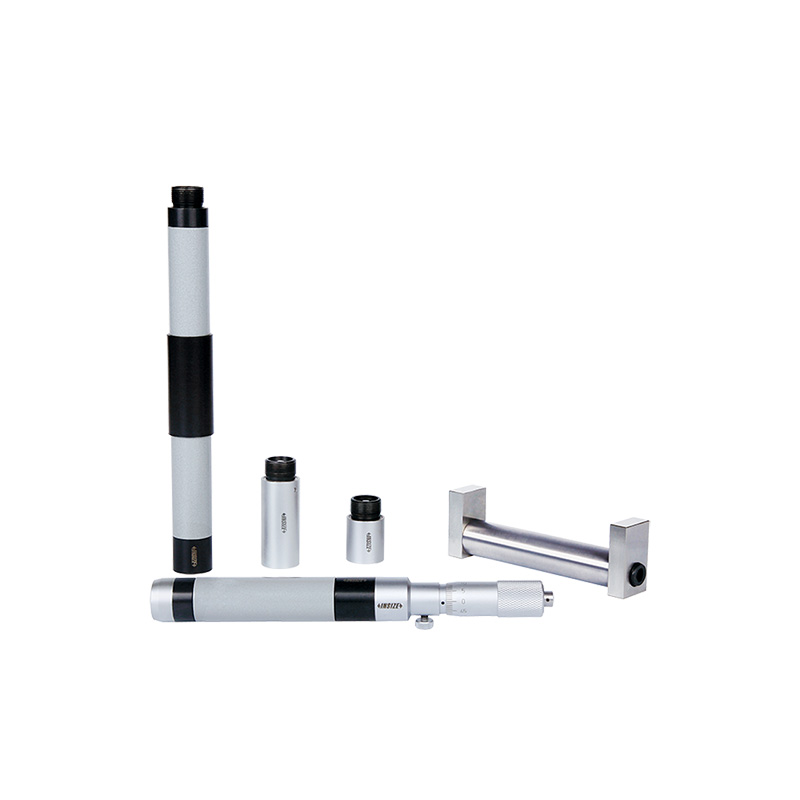

Tubular Inside Micrometers
Code: 3225
Micrometer head: 100-125mm
Accuracy: (3+n+L/50)µm n=number of rods L=maximum measuring length (mm)
Travel of micrometer head 25mm
Supplied with setting standards
Carbide measuring faces
| Code | Range | Graduation |
|---|---|---|
| 3225-125 | 100-125mm | 0.01mm |
| 3225-500 | 100-500mm | 0.01mm |
| 3225-900 | 100-900mm | 0.01mm |
| 3225-1300 | 100-1300mm | 0.01mm |
| 3225-1700 | 100-1700mm | 0.01mm |
| 3225-2100 | 100-2100mm | 0.01mm |
