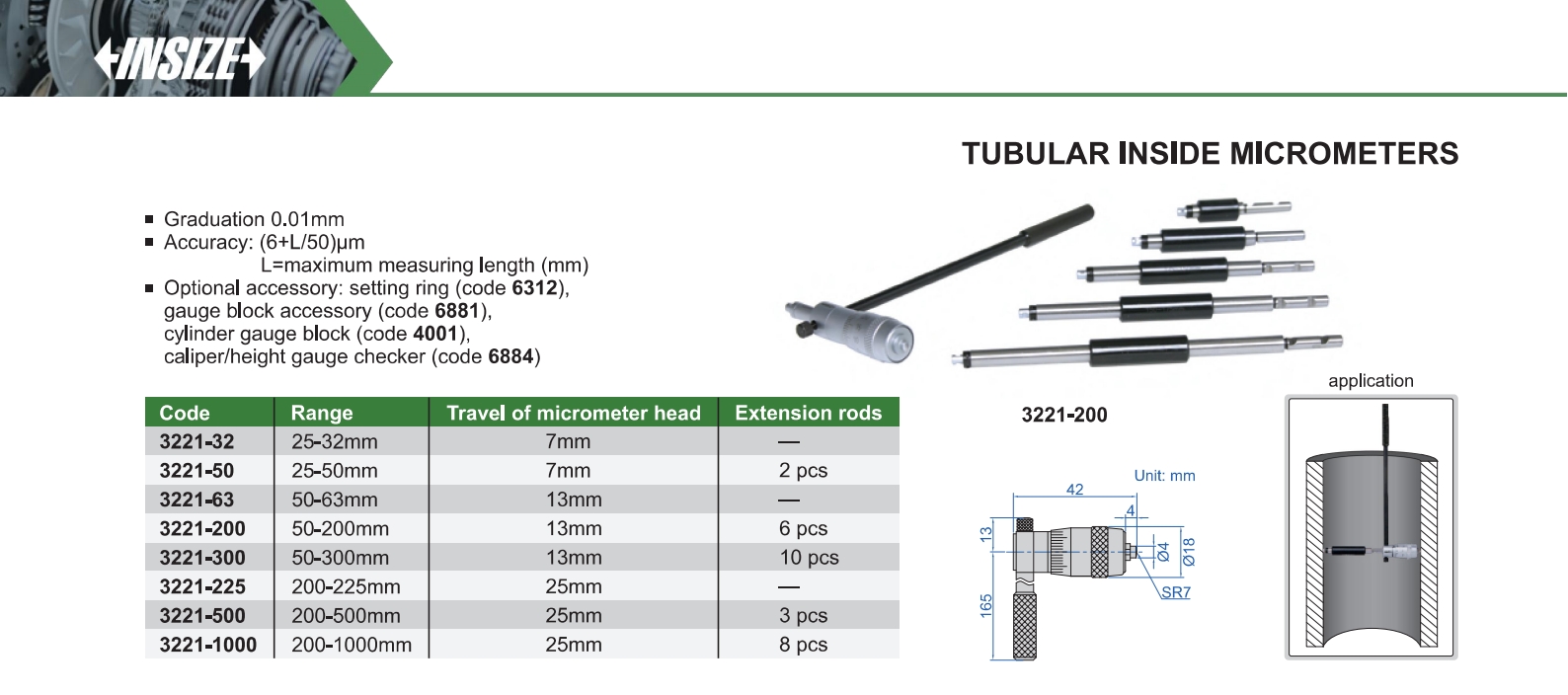

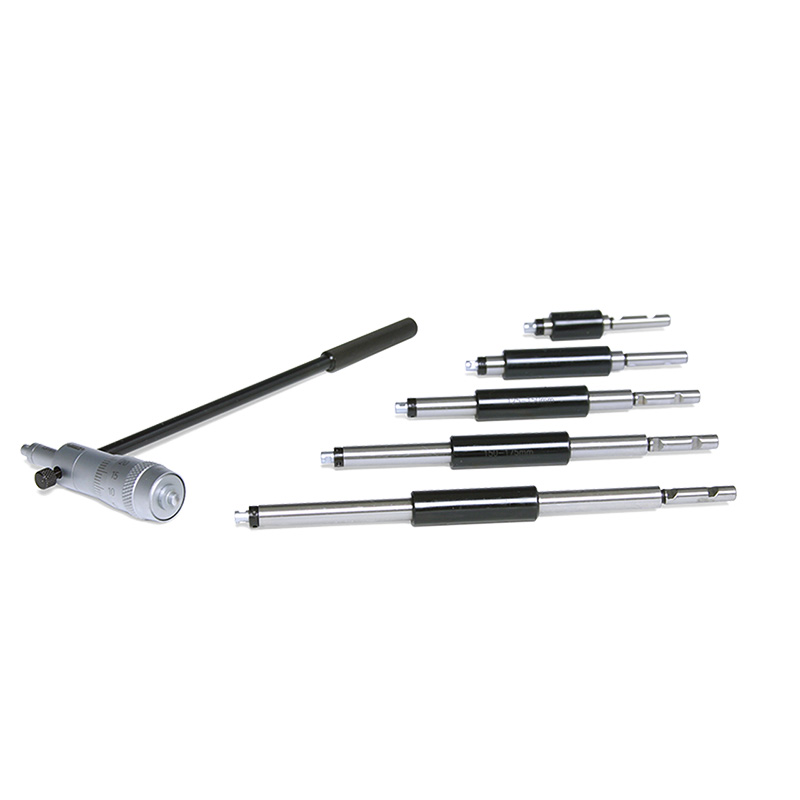

Tubular Inside Micrometers
Code: 3221
Accuracy: (6+L/50)µm, L=maximum measuring length (mm)
Optional accessory: setting ring (code 6312), gauge block accessory (code 6881), cylinder gauge block (code 4001), caliper/height gauge checker (code 6884)
| Code | Range | Graduation |
|---|---|---|
| 3221-32 | 25-32mm | 0.01mm |
| 3221-50 | 25-50mm | 0.01mm |
| 3221-63 | 50-63mm | 0.01mm |
| 3221-200 | 50-200mm | 0.01mm |
| 3221-300 | 50-300mm | 0.01mm |
| 3221-225 | 200-225mm | 0.01mm |
| 3221-500 | 200-500mm | 0.01mm |
| 3221-1000 | 200-1000mm | 0.01mm |
