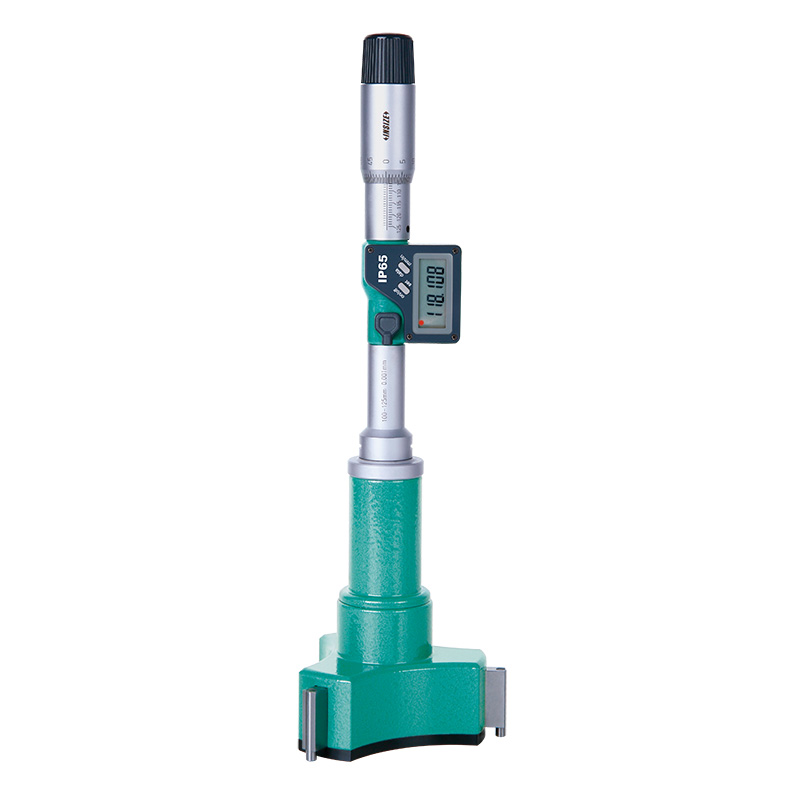

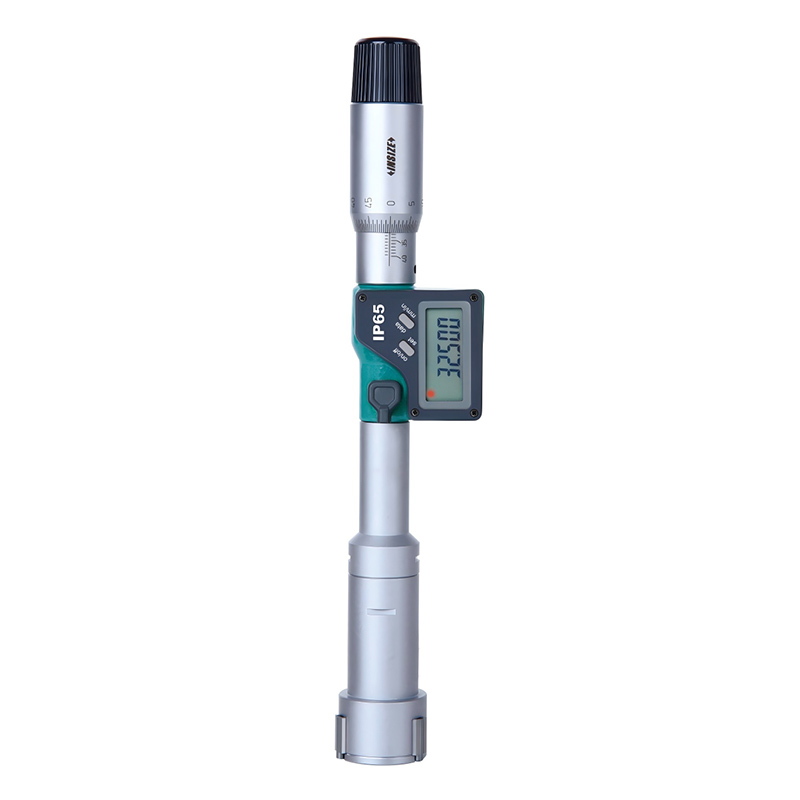

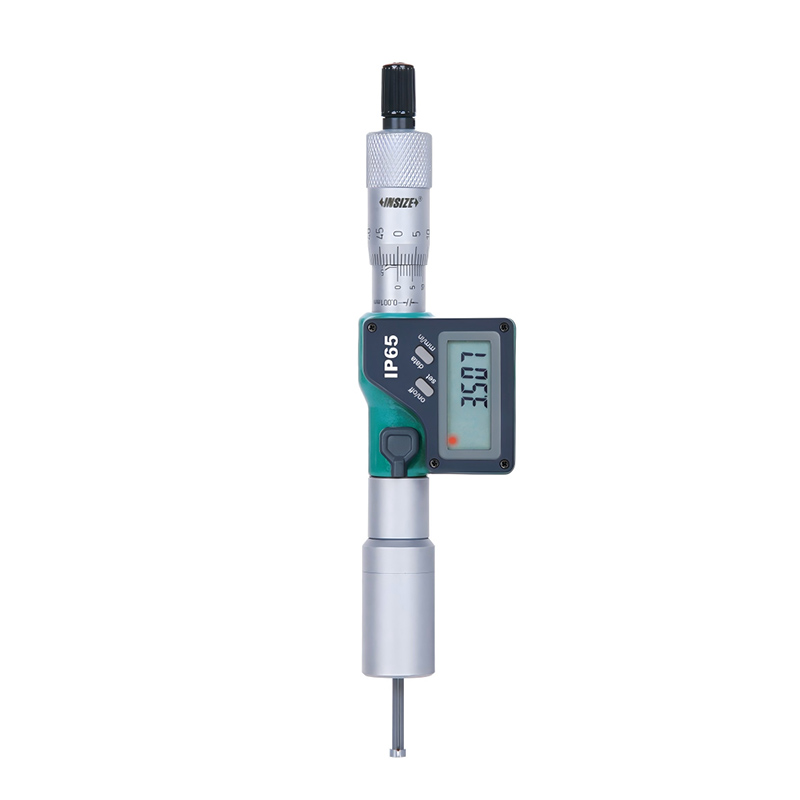

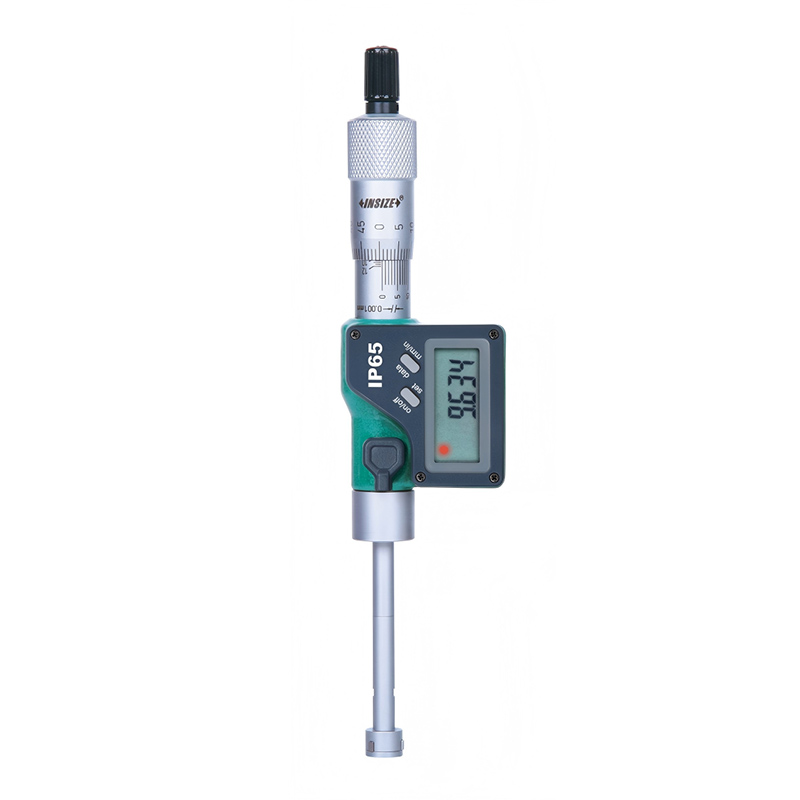

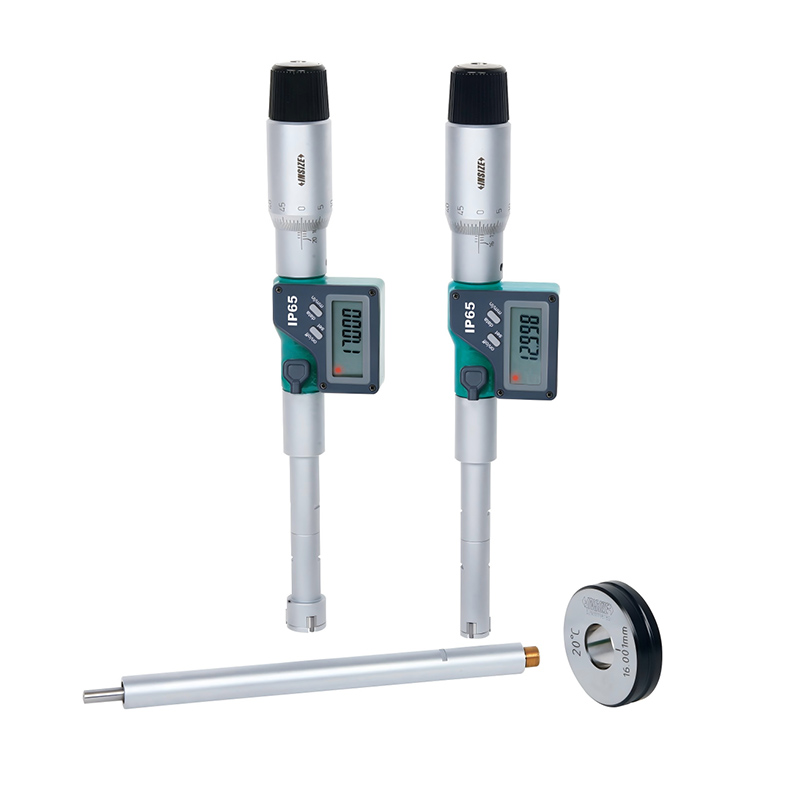

Digital Two Points/Three Points Internal Micrometers
Code: 3127
IP65 dust/waterproof
Buttons: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3127-2 | 2-2.5mm/0.08-0.10" | 6μm | 0.001mm/0.00005" |
| 3127-3 | 2.5-3mm/0.10-0.12" | 6μm | 0.001mm/0.00005" |
| 3127-4 | 3-4mm/0.12-0.16" | 6μm | 0.001mm/0.00005" |
| 3127-5 | 4-5mm/0.16-0.20" | 6μm | 0.001mm/0.00005" |
| 3127-6 | 5-6mm/0.20-0.24" | 6μm | 0.001mm/0.00005" |
| 3127-8 | 6-8mm/0.24-0.31" | 4μm | 0.001mm/0.00005" |
| 3127-10 | 8-10mm/0.31-0.39" | 4μm | 0.001mm/0.00005" |
| 3127-12 | 10-12mm/0.39-0.47" | 4μm | 0.001mm/0.00005" |
| 3127-16 | 12-16mm/0.47-0.63" | 4μm | 0.001mm/0.00005" |
| 3127-20 | 16-20mm/0.63-0.79" | 4μm | 0.001mm/0.00005" |
| 3127-25 | 20-25mm/0.79-0.98" | 4μm | 0.001mm/0.00005" |
| 3127-30 | 25-30mm/0.98-1.18" | 4μm | 0.001mm/0.00005" |
| 3127-40 | 30-40mm/1.18-1.57" | 4μm | 0.001mm/0.00005" |
| 3127-50 | 40-50mm/1.57-1.97" | 5μm | 0.001mm/0.00005" |
| 3127-63 | 50-63mm/1.97-2.48" | 5μm | 0.001mm/0.00005" |
| 3127-75 | 62-75mm/2.44-2.95" | 5μm | 0.001mm/0.00005" |
| 3127-88 | 75-88mm/2.95-3.46" | 5μm | 0.001mm/0.00005" |
| 3127-100 | 87-100mm/3.43-3.94" | 5μm | 0.001mm/0.00005" |
| 3127-125 | 100-125mm/3.94-4.92" | 6μm | 0.001mm/0.00005" |
| 3127-150 | 125-150mm/4.92-5.91" | 6μm | 0.001mm/0.00005" |
| 3127-175 | 150-175mm/5.91-6.89" | 7μm | 0.001mm/0.00005" |
| 3127-200 | 175-200mm/6.89-7.87" | 7μm | 0.001mm/0.00005" |
| 3127-225 | 200-225mm/7.87-8.86" | 8μm | 0.001mm/0.00005" |
| 3127-250 | 225-250mm/8.86-9.84" | 8μm | 0.001mm/0.00005" |
| 3127-275 | 250-275mm/9.84-10.83" | 9μm | 0.001mm/0.0001" |
| 3127-300 | 275-300mm/10.83-11.81" | 9μm | 0.001mm/0.0001" |
| 3127-232 | 2-3mm/0.08-0.12" | 6μm | 0.001mm/0.00005" |
| 3127-363 | 3-6mm/0.12-0.24" | 6μm | 0.001mm/0.00005" |
| 3127-123 | 6-12mm/0.24-0.47" | 4μm | 0.001mm/0.00005" |
| 3127-202 | 12-20mm/0.47-0.79" | 4μm | 0.001mm/0.00005" |
| 3127-504 | 20-50mm/0.79-1.97" | 4-5μm | 0.001mm/0.00005" |
| 3127-1004 | 50-100mm/1.97-3.94" | 5μm | 0.001mm/0.00005" |

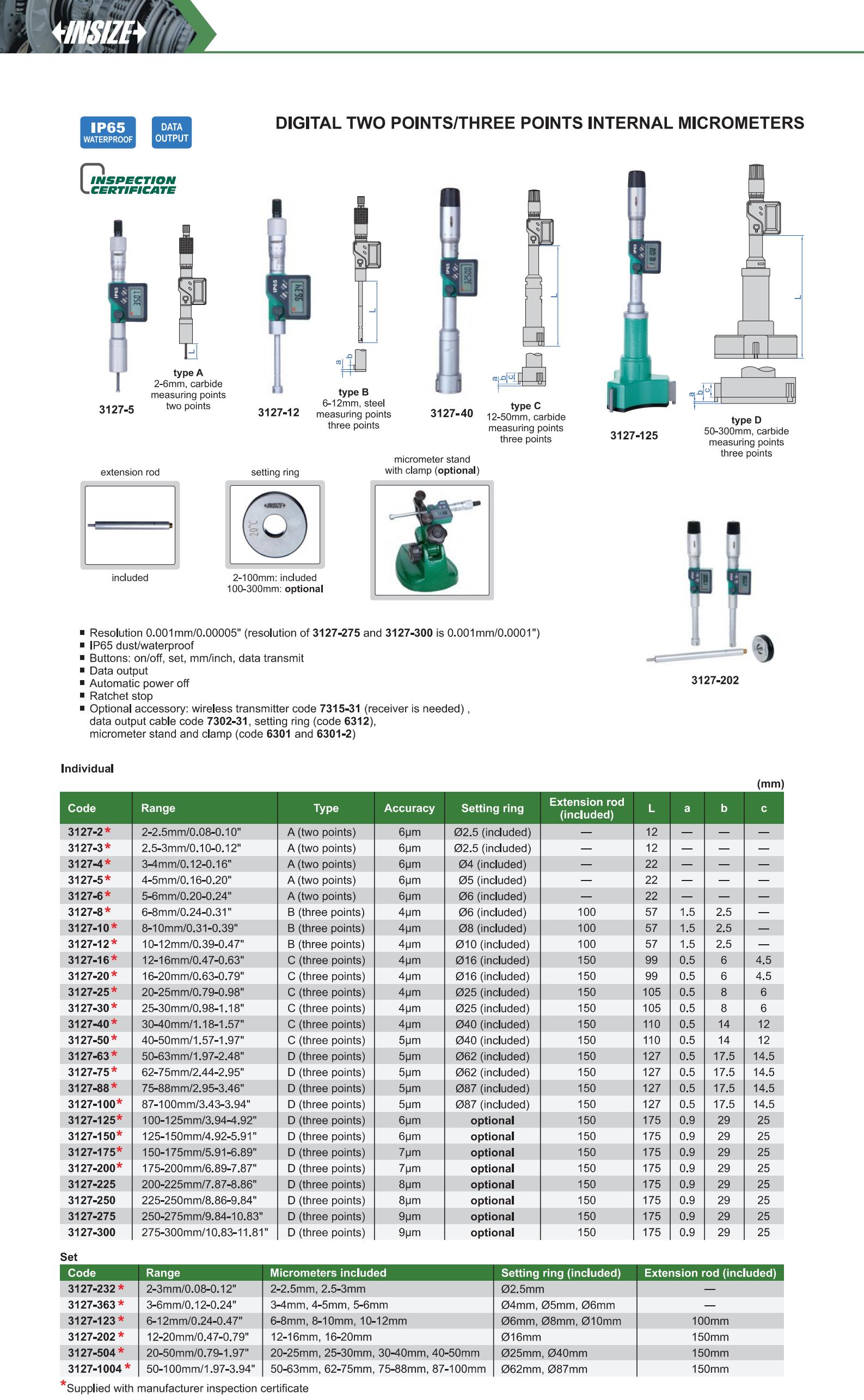

View the complete
