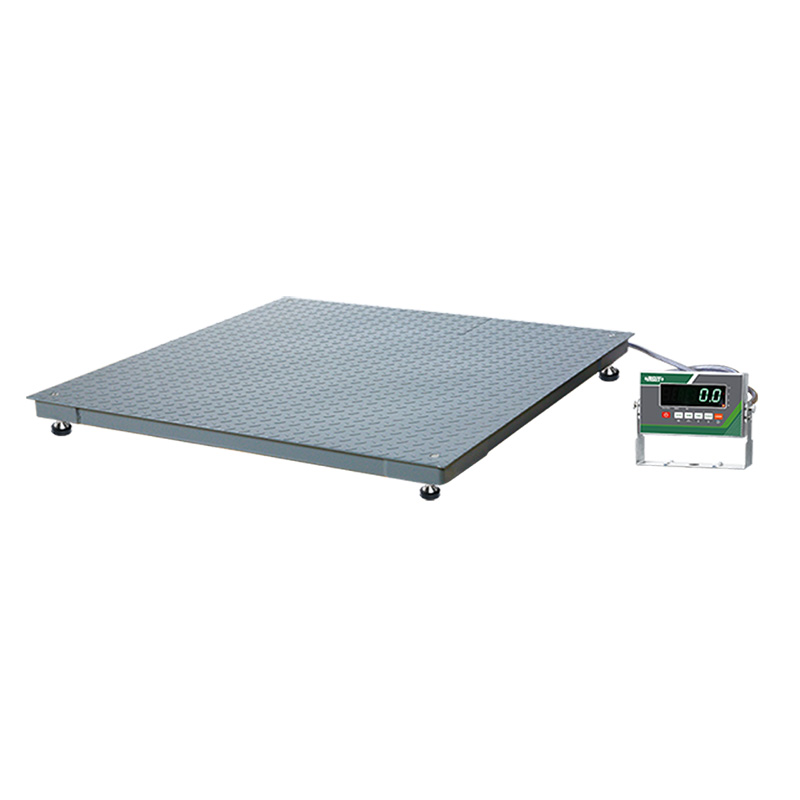

High Precision Floor Scales
Code: 8402
Simple counting, animal scale, checking alarm
Peak (max.) and tracking mode
Zero-setting, weighing, subtracting tare value
Overload alarm
Automatic power off
Data output
Unit: kg, lb
| Code | Resolution | Maximum weighing | Dimension of pan |
|---|---|---|---|
| 8402-1TA | 0.2kg | 1t | 800×800mm |
| 8402-2TA | 0.2kg | 2t | 800×800mm |
| 8402-3TA | 0.2kg | 3t | 800×800mm |
| 8402-4TA | 0.5kg | 4t | 800×800mm |
| 8402-5TA | 0.5kg | 5t | 800×800mm |
| 8402-1TB | 0.2kg | 1t | 1000×1000mm |
| 8402-2TB | 0.2kg | 2t | 1000×1000mm |
| 8402-3TB | 0.2kg | 3t | 1000×1000mm |
| 8402-4TB | 0.5kg | 4t | 1000×1000mm |
| 8402-5TB | 0.5kg | 5t | 1000×1000mm |
| 8402-1TC | 0.2kg | 1t | 1200×1200mm |
| 8402-2TC | 0.2kg | 2t | 1200×1200mm |
| 8402-3TC | 0.2kg | 3t | 1200×1200mm |
| 8402-4TC | 0.5kg | 4t | 1200×1200mm |
| 8402-5TC | 0.5kg | 5t | 1200×1200mm |
| 8402-1TD | 0.2kg | 1t | 1200×1500mm |
| 8402-2TD | 0.2kg | 2t | 1200×1500mm |
| 8402-3TD | 0.2kg | 3t | 1200×1500mm |
| 8402-4TD | 0.5kg | 4t | 1200×1500mm |
| 8402-5TD | 0.5kg | 5t | 1200×1500mm |
| 8402-1TE | 0.2kg | 1t | 1500×1500mm |
| 8402-2TE | 0.2kg | 2t | 1500×1500mm |
| 8402-3TE | 0.2kg | 3t | 1500×1500mm |
| 8402-4TE | 0.5kg | 4t | 1500×1500mm |
| 8402-5TE | 0.5kg | 5t | 1500×1500mm |
| 8402-1TF | 0.5kg | 1t | 2000×2000mm |
| 8402-2TF | 0.5kg | 2t | 2000×2000mm |
| 8402-3TF | 0.5kg | 3t | 2000×2000mm |
| 8402-4TF | 1kg | 4t | 2000×2000mm |
| 8402-5TF | 1kg | 5t | 2000×2000mm |
