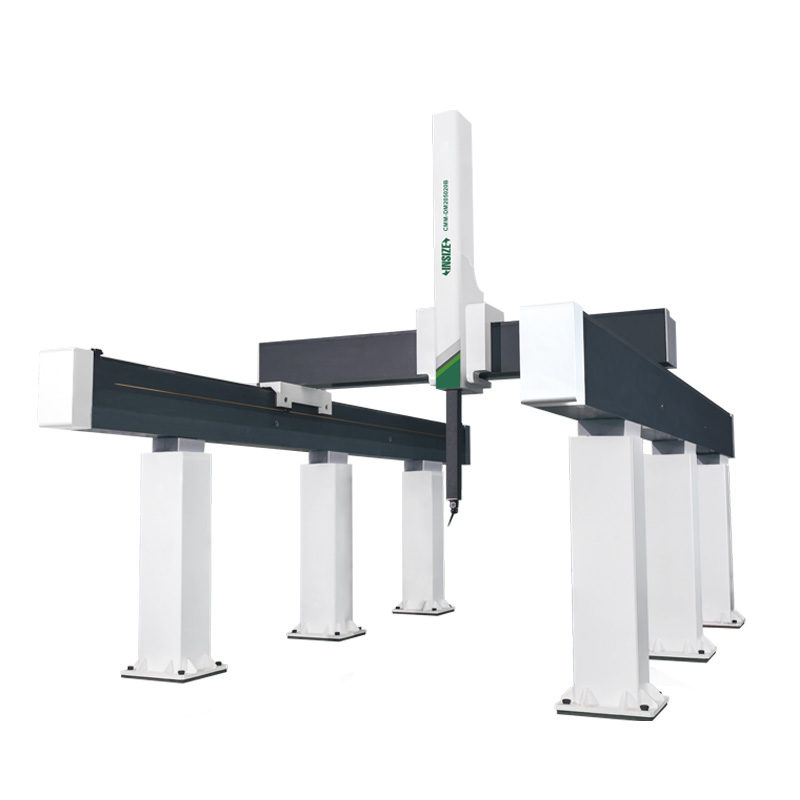

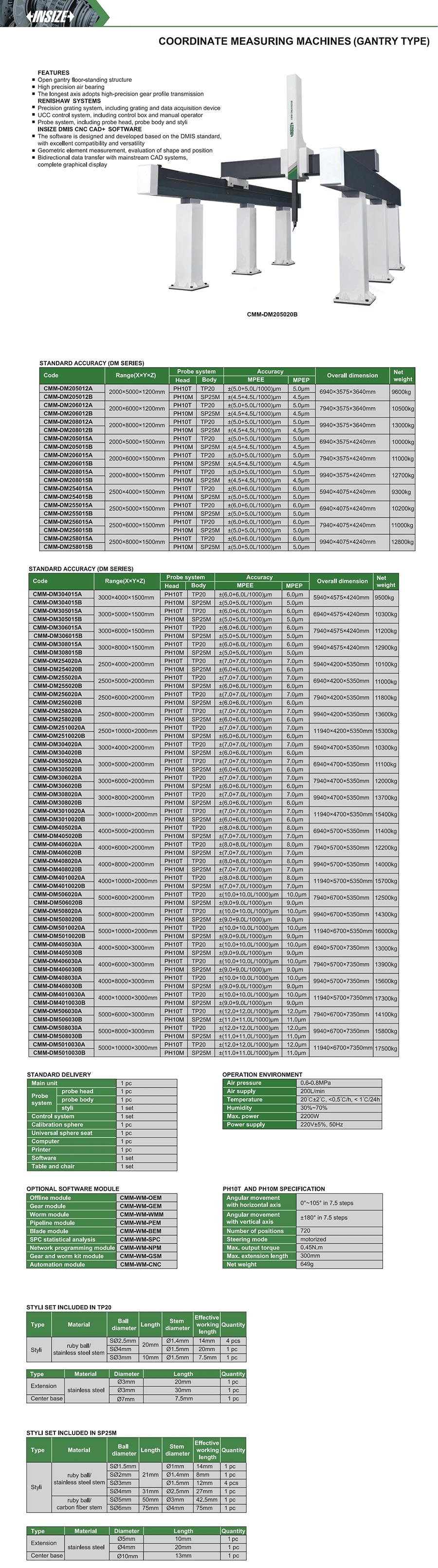

Coordinate Measuring Machines (Gantry Type)
Code: CMM-DM Series
FEATURES: Open gantry floor-standing structure. High precision air bearing. The longest axis adopts high-precision gear profile transmission
RENISHAW SYSTEMS: Precision grating system, including grating and data acquisition device. UCC control system, including control box and manual operator. Probe system, including probe head, probe body and styli
INSIZE DMIS CNC CAD+ SOFTWARE: The software is designed and developed based on the DMIS standard, with excellent compatibility and versatility. Geometric element measurement, evaluation of shape and position. Bidirectional data transfer with mainstream CAD systems, complete graphical display
| Code | Type | Range | Accuracy | Probe system |
|---|---|---|---|---|
| CMM-DM205012A | DM SERIES | 2000×5000×1200mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM205012B | DM SERIES | 2000×5000×1200mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM206012A | DM SERIES | 2000×6000×1200mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM206012B | DM SERIES | 2000×6000×1200mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM208012A | DM SERIES | 2000×8000×1200mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM208012B | DM SERIES | 2000×8000×1200mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM205015A | DM SERIES | 2000×5000×1500mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM205015B | DM SERIES | 2000×5000×1500mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM206015A | DM SERIES | 2000×6000×1500mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM206015B | DM SERIES | 2000×6000×1500mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM208015A | DM SERIES | 2000×8000×1500mm | ±(5.0+5.0L/1000)μm | PH10T/TP20 |
| CMM-DM208015B | DM SERIES | 2000×8000×1500mm | ±(4.5+4.5L/1000)μm | PH10M/SP25M |
| CMM-DM254015A | DM SERIES | 2500×4000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM254015B | DM SERIES | 2500×4000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM255015A | DM SERIES | 2500×5000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM255015B | DM SERIES | 2500×5000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM256015A | DM SERIES | 2500×6000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM256015B | DM SERIES | 2500×6000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM258015A | DM SERIES | 2500×8000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM258015B | DM SERIES | 2500×8000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM304015A | DM SERIES | 3000×4000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM304015B | DM SERIES | 3000×4000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM305015A | DM SERIES | 3000×5000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM305015B | DM SERIES | 3000×5000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM306015A | DM SERIES | 3000×6000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM306015B | DM SERIES | 3000×6000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM308015A | DM SERIES | 3000×8000×1500mm | ±(6.0+6.0L/1000)μm | PH10T/TP20 |
| CMM-DM308015B | DM SERIES | 3000×8000×1500mm | ±(5.0+5.0L/1000)μm | PH10M/SP25M |
| CMM-DM254020A | DM SERIES | 2500×4000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM254020B | DM SERIES | 2500×4000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM255020A | DM SERIES | 2500×5000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM255020B | DM SERIES | 2500×5000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM256020A | DM SERIES | 2500×6000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM256020B | DM SERIES | 2500×6000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM258020A | DM SERIES | 2500×8000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM258020B | DM SERIES | 2500×8000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM2510020A | DM SERIES | 2500×10000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM2510020B | DM SERIES | 2500×10000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM304020A | DM SERIES | 3000×4000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM304020B | DM SERIES | 3000×4000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM305020A | DM SERIES | 3000×5000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM305020B | DM SERIES | 3000×5000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM306020A | DM SERIES | 3000×6000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM306020B | DM SERIES | 3000×6000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM308020A | DM SERIES | 3000×8000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM308020B | DM SERIES | 3000×8000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM3010020A | DM SERIES | 3000×10000×2000mm | ±(7.0+7.0L/1000)μm | PH10T/TP20 |
| CMM-DM3010020B | DM SERIES | 3000×10000×2000mm | ±(6.0+6.0L/1000)μm | PH10M/SP25M |
| CMM-DM405020A | DM SERIES | 4000×5000×2000mm | ±(8.0+8.0L/1000)μm | PH10T/TP20 |
| CMM-DM405020B | DM SERIES | 4000×5000×2000mm | ±(7.0+7.0L/1000)μm | PH10M/SP25M |
| CMM-DM406020A | DM SERIES | 4000×6000×2000mm | ±(8.0+8.0L/1000)μm | PH10T/TP20 |
| CMM-DM406020B | DM SERIES | 4000×6000×2000mm | ±(7.0+7.0L/1000)μm | PH10M/SP25M |
| CMM-DM408020A | DM SERIES | 4000×8000×2000mm | ±(8.0+8.0L/1000)μm | PH10T/TP20 |
| CMM-DM408020B | DM SERIES | 4000×8000×2000mm | ±(7.0+7.0L/1000)μm | PH10M/SP25M |
| CMM-DM4010020A | DM SERIES | 4000×10000×2000mm | ±(8.0+8.0L/1000)μm | PH10T/TP20 |
| CMM-DM4010020B | DM SERIES | 4000×10000×2000mm | ±(7.0+7.0L/1000)μm | PH10M/SP25M |
| CMM-DM506020A | DM SERIES | 5000×6000×2000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM506020B | DM SERIES | 5000×6000×2000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM508020A | DM SERIES | 5000×8000×2000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM508020B | DM SERIES | 5000×8000×2000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM5010020A | DM SERIES | 5000×10000×2000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM5010020B | DM SERIES | 5000×10000×2000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM405030A | DM SERIES | 4000×5000×3000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM405030B | DM SERIES | 4000×5000×3000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM406030A | DM SERIES | 4000×6000×3000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM406030B | DM SERIES | 4000×6000×3000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM408030A | DM SERIES | 4000×8000×3000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM408030B | DM SERIES | 4000×8000×3000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM4010030A | DM SERIES | 4000×10000×3000mm | ±(10.0+10.0L/1000)μm | PH10T/TP20 |
| CMM-DM4010030B | DM SERIES | 4000×10000×3000mm | ±(9.0+9.0L/1000)μm | PH10M/SP25M |
| CMM-DM506030A | DM SERIES | 5000×6000×3000mm | ±(12.0+12.0L/1000)μm | PH10T/TP20 |
| CMM-DM506030B | DM SERIES | 5000×6000×3000mm | ±(11.0+11.0L/1000)μm | PH10M/SP25M |
| CMM-DM508030A | DM SERIES | 5000×8000×3000mm | ±(12.0+12.0L/1000)μm | PH10T/TP20 |
| CMM-DM508030B | DM SERIES | 5000×8000×3000mm | ±(11.0+11.0L/1000)μm | PH10M/SP25M |
| CMM-DM5010030A | DM SERIES | 5000×10000×3000mm | ±(12.0+12.0L/1000)μm | PH10T/TP20 |
| CMM-DM5010030B | DM SERIES | 5000×10000×3000mm | ±(11.0+11.0L/1000)μm | PH10M/SP25M |
