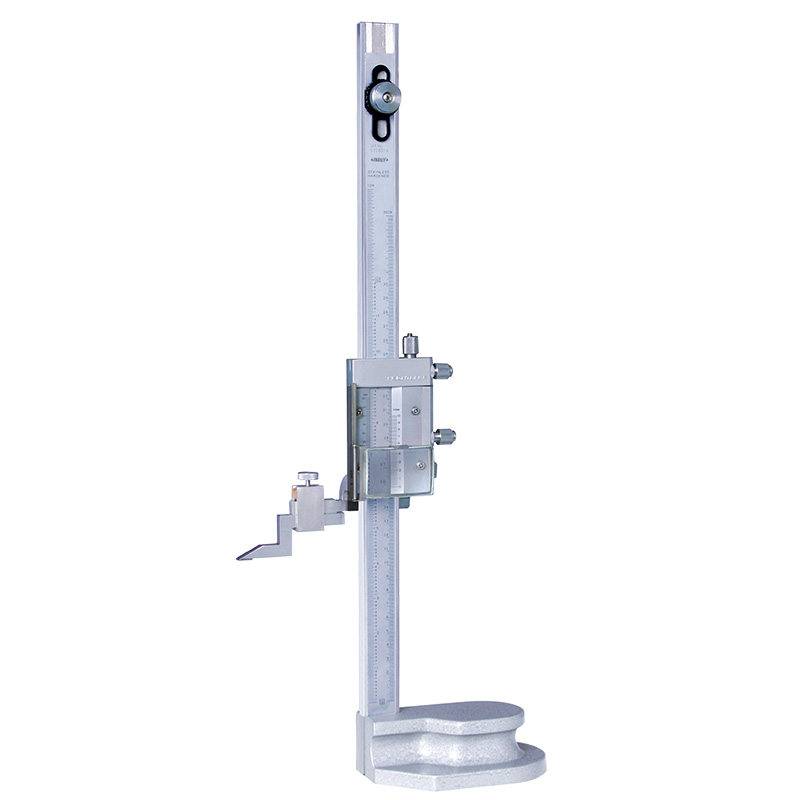

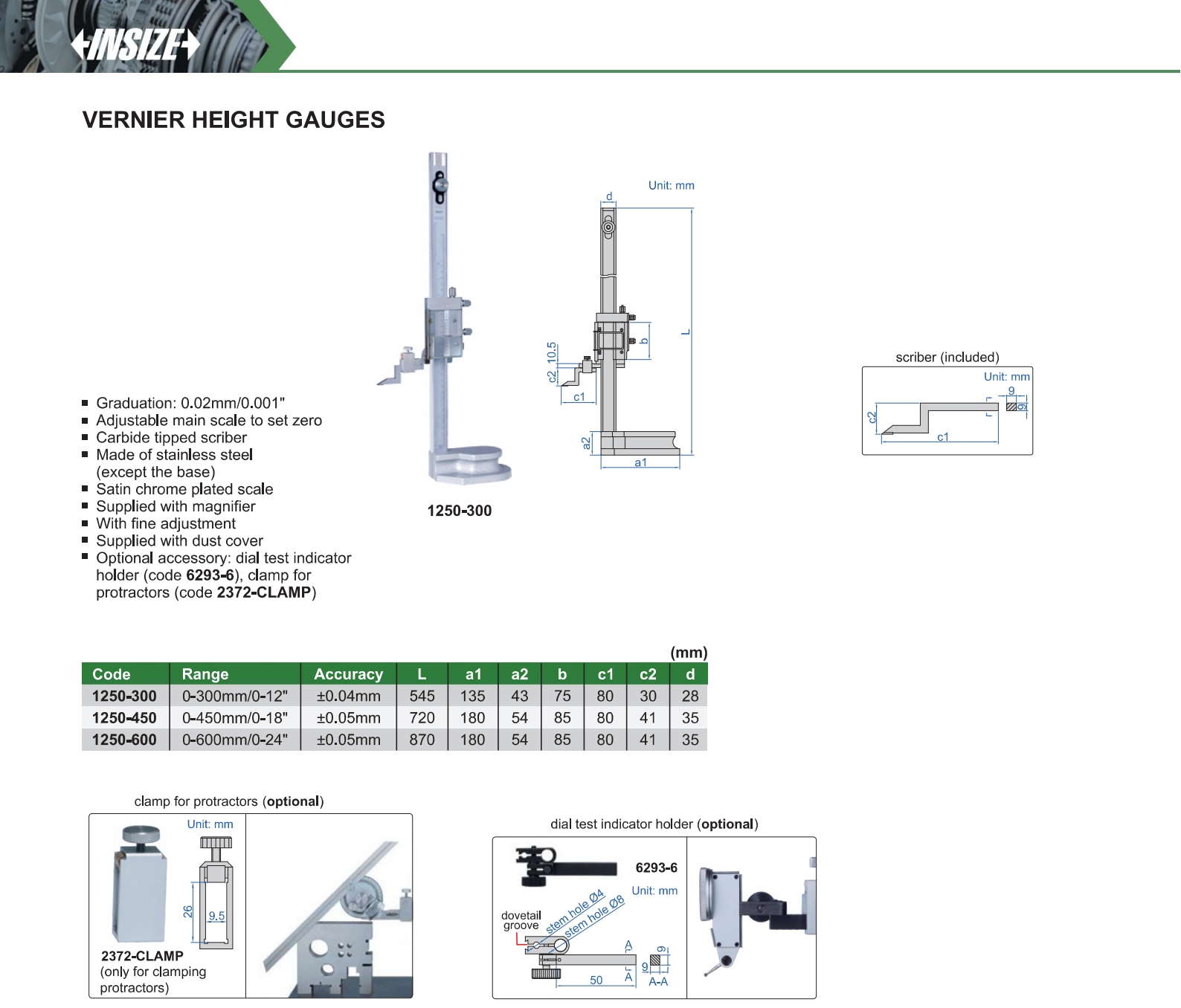

Vernier Height Gauges
Code: 1250
Adjustable main scale to set zero
Carbide tipped scriber
Made of stainless steel (except the base)
Satin chrome plated scale
Supplied with magnifier
With fine adjustment
Supplied with dust cover
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 1250-300 | 0-300mm/0-12" | ±0.04mm | 0.02mm/0.001" |
| 1250-450 | 0-450mm/0-18" | ±0.05mm | 0.02mm/0.001" |
| 1250-600 | 0-600mm/0-24" | ±0.05mm | 0.02mm/0.001" |
