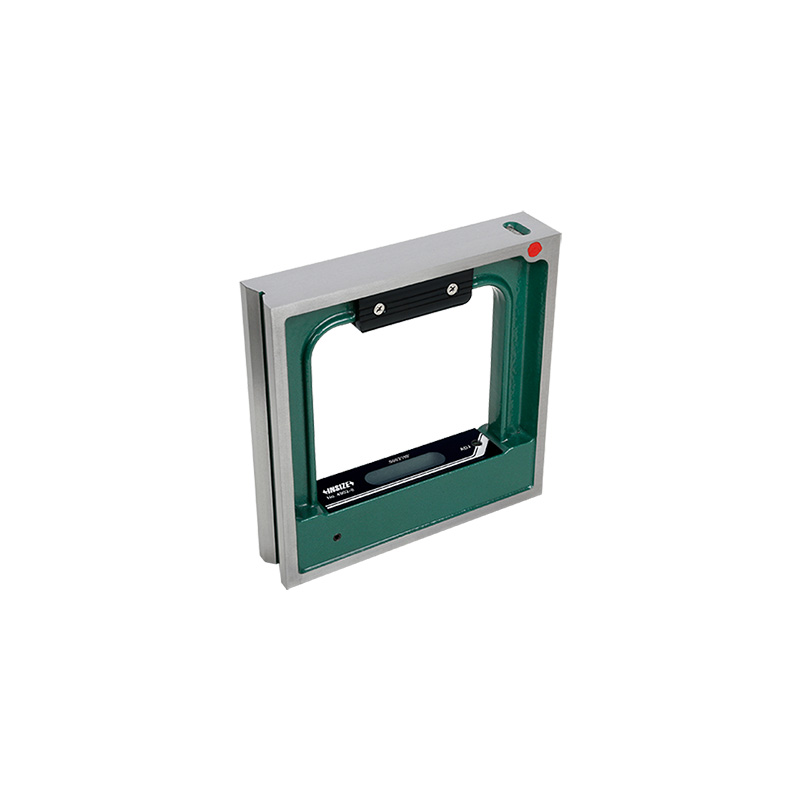

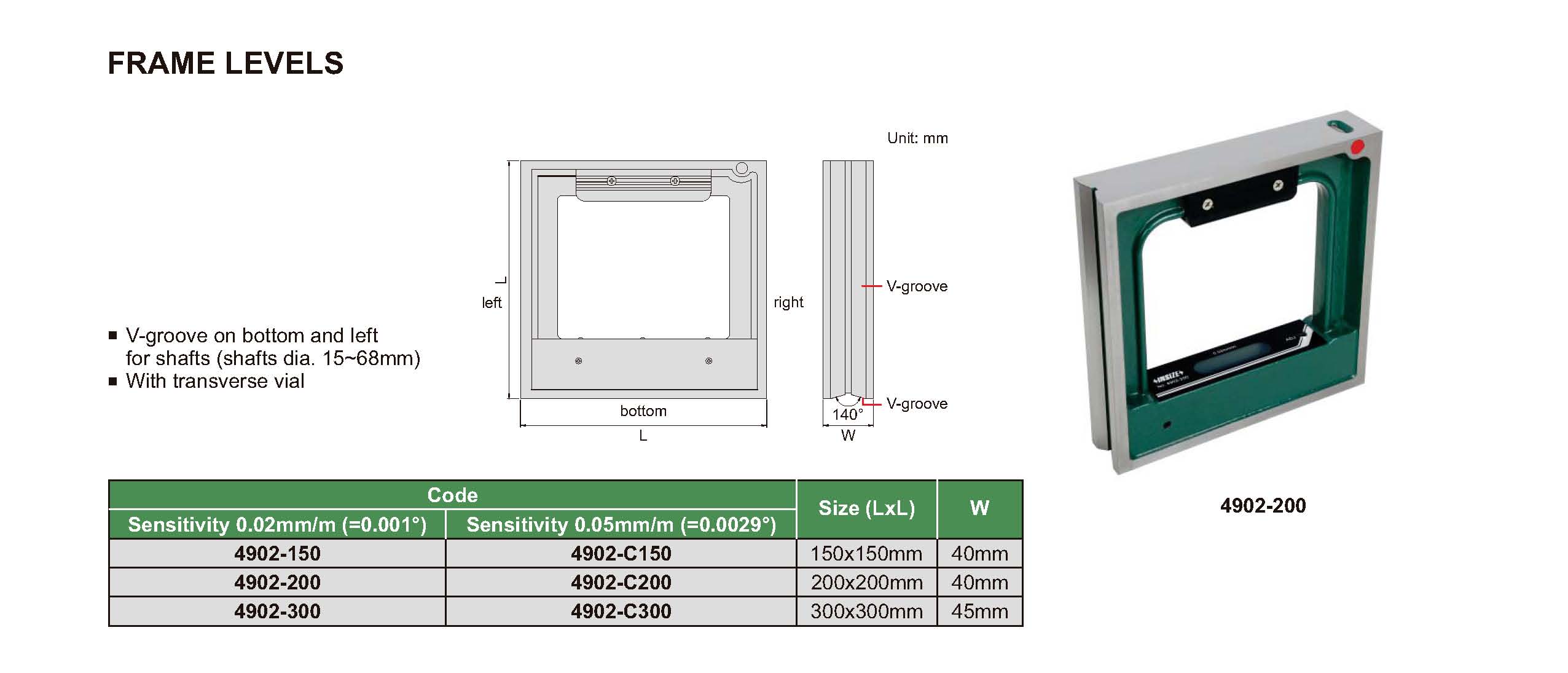

Frame Levels
Code: 4902
V-groove on bottom and left for shafts (shafts dia. 15~68mm)
With transverse vial
| Code | Size | Sensitivity |
|---|---|---|
| 4902-150 | 150x150mm | 0.02mm/m (=0.001°) |
| 4902-200 | 200x200mm | 0.02mm/m (=0.001°) |
| 4902-300 | 300x300mm | 0.02mm/m (=0.001°) |
| 4902-C150 | 150x150mm | 0.05mm/m (=0.0029°) |
| 4902-C200 | 200x200mm | 0.05mm/m (=0.0029°) |
| 4902-C300 | 300x300mm | 0.05mm/m (=0.0029°) |
