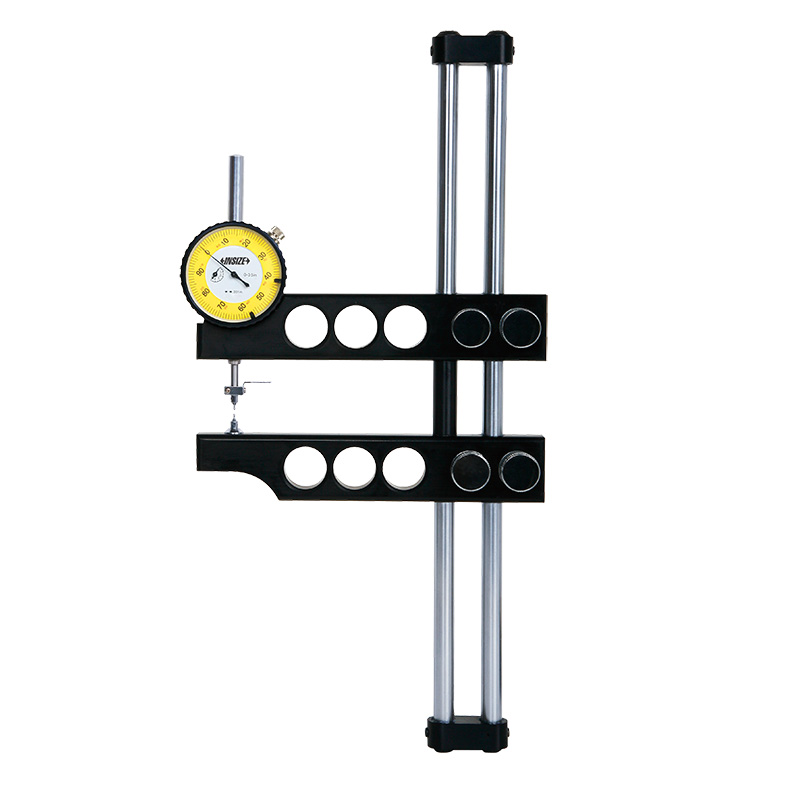

External Thread Taper Measuring Instruments
Code: 2230
Measure the taper of external thread
Dial indicator stroke: 0.5"
Dial indicator graduation: 0.001"
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2230-10 | 0-10"/0-254mm | 0.0015" | 0.001" |
| 2230-45 | 1-4 1/2"/25.4-114.3mm | 0.0015" | 0.001" |
| 2230-16 | 1-16"/25.4-406.4mm | 0.0015" | 0.001" |
| 2230-20 | 1-20"/25.4-508mm | 0.0015" | 0.001" |
