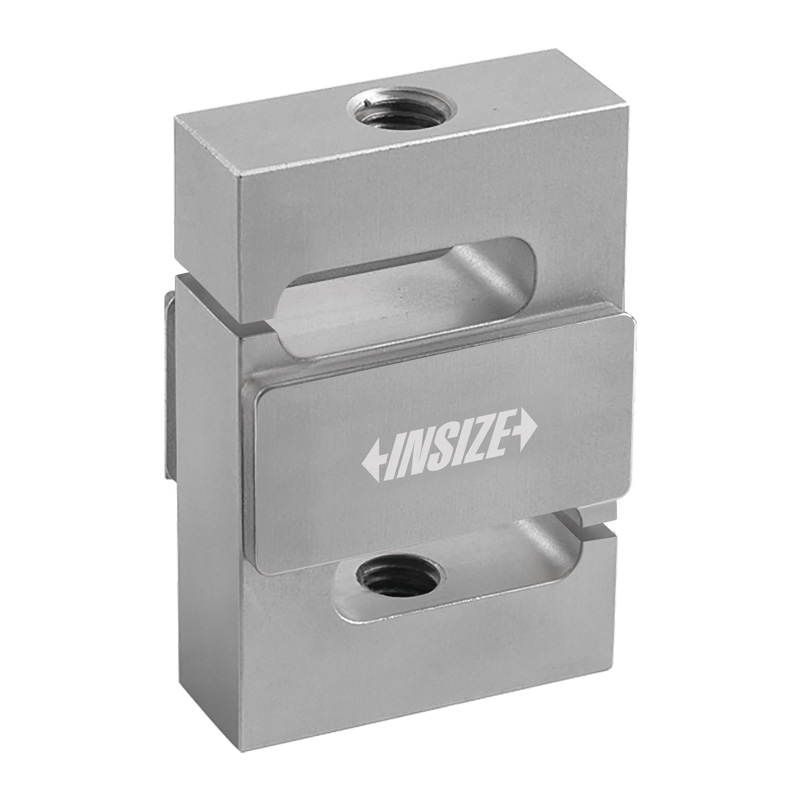

S-Type Force Sensors (Advanced Type)
Code: 8654
S-type structure
Easy and quick installation
Stable and reliable
Suitable for material testing machines, batching scales, electromechanical scales, packaging scales, belt scales, concrete plants and etc.
| Code | Type | Range |
|---|---|---|
| 8654-5A | sensor | 5kg/50N |
| 8654-10A | sensor | 10kg/100N |
| 8654-20A | sensor | 20kg/200N |
| 8654-30A | sensor | 30kg/300N |
| 8654-50A | sensor | 50kg/500N |
| 8654-100 | sensor | 100kg/1000N |
| 8654-200 | sensor | 200kg/2000N |
| 8654-250 | sensor | 250kg/2500N |
| 8654-500 | sensor | 500kg/5000N |
| 8654-750 | sensor | 750kg/7500N |
| 8654-1T | sensor | 1T/10kN |
| 8654-1D5T | sensor | 1.5T/15kN |
| 8654-2T | sensor | 2T/20kN |
| 8654-2D5T | sensor | 2.5T/25kN |
| 8654-5T | sensor | 5T/50kN |
| 8654-7D5T | sensor | 7.5T/75kN |
| 8654-10T | sensor | 10T/100kN |

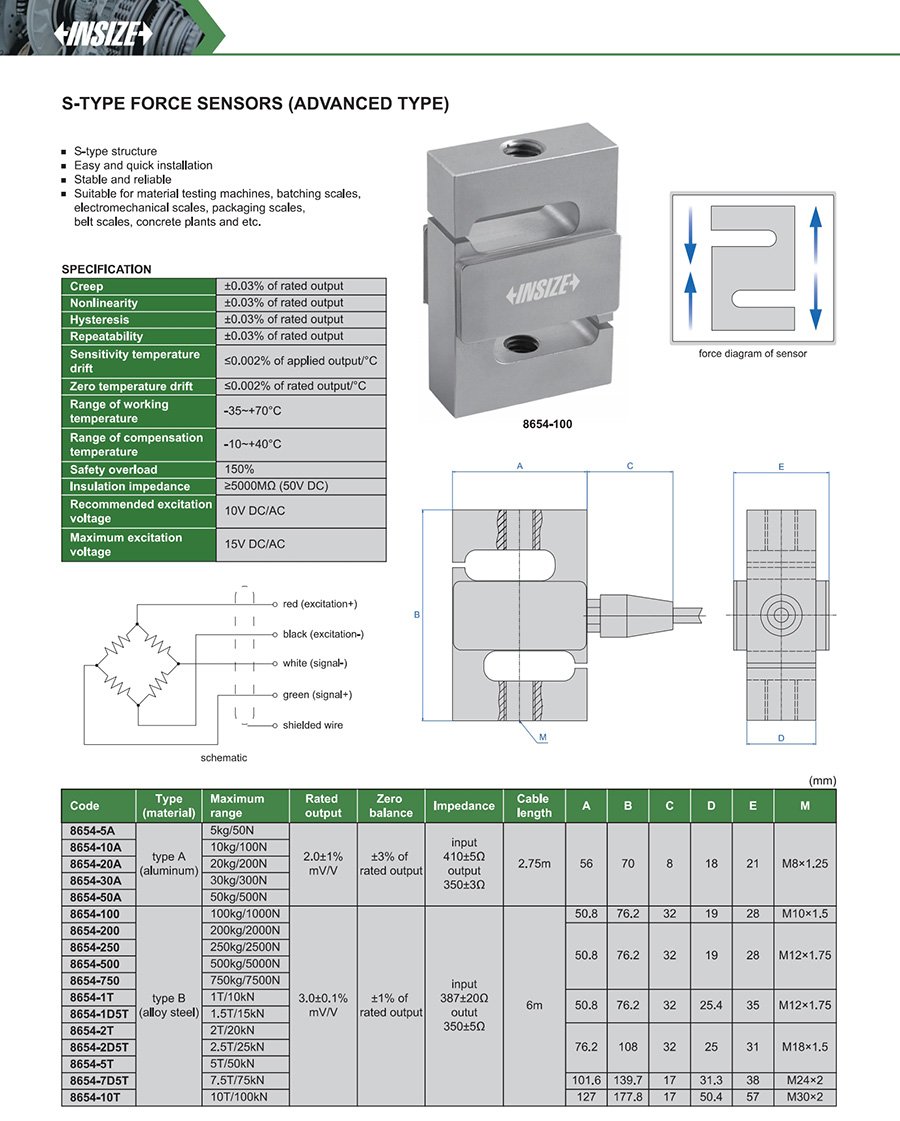

View the complete
