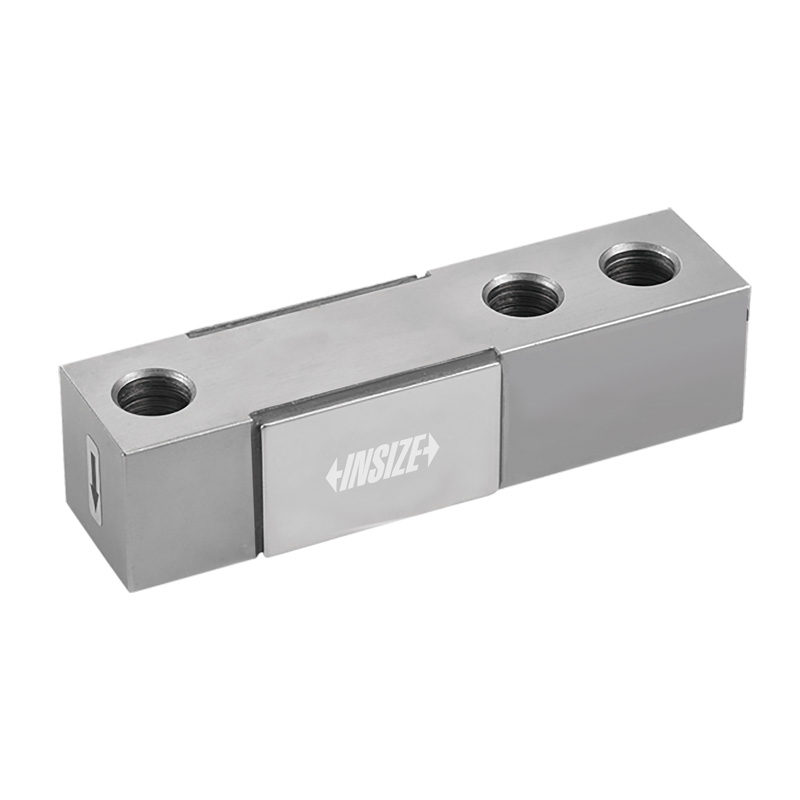

Single Cantilever Beam Force Sensors (Advanced Type)
Code: 8653
Cantilever beam structure
High precision and high stability
Easy and quick installation
Nickel-plated surface corrosion protection
Suitable for platform scales, concrete plants, belt scales, batching scales, force gauges and etc.
| Code | Type | Range |
|---|---|---|
| 8653-250L | sensor | 250lb/1000N |
| 8653-250K | sensor | 250kg/2500N |
| 8653-500K | sensor | 500kg/5000N |
| 8653-1T | sensor | 1T/10kN |
| 8653-1D5T | sensor | 1.5T/15kN |
| 8653-2T | sensor | 2T/20kN |
| 8653-2D5T | sensor | 2.5T/25kN |
| 8653-5T | sensor | 5T/50kN |
| 8653-7D5T | sensor | 7.5T/75kN |
| 8653-10T | sensor | 10T/100kN |
