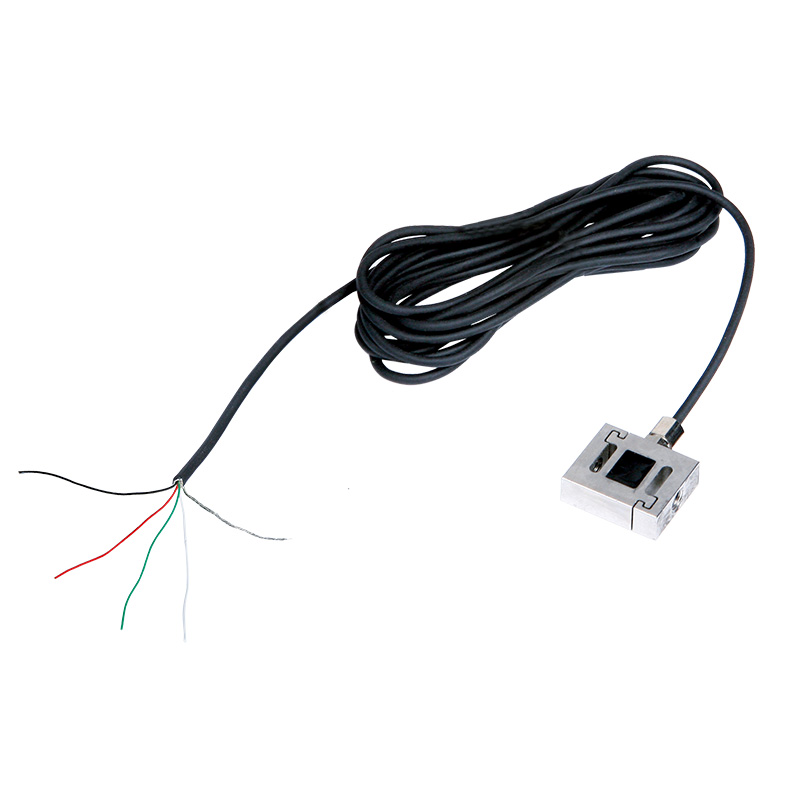

S-Type Tensile/Compression Sensors(Compact Type)
Code: 8651
Characteristic: bi-directional tension and compression, small size, high comprehensive precision, good long-term stability, nickel plating on the surface of stainless steel
Application fields: automotive press-fit, automatic assembly, 3C industry test, hand grip force for robot, keyboard feel test, etc.
| Code | Type | Range |
|---|---|---|
| 8651-5 | sensor | 5N/0.5kg |
| 8651-10 | sensor | 10N/1kg |
| 8651-20 | sensor | 20N/2kg |
| 8651-30 | sensor | 30N/3kg |
| 8651-50 | sensor | 50N/5kg |
| 8651-100 | sensor | 100N/10kg |
| 8651-200 | sensor | 200N/20kg |
| 8651-300 | sensor | 300N/30kg |
| 8651-500 | sensor | 500N/50kg |
| 8651-1000 | sensor | 1000N/100kg |
| 8651-2000 | sensor | 2000N/200kg |
