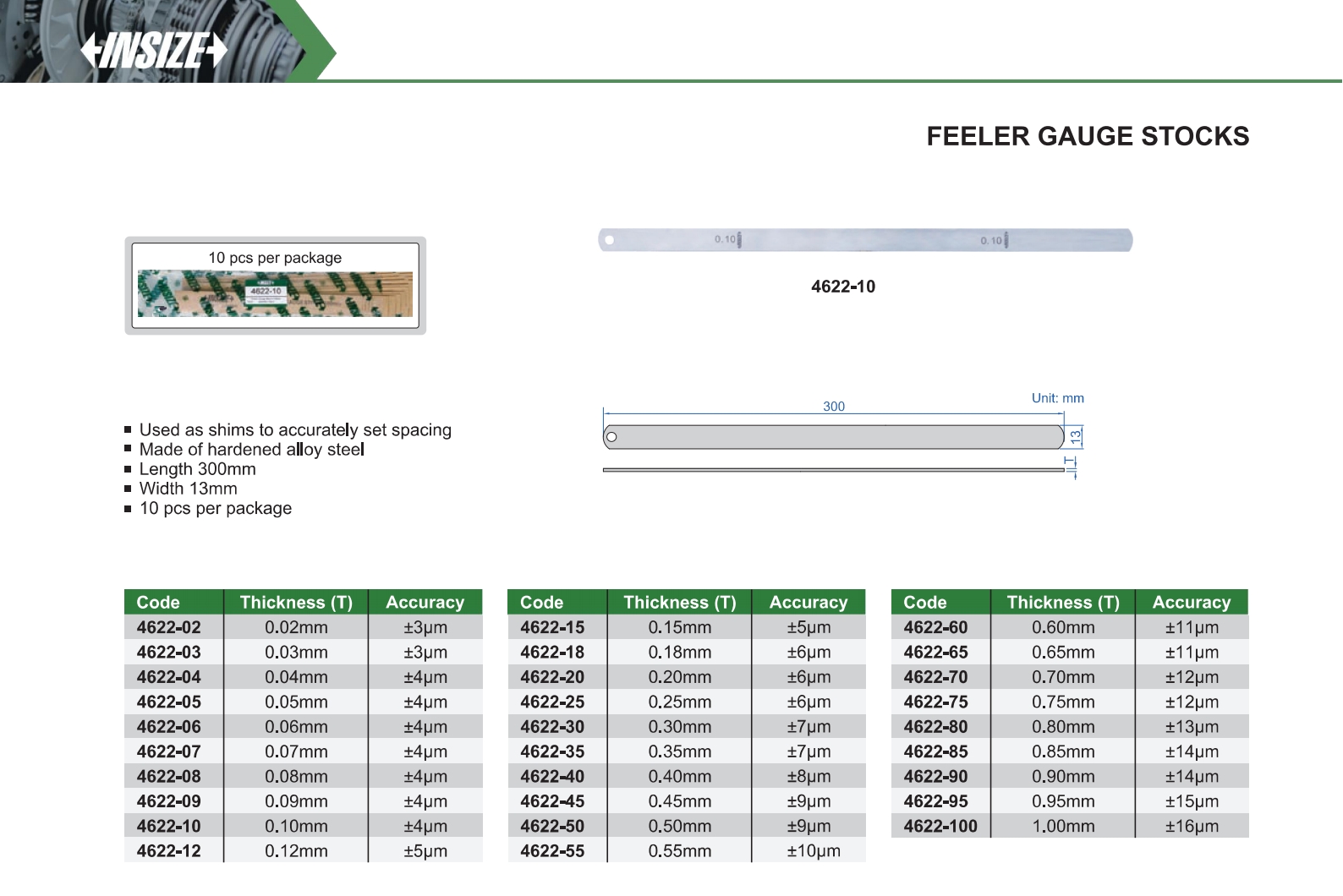

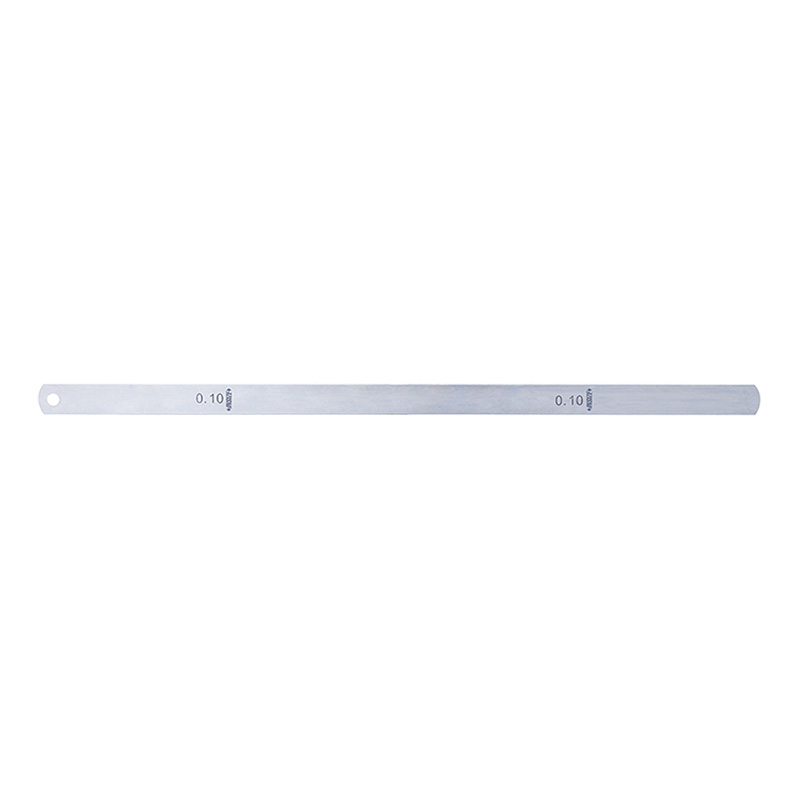

Feeler Gauge Stocks
Code: 4622
Used as shims to accurately set spacing
Made of hardened alloy steel
Length 300mm
Width 13mm
10 pcs per package
| Code | Accuracy | Thickness |
|---|---|---|
| 4622-02 | ±3µm | 0.02mm |
| 4622-03 | ±3µm | 0.03mm |
| 4622-04 | ±4µm | 0.04mm |
| 4622-05 | ±4µm | 0.05mm |
| 4622-06 | ±4µm | 0.06mm |
| 4622-07 | ±4µm | 0.07mm |
| 4622-08 | ±4µm | 0.08mm |
| 4622-09 | ±4µm | 0.09mm |
| 4622-10 | ±4µm | 0.10mm |
| 4622-12 | ±5µm | 0.12mm |
| 4622-15 | ±5µm | 0.15mm |
| 4622-18 | ±6µm | 0.18mm |
| 4622-20 | ±6µm | 0.20mm |
| 4622-25 | ±6µm | 0.25mm |
| 4622-30 | ±7µm | 0.30mm |
| 4622-35 | ±7µm | 0.35mm |
| 4622-40 | ±8µm | 0.40mm |
| 4622-45 | ±9µm | 0.45mm |
| 4622-50 | ±9µm | 0.50mm |
| 4622-55 | ±10µm | 0.55mm |
| 4622-60 | ±11µm | 0.60mm |
| 4622-65 | ±11µm | 0.65mm |
| 4622-70 | ±12µm | 0.70mm |
| 4622-75 | ±12µm | 0.75mm |
| 4622-80 | ±13µm | 0.80mm |
| 4622-85 | ±14µm | 0.85mm |
| 4622-90 | ±14µm | 0.90mm |
| 4622-95 | ±15µm | 0.95mm |
| 4622-100 | ±16µm | 1.00mm |
