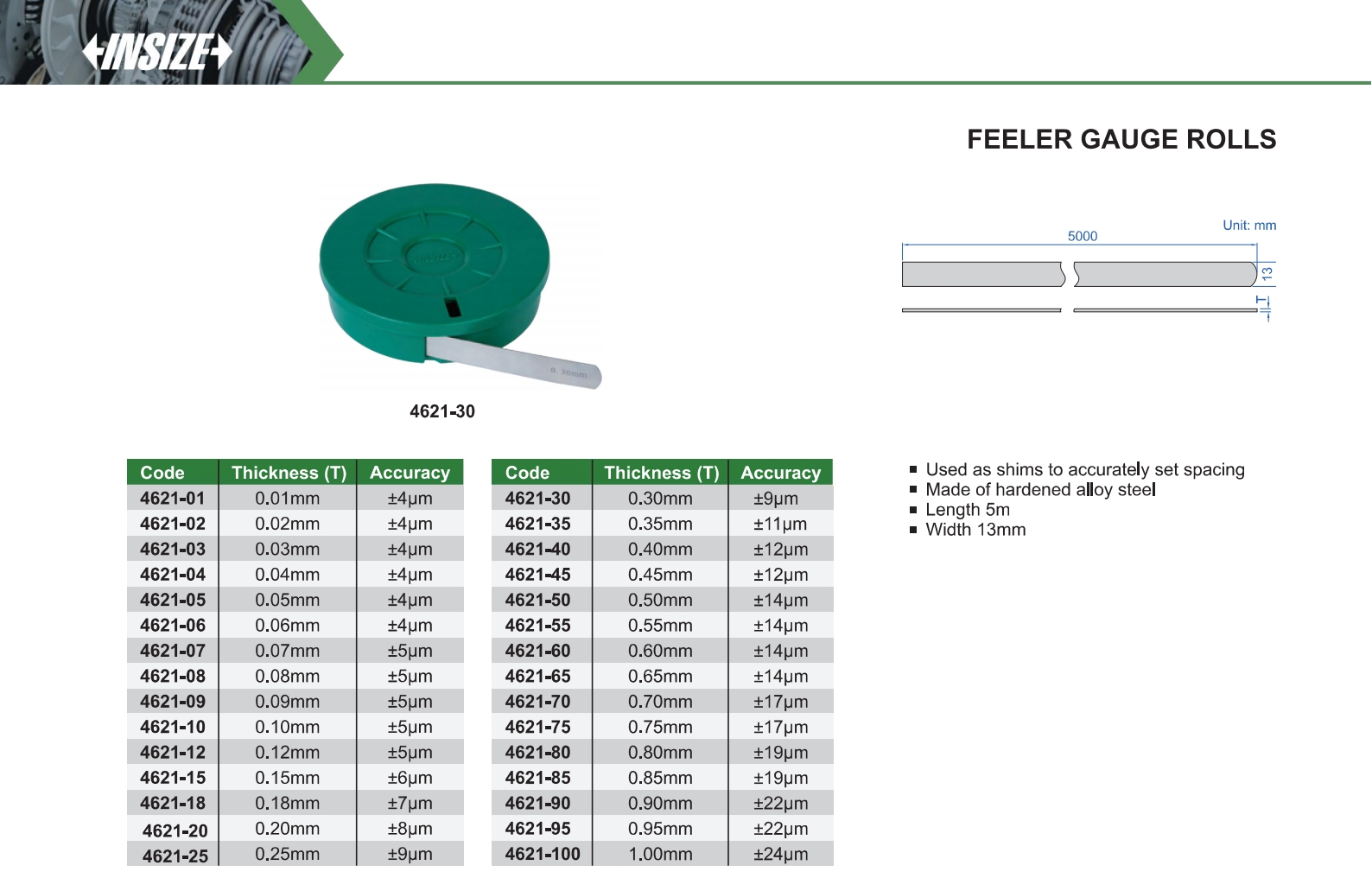

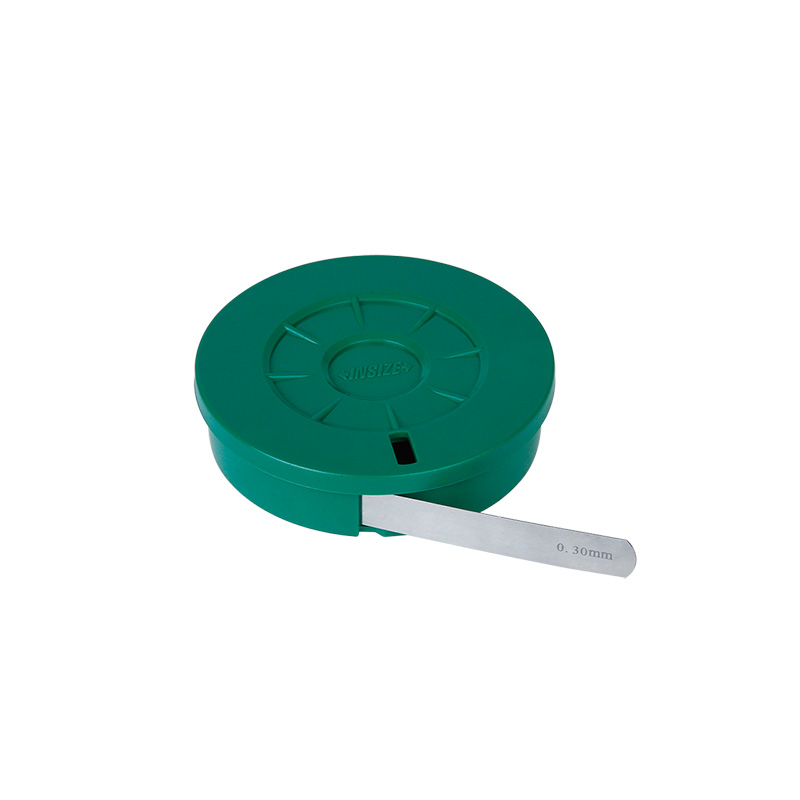

Feeler Gauge Rolls
Code: 4621
Used as shims to accurately set spacing
Made of hardened alloy steel
Length 5m
Width 13mm
| Code | Accuracy | Thickness |
|---|---|---|
| 4621-01 | ±4µm | 0.01mm |
| 4621-02 | ±4µm | 0.02mm |
| 4621-03 | ±4µm | 0.03mm |
| 4621-04 | ±4µm | 0.04mm |
| 4621-05 | ±4µm | 0.05mm |
| 4621-06 | ±4µm | 0.06mm |
| 4621-07 | ±5µm | 0.07mm |
| 4621-08 | ±5µm | 0.08mm |
| 4621-09 | ±5µm | 0.09mm |
| 4621-10 | ±5µm | 0.10mm |
| 4621-12 | ±5µm | 0.12mm |
| 4621-15 | ±6µm | 0.15mm |
| 4621-18 | ±7µm | 0.18mm |
| 4621-20 | ±8µm | 0.20mm |
| 4621-25 | ±9µm | 0.25mm |
| 4621-30 | ±9µm | 0.30mm |
| 4621-35 | ±11µm | 0.35mm |
| 4621-40 | ±12µm | 0.40mm |
| 4621-45 | ±12µm | 0.45mm |
| 4621-50 | ±14µm | 0.50mm |
| 4621-55 | ±14µm | 0.55mm |
| 4621-60 | ±14µm | 0.60mm |
| 4621-65 | ±14µm | 0.65mm |
| 4621-70 | ±17µm | 0.70mm |
| 4621-75 | ±17µm | 0.75mm |
| 4621-80 | ±19µm | 0.80mm |
| 4621-85 | ±19µm | 0.85mm |
| 4621-90 | ±22µm | 0.90mm |
| 4621-95 | ±22µm | 0.95mm |
| 4621-100 | ±24µm | 1.00mm |
