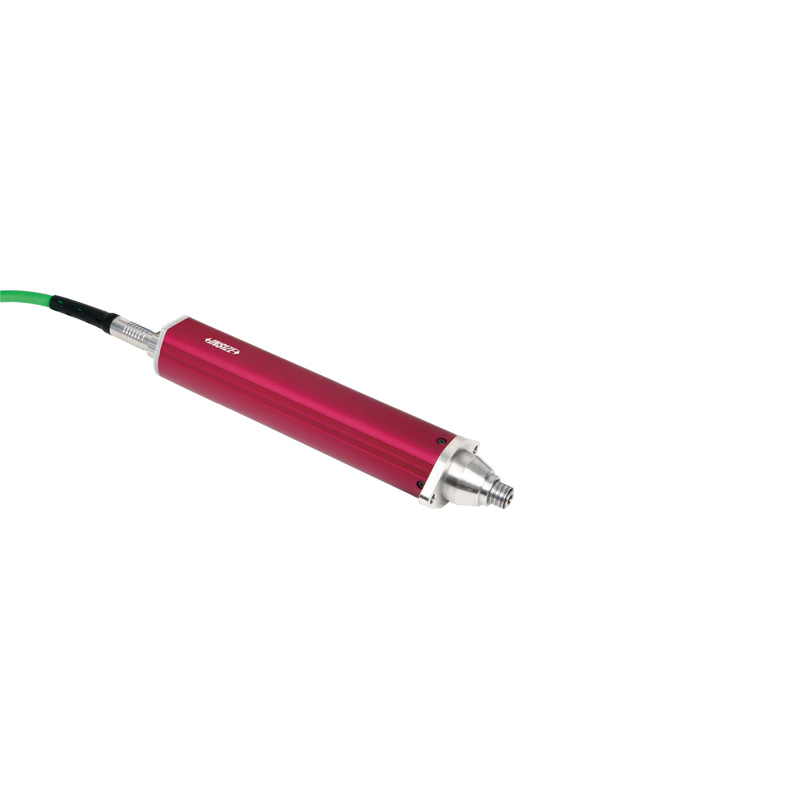

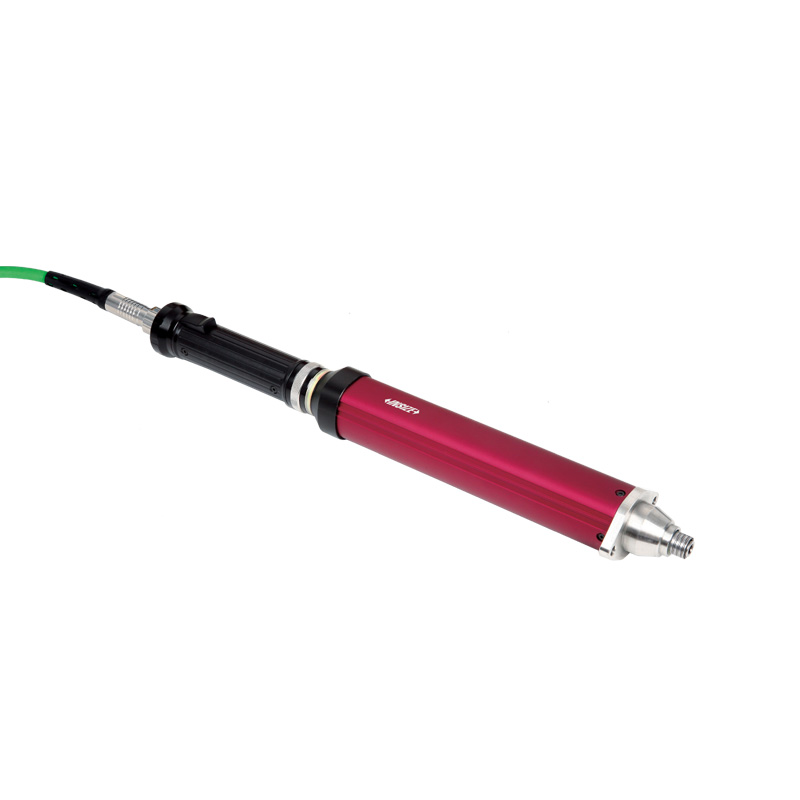

Intelligent Electric Tightening Wrenches (Current Control)
Code: HES-L Series
Highly efficient heat dissipation setting, low noise handling and long service life
90W permanent magnet synchronous servo motor and high-precision reducer power transmission mechanism
High-precision angle sensor (resolution 1°) and built-in servo drive
Provide precise control of torque, angle, speed and etc.
12 task modes, each task can be configured with 8 different parameters
| Code | Type | Range | Data transmission | Presentation Format of Values | Angle function |
|---|---|---|---|---|---|
| HES-L700A | Current control | 2.00~7.00N.m | With memory storage | Digital display | yes |
| HES-L120A | Current control | 4.00~12.0N.m | With memory storage | Digital display | yes |
| HES-L230A | Current control | 7.00~23.0N.m | With memory storage | Digital display | yes |
| HES-L420A | Current control | 12.0~42.0N.m | With memory storage | Digital display | yes |
| HES-L120B | Current control | 4.00~12.0N.m | With memory storage | Digital display | yes |
| HES-L230B | Current control | 7.00~23.0N.m | With memory storage | Digital display | yes |
| HES-L420B | Current control | 12.0~42.0N.m | With memory storage | Digital display | yes |
