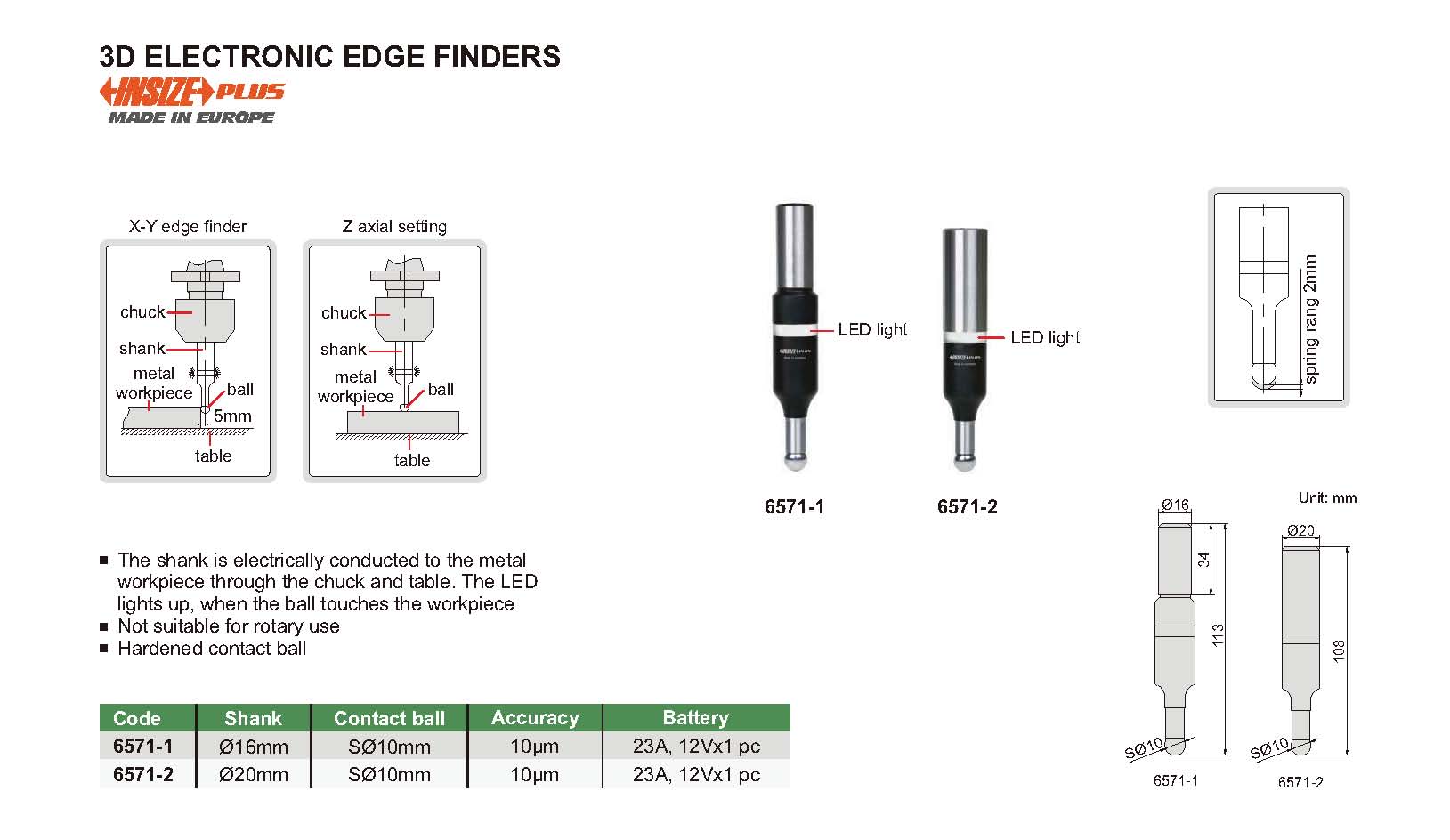

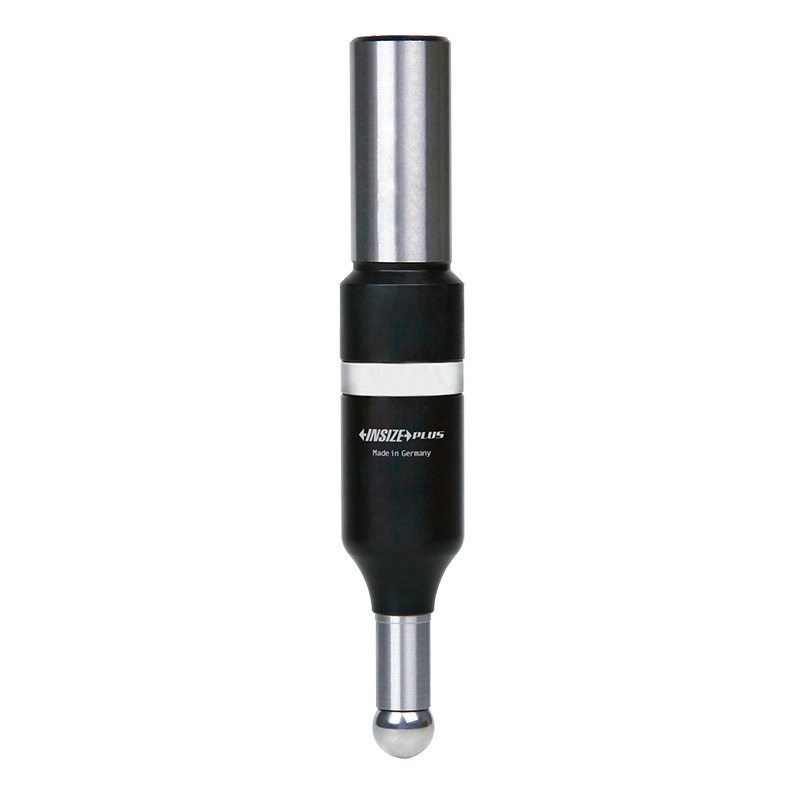

3D Electronic Edge Finders
Code: 6571
The shank is electrically conducted to the metal workpiece through the chuck and table. The LED lights up, when the ball touches the workpiece
Not suitable for rotary use
Hardened contact ball
| Code | Accuracy | Shank (A) | Contact ball (B) |
|---|---|---|---|
| 6571-1 | 10µm | Ø16mm | SØ10mm |
| 6571-2 | 10µm | Ø20mm | SØ10mm |
View the complete
product specifications
