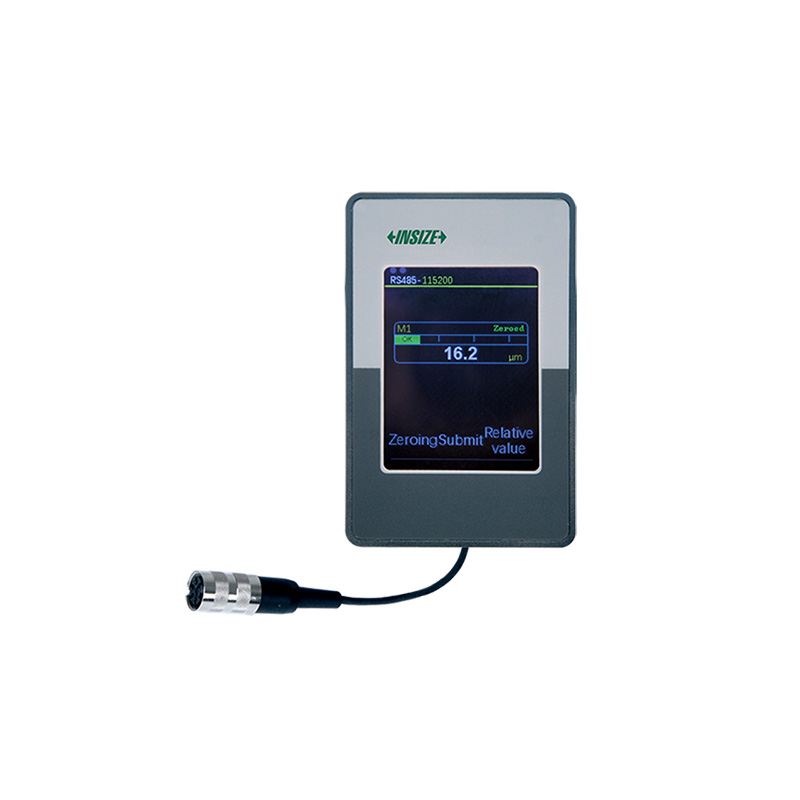

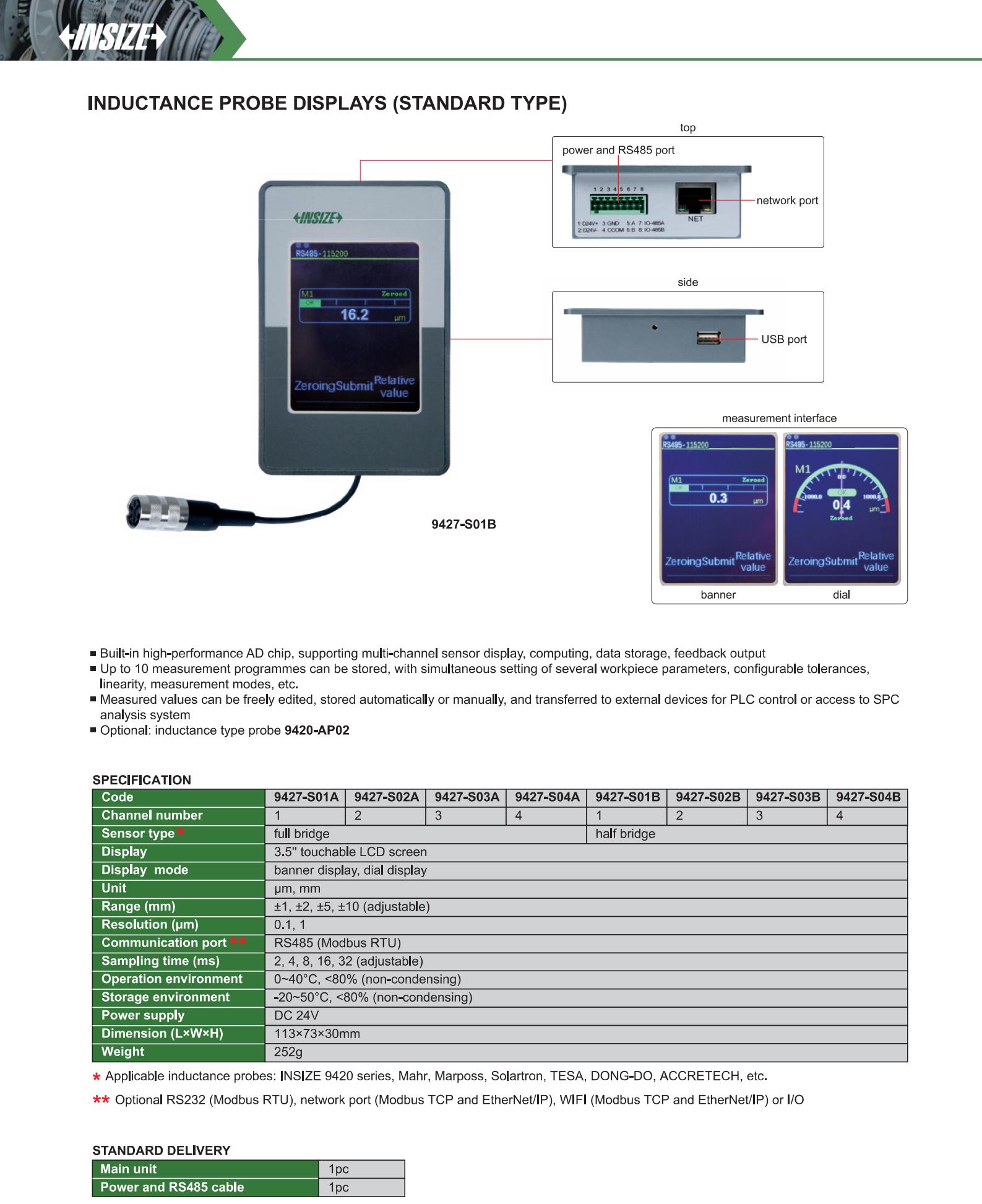

Inductance Probe Displays (Standard Type)
Code: 9427
Built-in high-performance AD chip, supporting multi-channel sensor display, computing, data storage, feedback output
Up to 10 measurement programmes can be stored, with simultaneous setting of several workpiece parameters, configurable tolerances, linearity, measurement modes, etc.
| Code | Type | Sensor type | Range | Resolution | Channel number |
|---|---|---|---|---|---|
| 9427-S01A | Inductance probe | full bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 1 |
| 9427-S02A | Inductance probe | full bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 2 |
| 9427-S03A | Inductance probe | full bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 3 |
| 9427-S04A | Inductance probe | full bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 4 |
| 9427-S01B | Inductance probe | half bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 1 |
| 9427-S02B | Inductance probe | half bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 2 |
| 9427-S03B | Inductance probe | half bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 3 |
| 9427-S04B | Inductance probe | half bridge | ±1, ±2, ±5, ±10mm (adjustable) | 0.1, 1µm | 4 |
View the complete
product specifications
