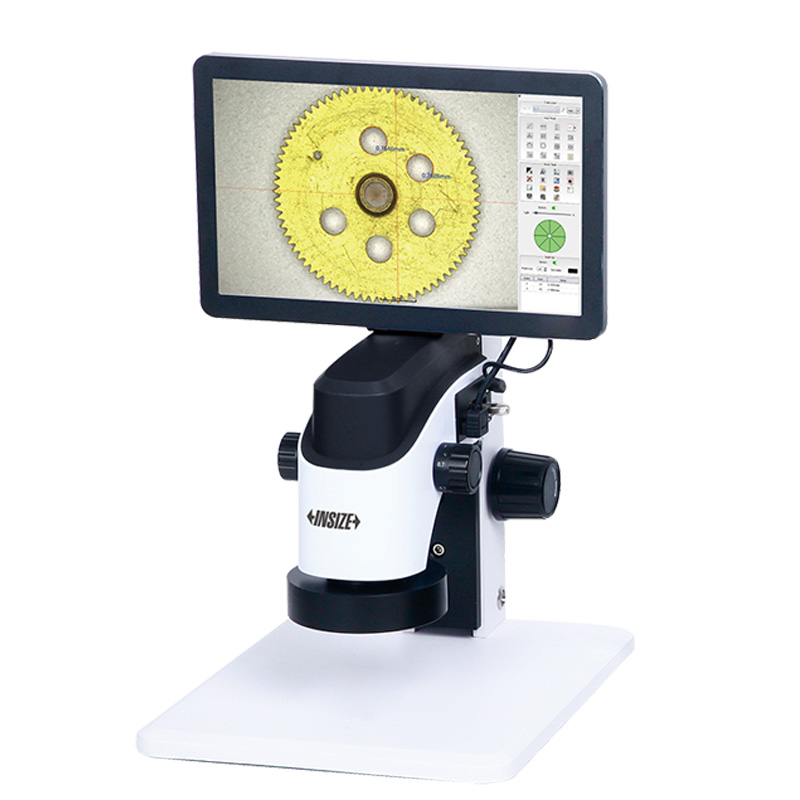

Large Depth Of View Digital Measuring Microscopes (Advanced Type)
Code: 5322
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
Send photos and measurement data via ethernet (TCP/IP)
Digital magnification
Can be connected to display and computer at the same time
Take pictures, save to USB flash disk
Measuring results can be sent to Excel
| Code | Type | Magnification | View field | Pixel |
|---|---|---|---|---|
| 5322-ID250A | digital measuring microscopes | 12~77X | 3.2×1.8~20.9×11.7mm | 2M |
| 5322-ID260A | digital measuring microscopes | 12~77X | 3.2×1.8~20.9×11.7mm | 2M |
| 5322-ID300A | digital measuring microscopes | 6~38X | 6.4×3.6~41.8×23.4mm | 2M |
