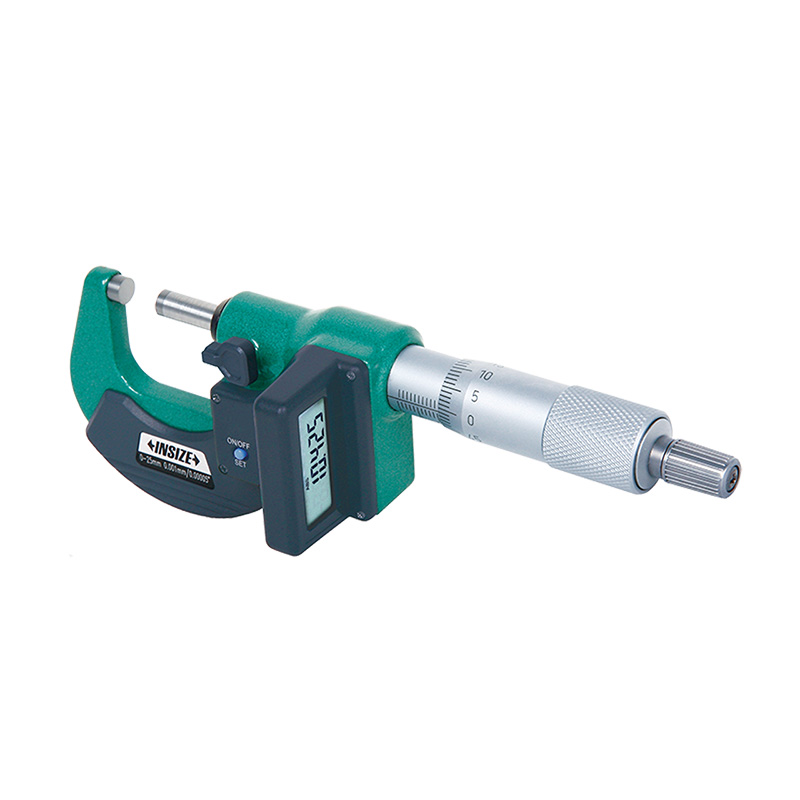

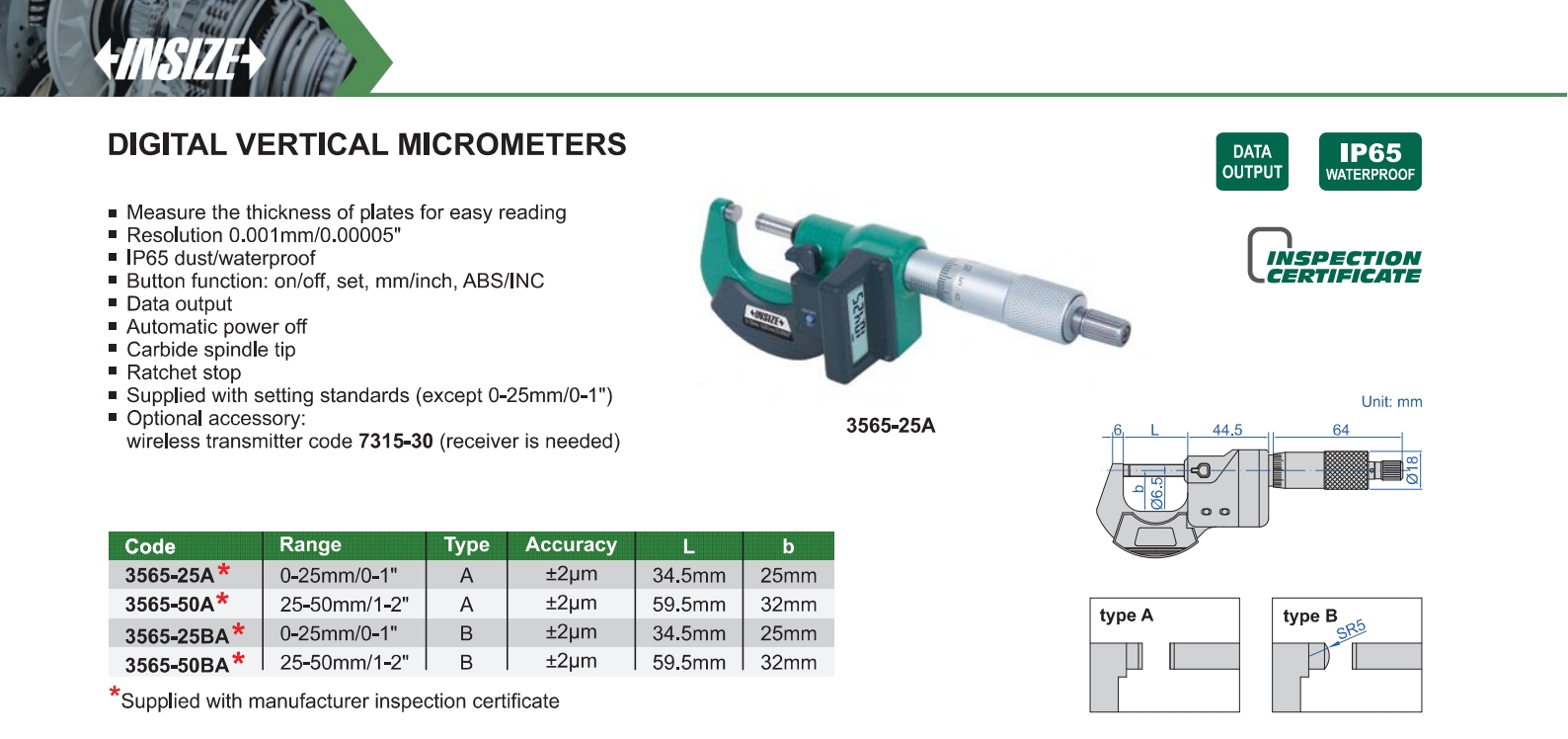

Digital Vertical Micrometers
Code: 3565
Measure the thickness of plates for easy reading
Button function: on/off, set, mm/inch, ABS/INC
Automatic power off
Carbide spindle tip
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 3565-25A | A | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 3565-50A | A | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" |
| 3565-25BA | B | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 3565-50BA | B | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" |
View the complete
product specifications
