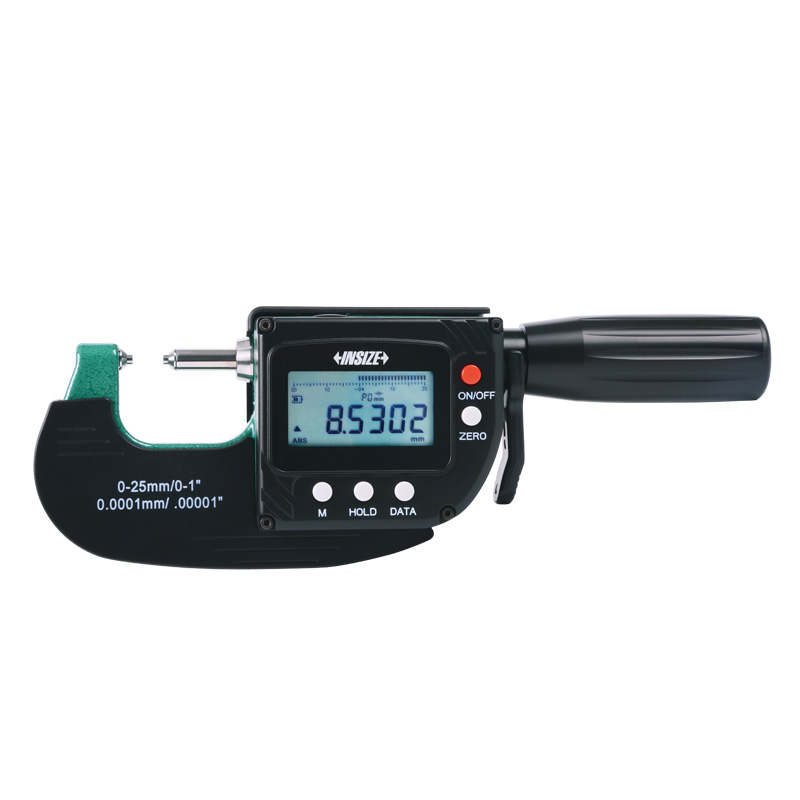

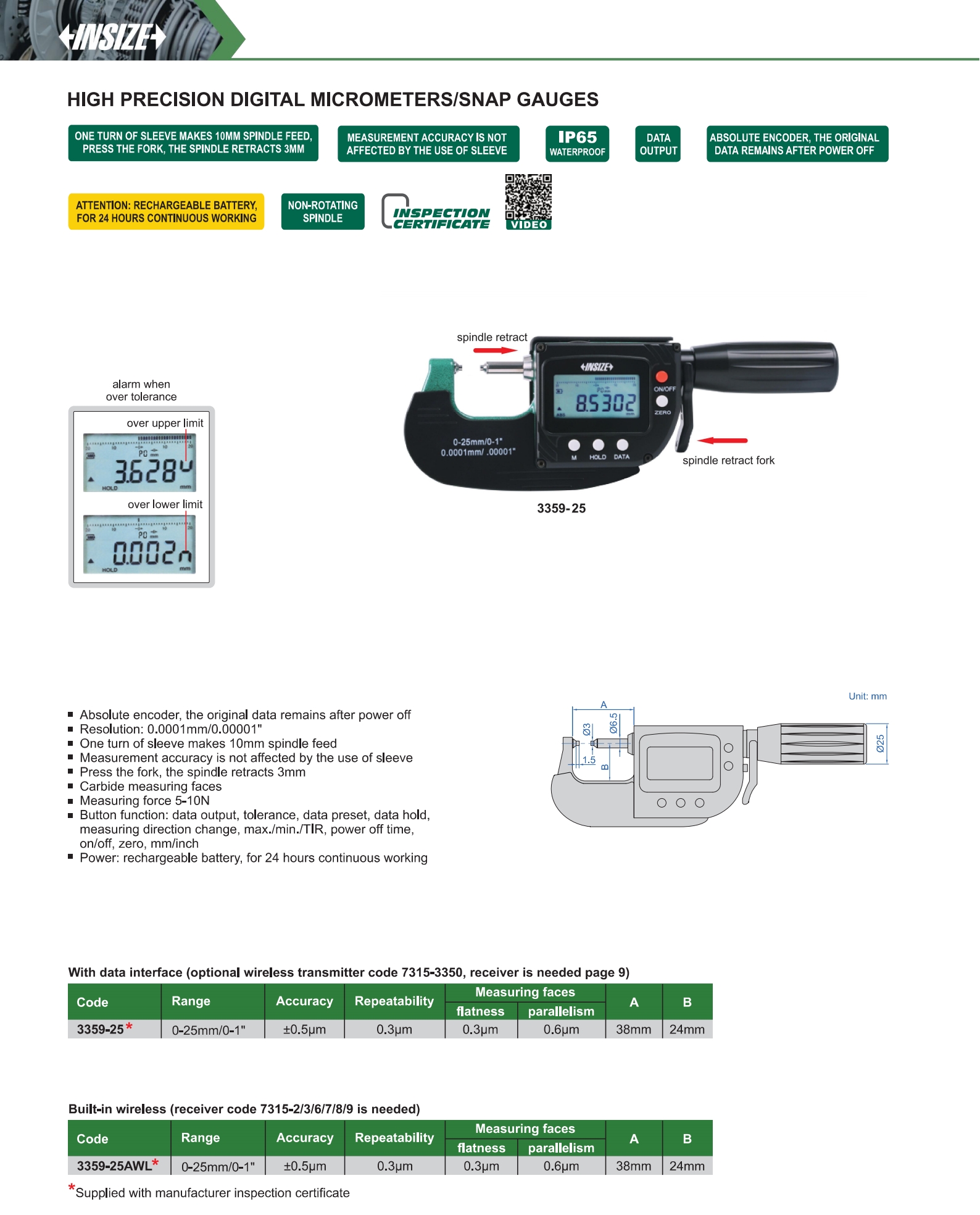

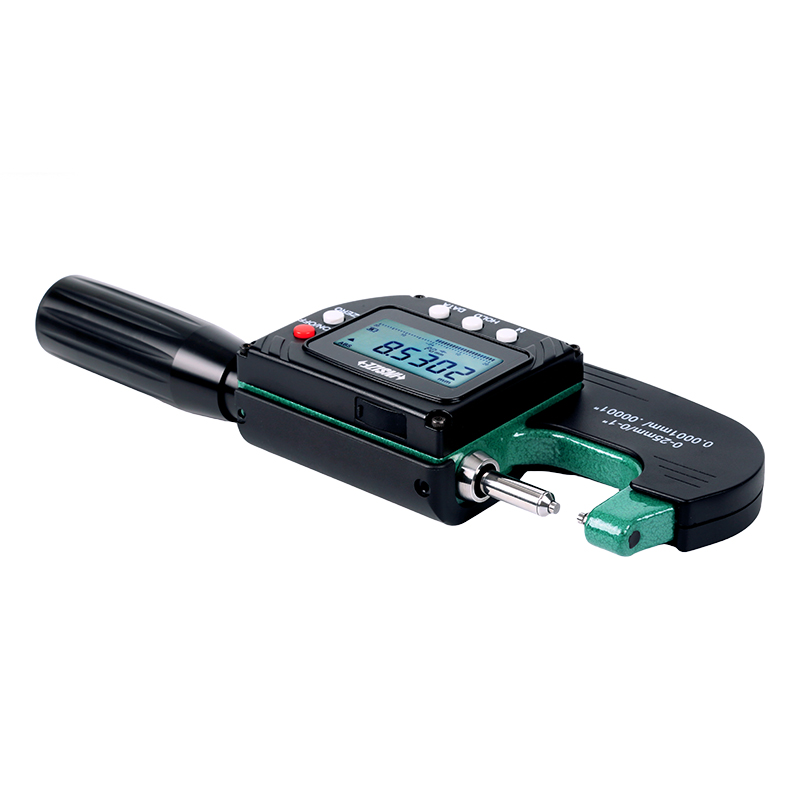

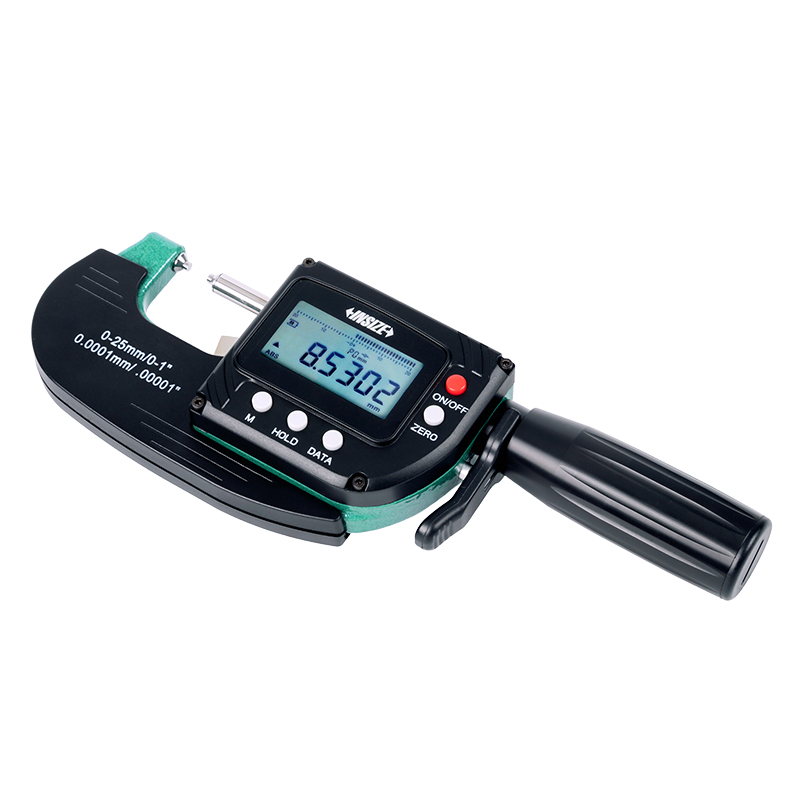

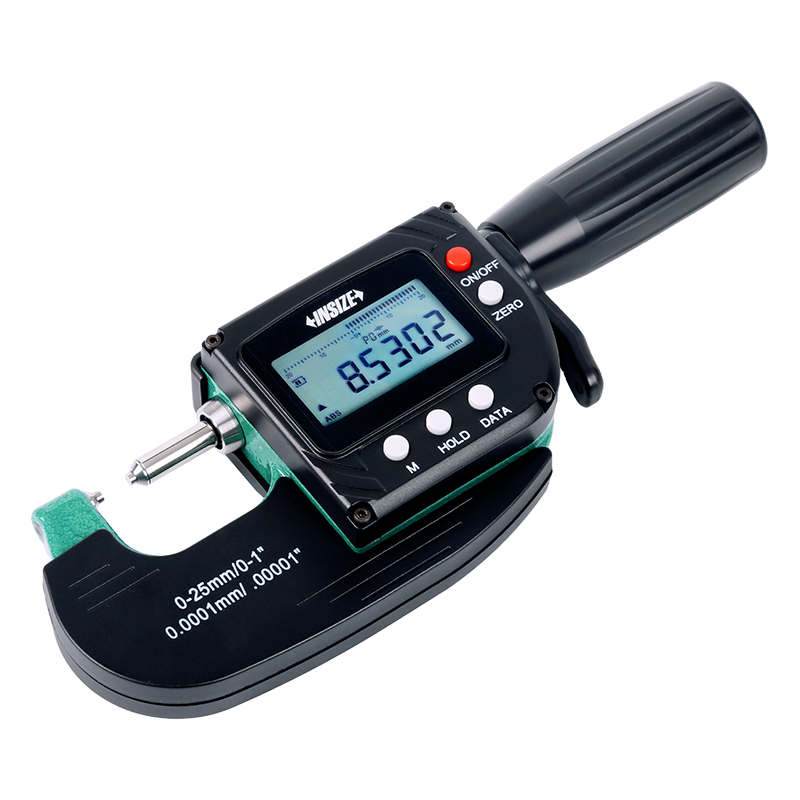

High Precision Digital Micrometers/Snap Gauges
Code: 3359
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Measurement accuracy is not affected by the use of sleeve
Press the fork, the spindle retracts 3mm
Carbide measuring faces
Measuring force 5-10N
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3359-25 | 0-25mm/0-1" | ±0.5µm | 0.0001mm/0.00001" | with data interface |
| 3359-25AWL | 0-25mm/0-1" | ±0.5µm | 0.0001mm/0.00001" | built-in wireless |
