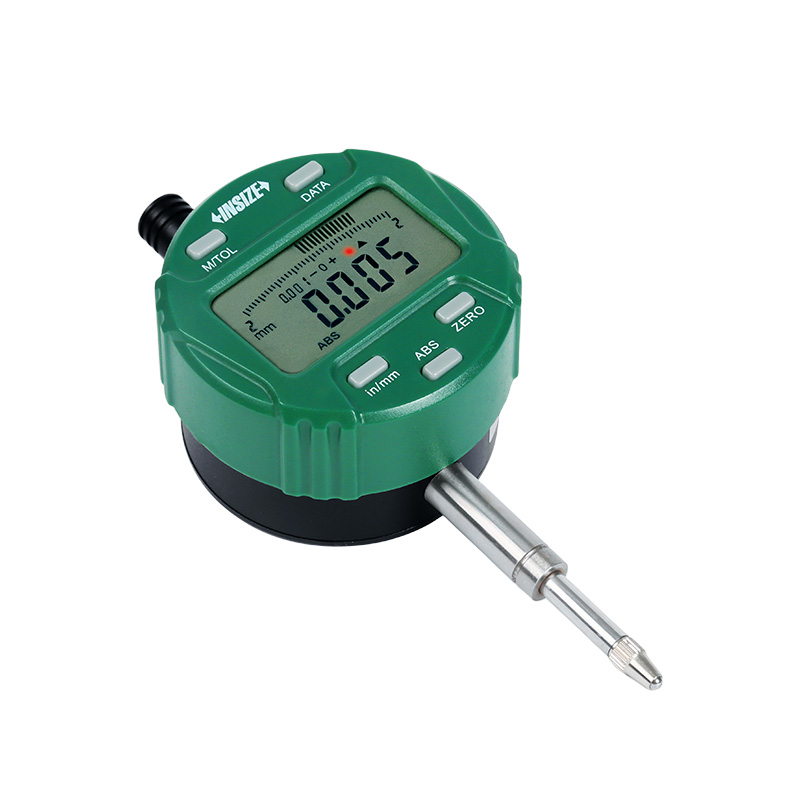

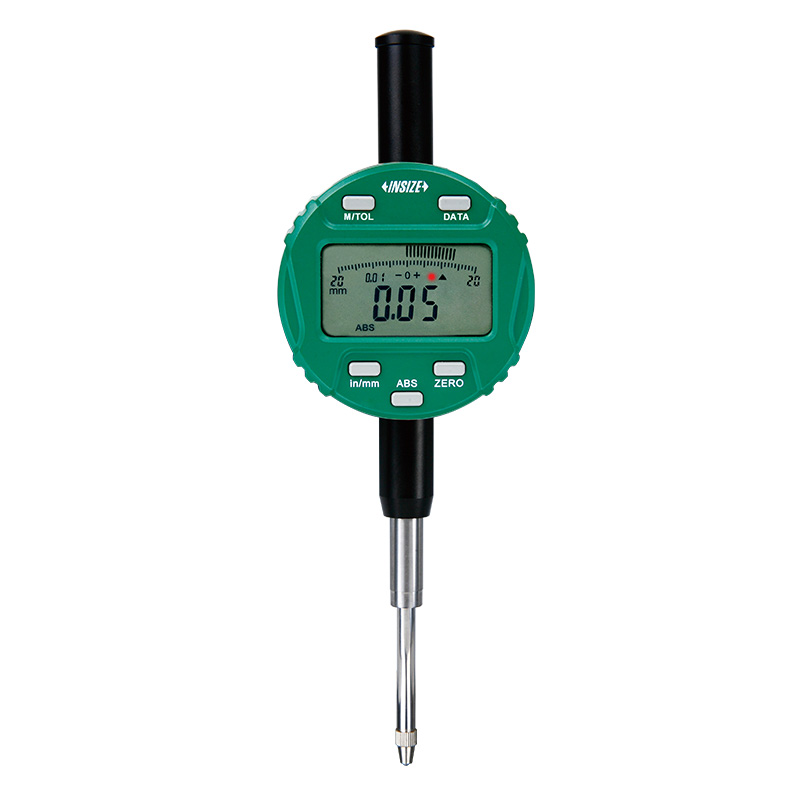

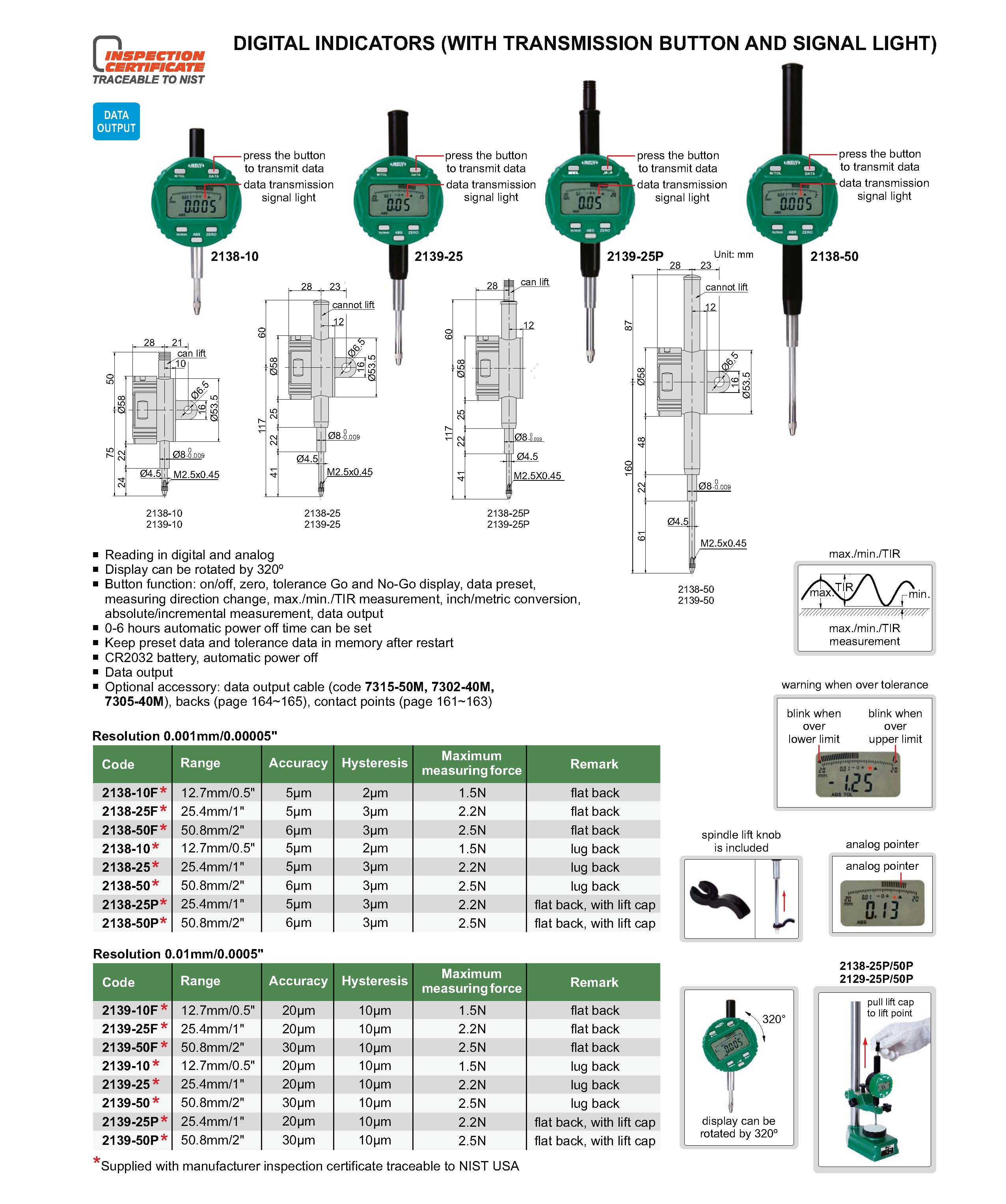

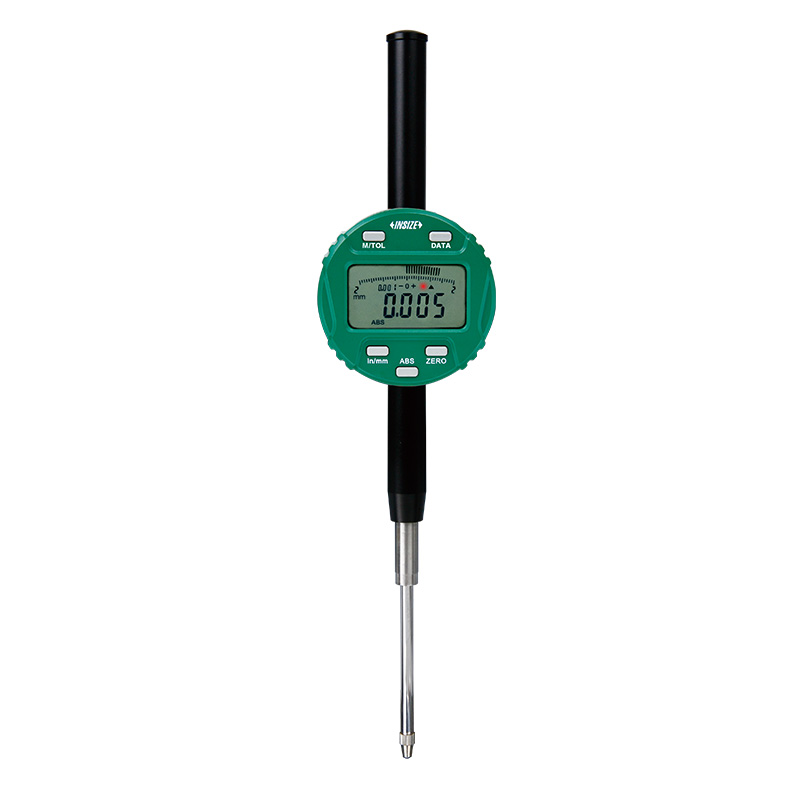

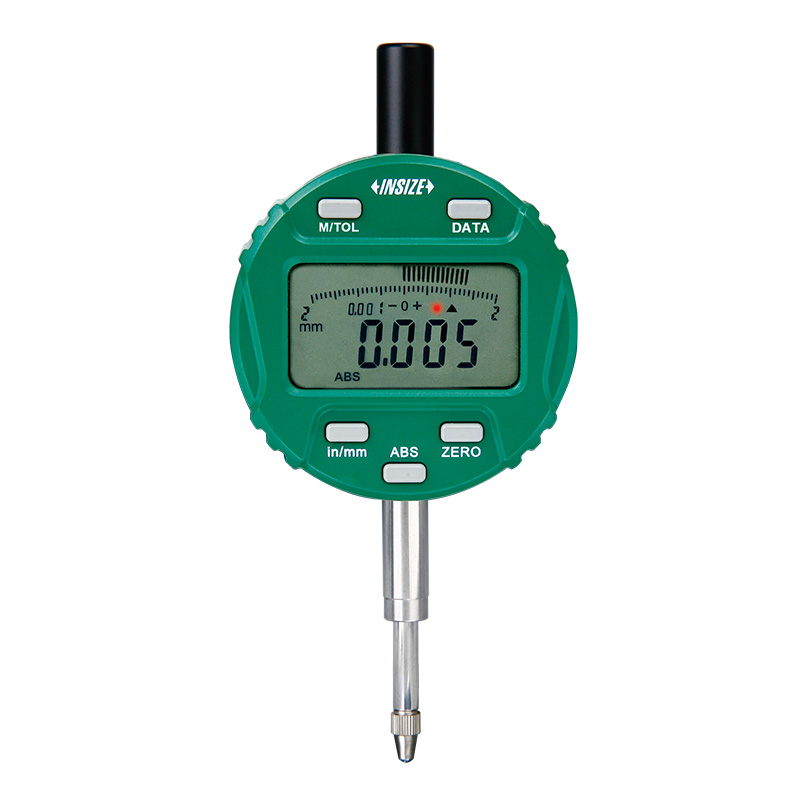

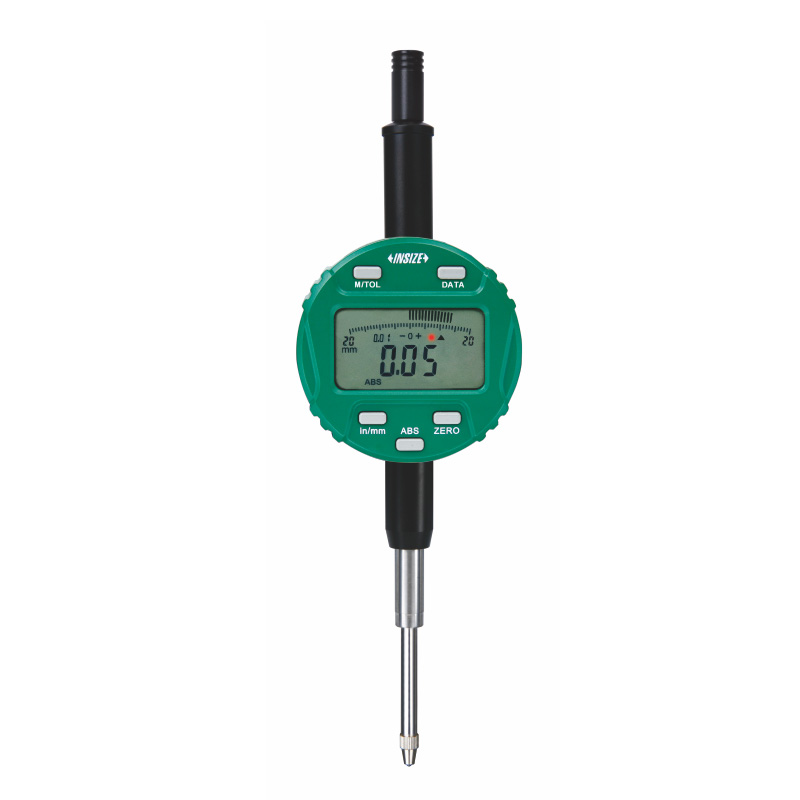

Digital Indicators (With Transmission Button And Signal Light)
Code: 2138/2139
Reading in digital and analog
Display can be rotated by 320º
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement, data output
Keep preset data and tolerance data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2138-10F | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2138-25F | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2138-50F | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2138-10 | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
| 2138-25 | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2138-50 | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2138-25P | 25.4mm/1" | 5µm | 0.001mm/0.00005" |
| 2138-50P | 50.8mm/2" | 6µm | 0.001mm/0.00005" |
| 2139-10F | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2139-25F | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2139-50F | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2139-10 | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2139-25 | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2139-50 | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
| 2139-25P | 25.4mm/1" | 20µm | 0.01mm/0.0005" |
| 2139-50P | 50.8mm/2" | 30µm | 0.01mm/0.0005" |
