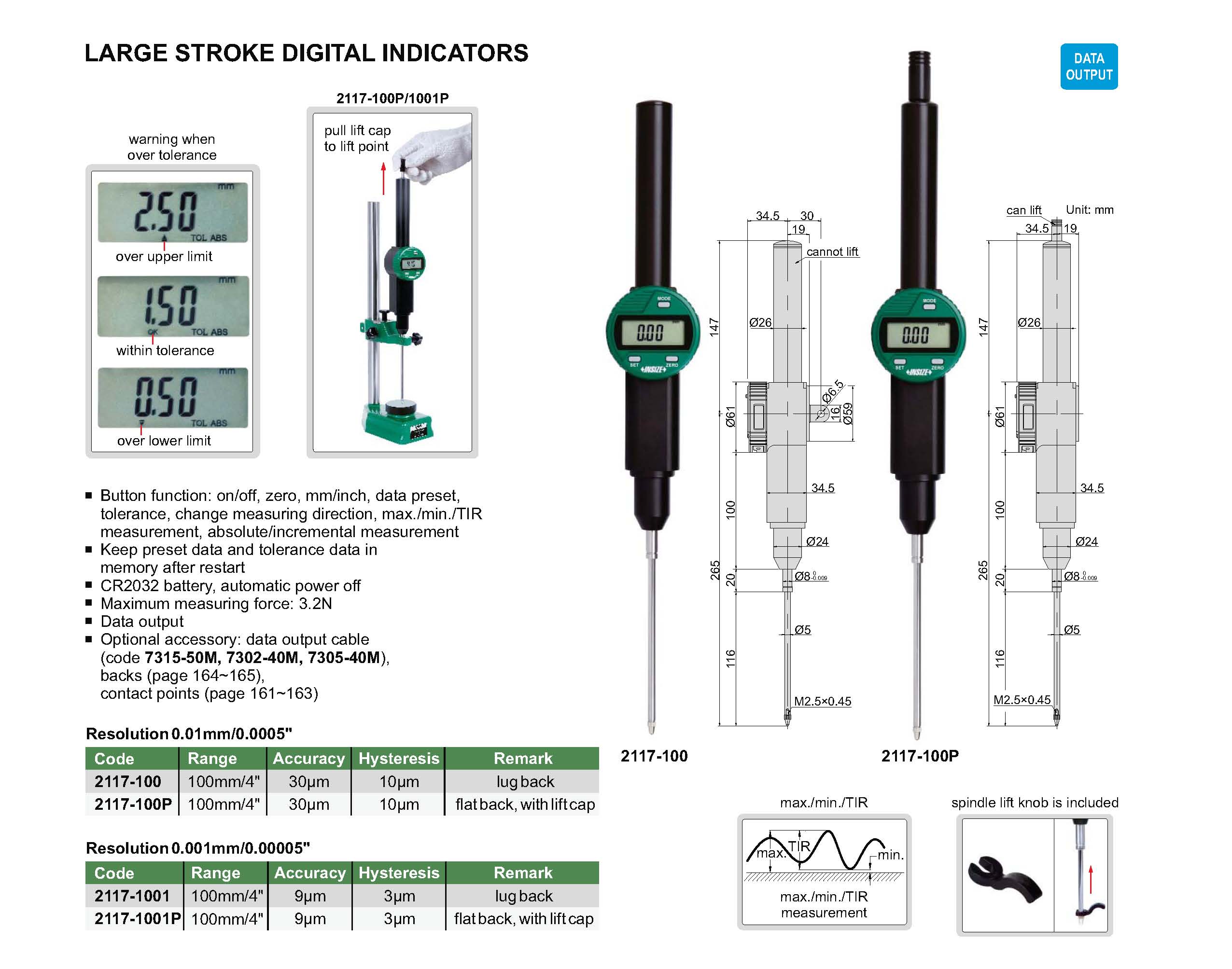

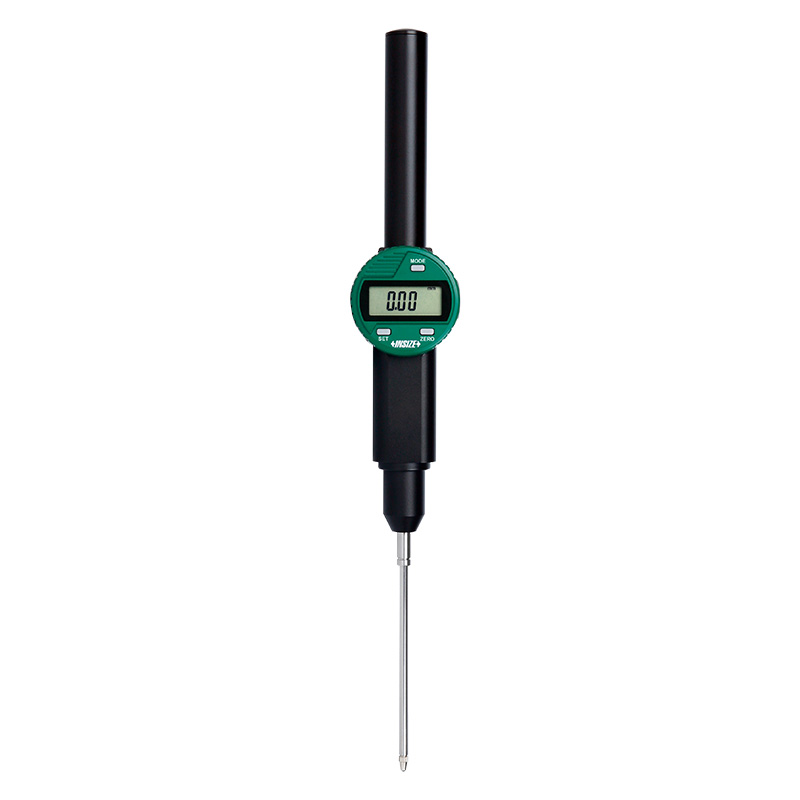

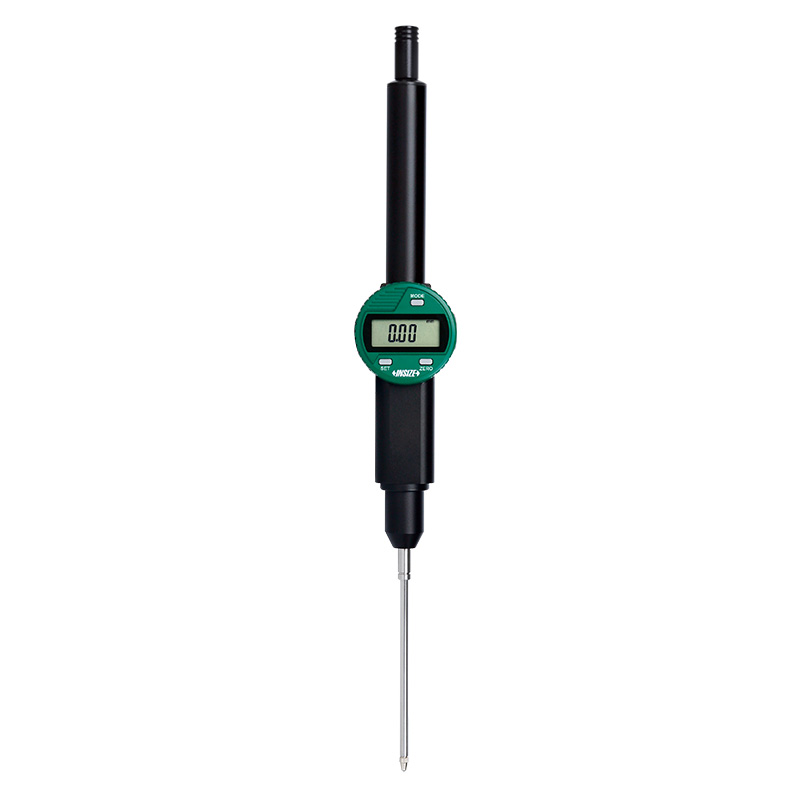

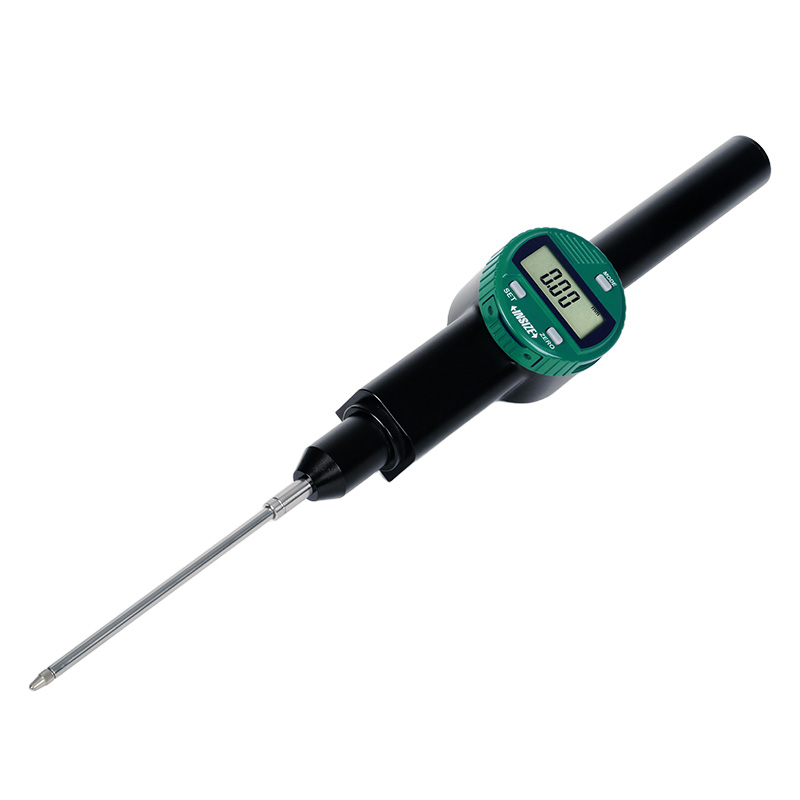

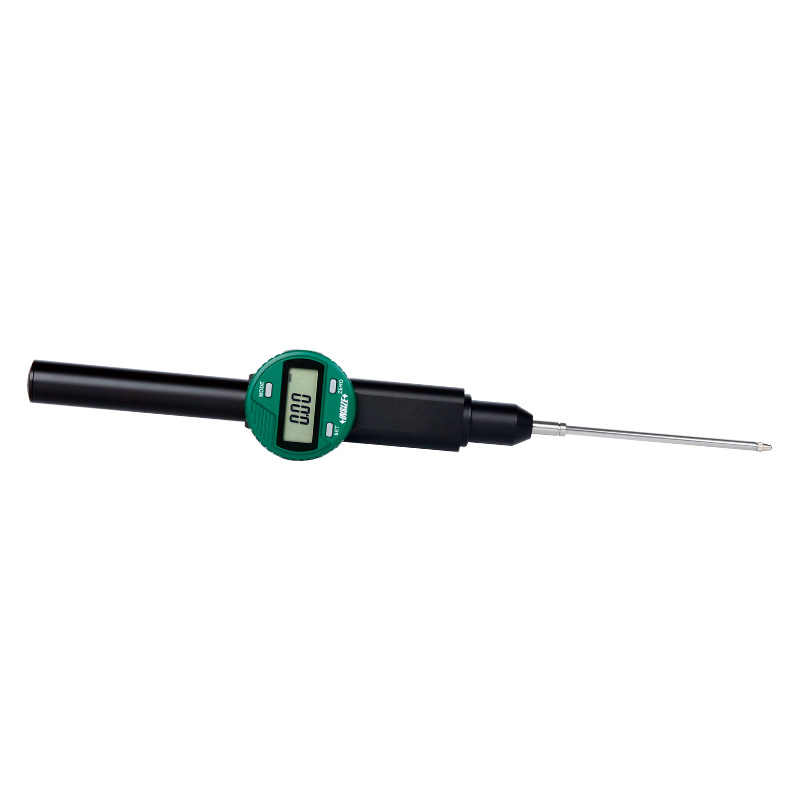

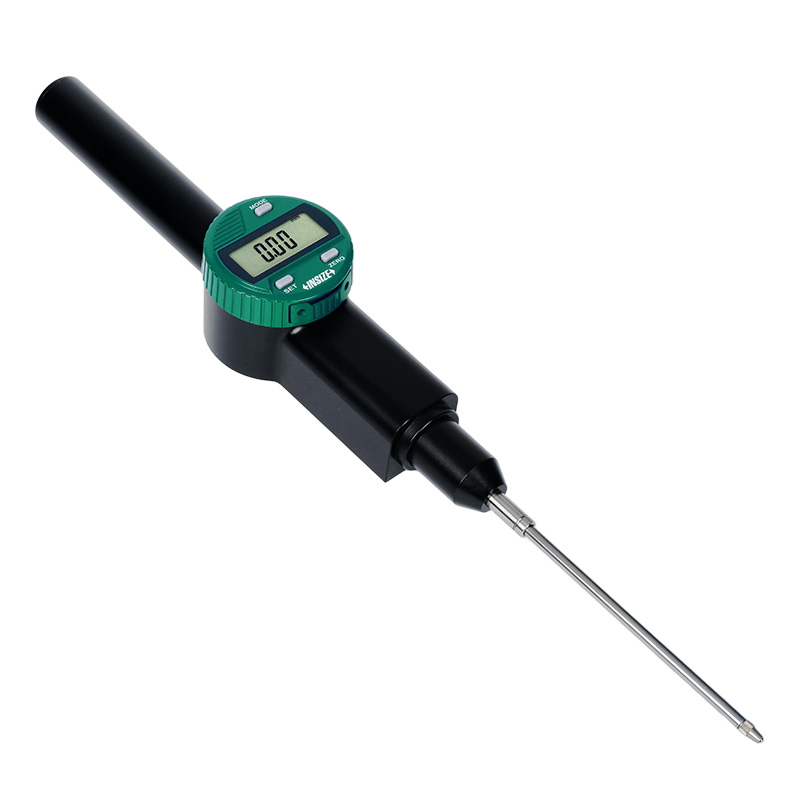

Large Stroke Digital Indicators
Code: 2117
Button function: on/off, zero, mm/inch, data preset, tolerance, change measuring direction, max./min./TIR measurement, absolute/incremental measurement
Keep preset data and tolerance data in memory after restart
CR2032 battery, automatic power off
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2117-100 | 100mm/4" | 30µm | 0.01mm/0.0005" |
| 2117-100P | 100mm/4" | 30µm | 0.01mm/0.0005" |
| 2117-1001 | 100mm/4" | 9µm | 0.001mm/0.00005" |
| 2117-1001P | 100mm/4" | 9µm | 0.001mm/0.00005" |
