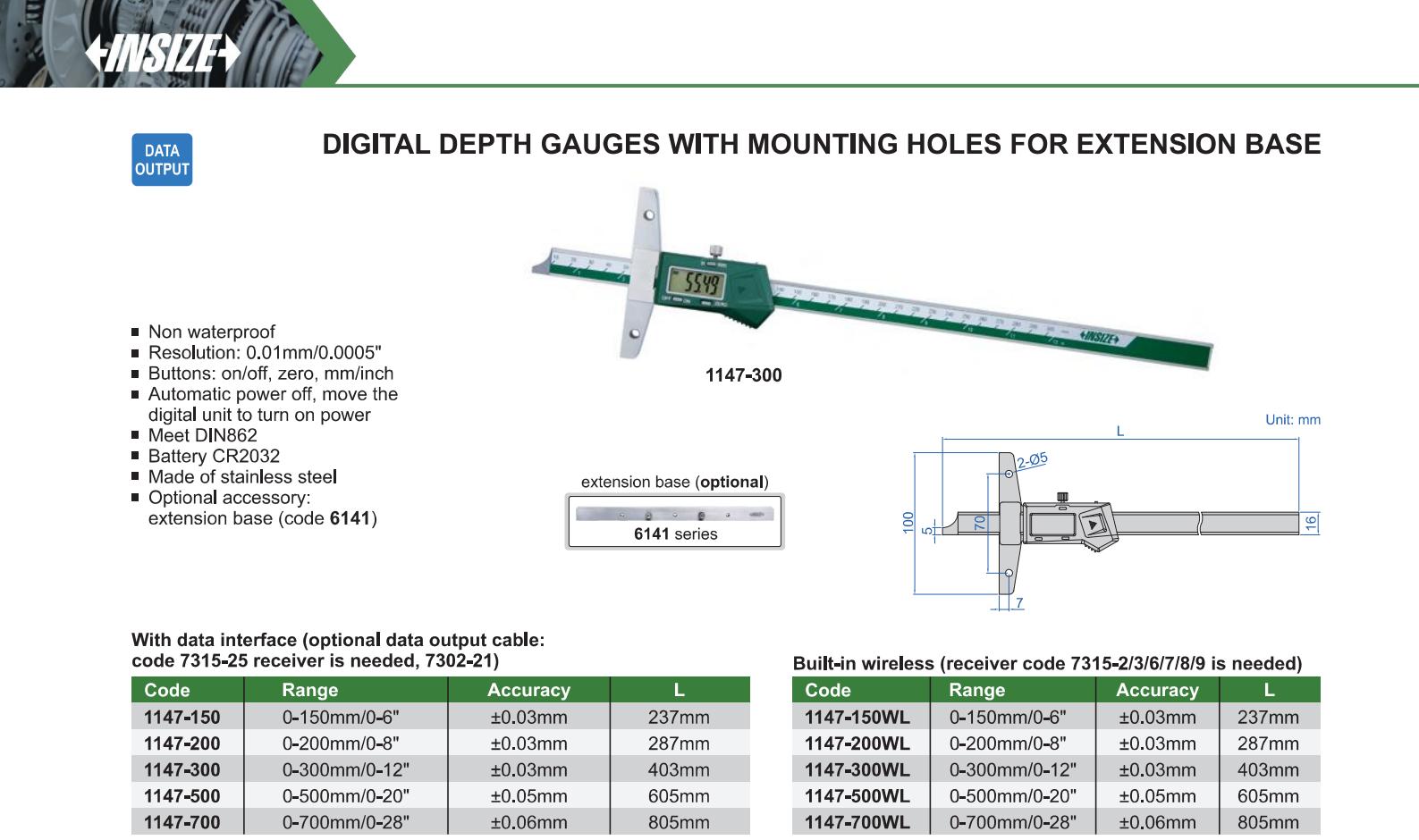

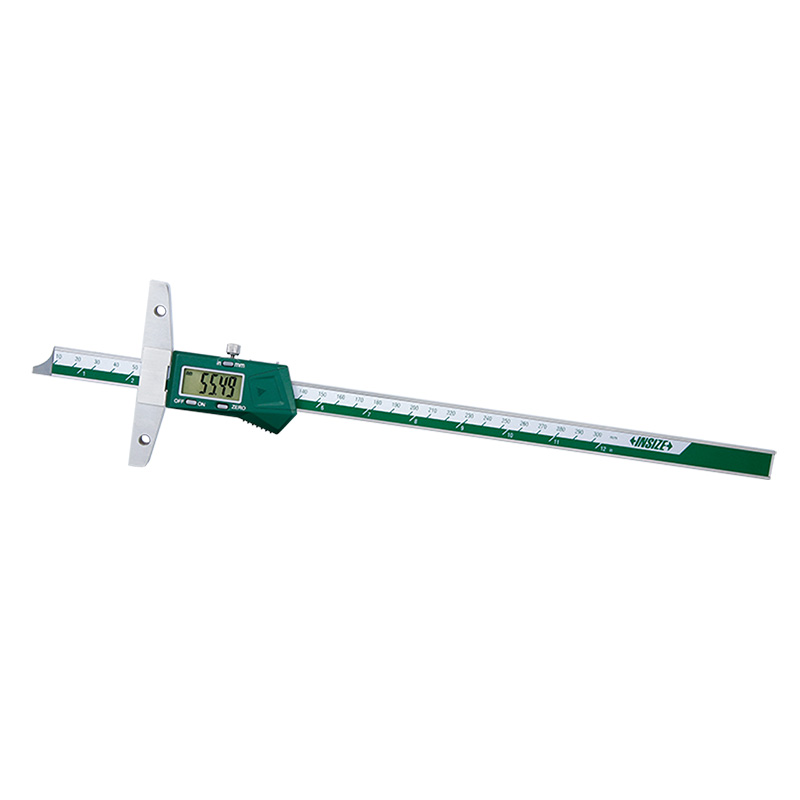

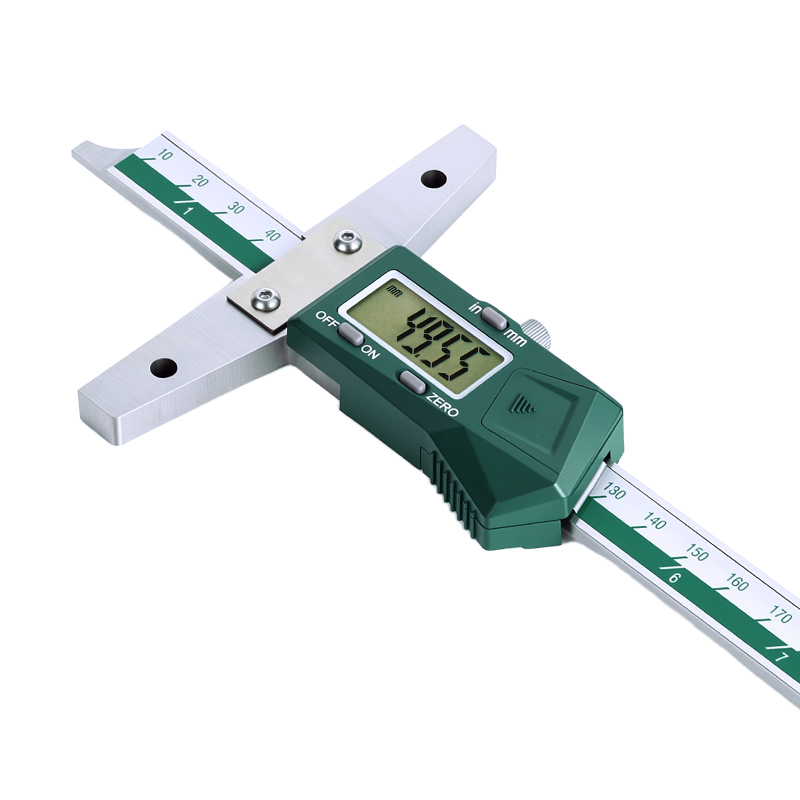

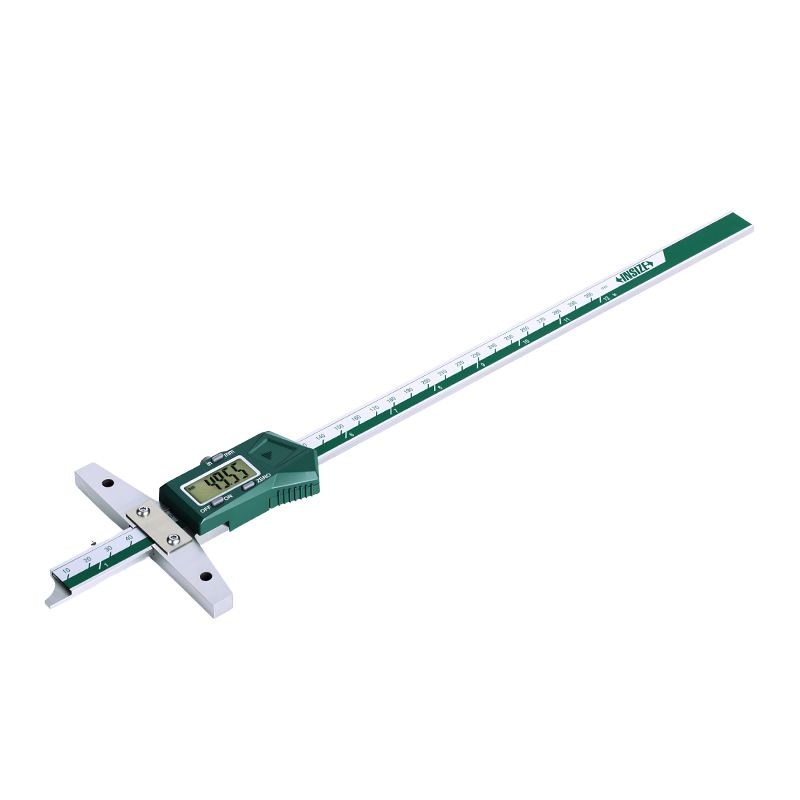

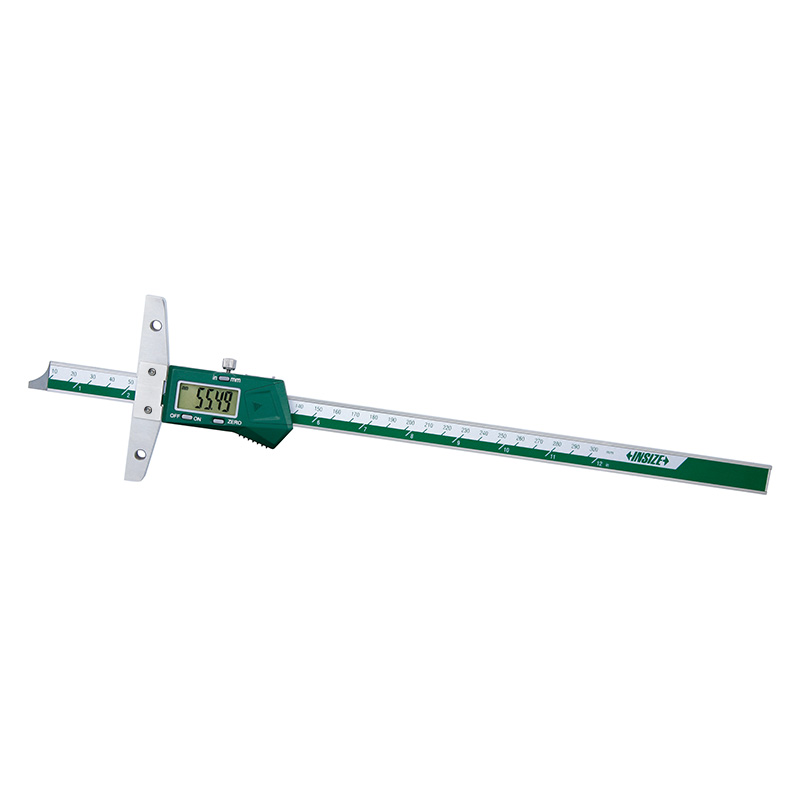

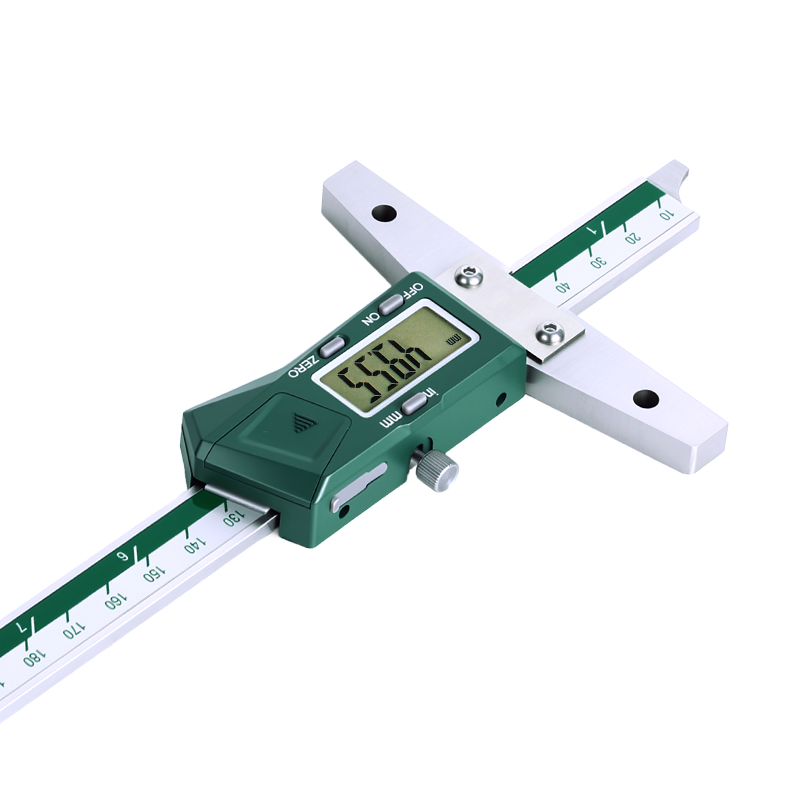

Digital Depth Gauges With Mounting Holes For Extension Base
Code: 1147
Non waterproof
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Meet DIN862
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1147-150 | 0-150mm/0-6" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1147-200 | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1147-300 | 0-300mm/0-12" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1147-500 | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1147-700 | 0-700mm/0-28" | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1147-150WL | 0-150mm/0-6" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1147-200WL | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1147-300WL | 0-300mm/0-12" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1147-500WL | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1147-700WL | 0-700mm/0-28" | ±0.06mm | 0.01mm/0.0005" | built-in wireless |
