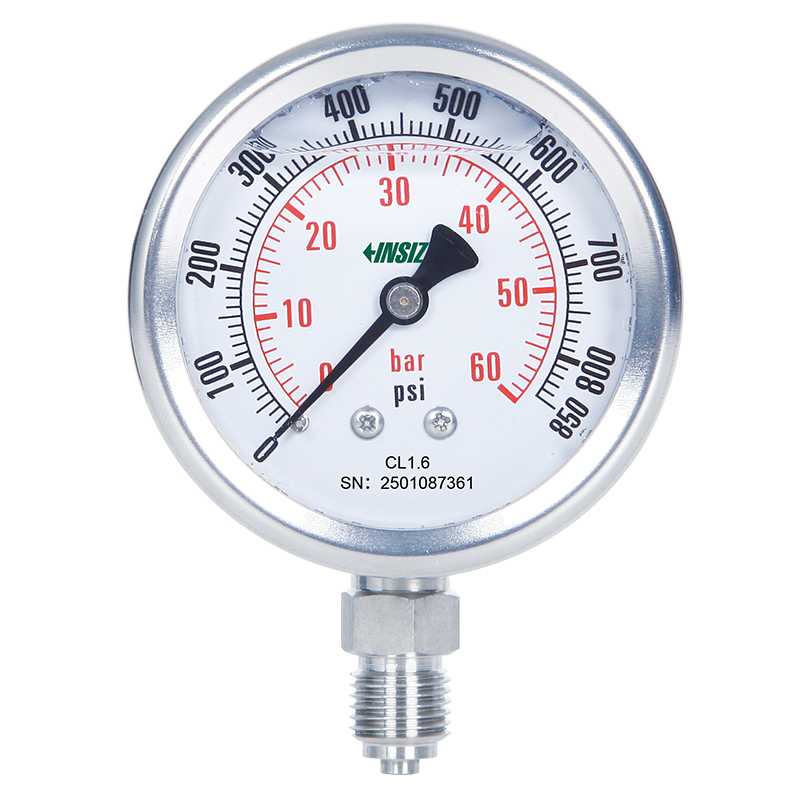

Bourdon Tube Pressure Gauges (Liquid Filled)
Code: 5208
Stainless steel case, stainless steel ring, stainless steel connection, stainless steel bourdon tube
Used for hydraulic and pneumatic systems, compressors, compressed air system, shock-proof and pulse-proof
Suitable for fluid medium which does not clog connection port or corrode stainless steel
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5208 | 1/8BSP, 1/8ZG, 1/8NPT, 1/4BSP, 1/4ZG, 1/4NPT, 3/8BSP, 3/8ZG, 3/8NPT, 1/2BSP, 1/2ZG, 1/2NPT | Ø40mm, Ø50mm, Ø63mm, Ø100mm | bottom, back, back connection with front flange, bottom connection with back flange | polycarbonate, tempered glass |

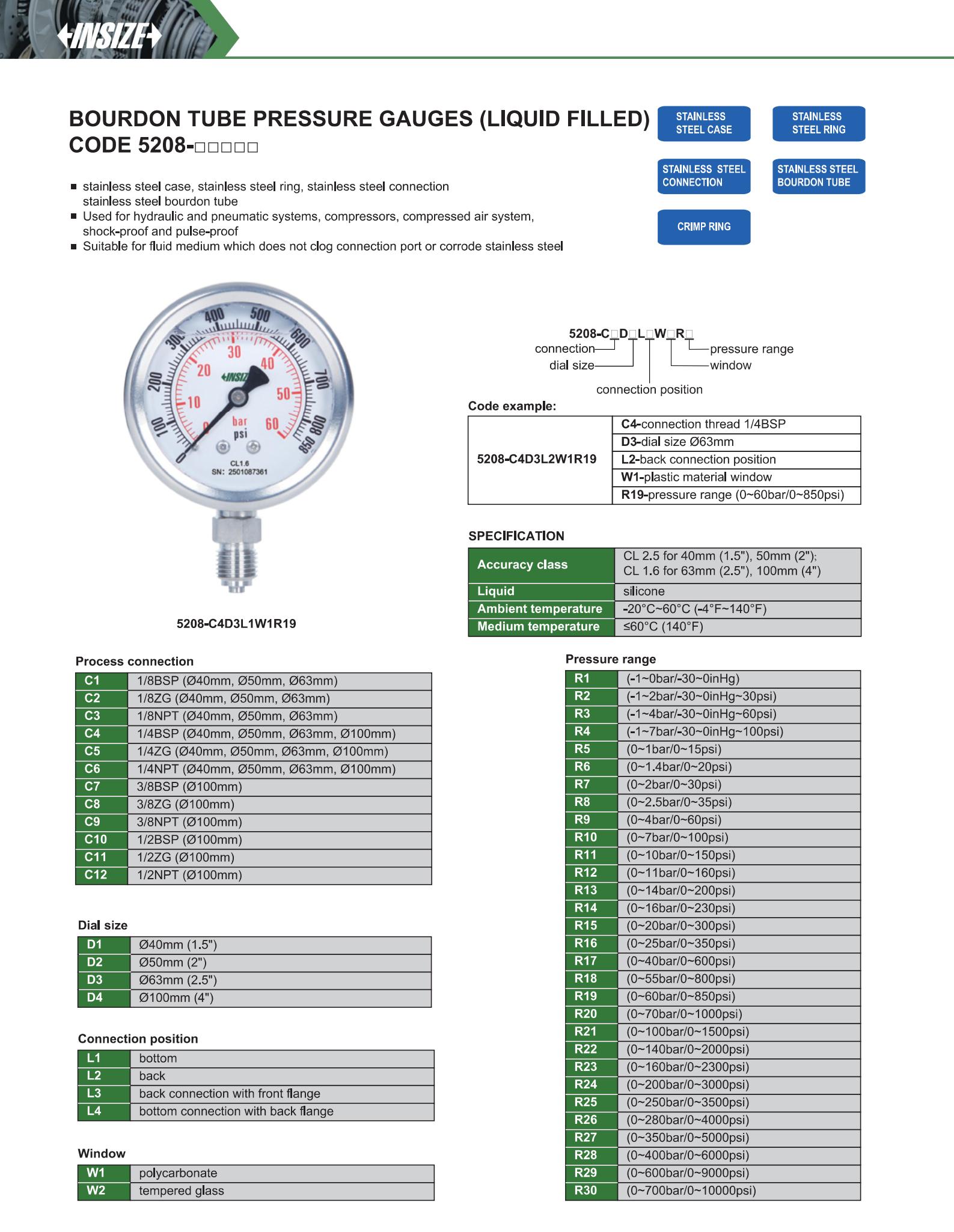

View the complete
product specifications
