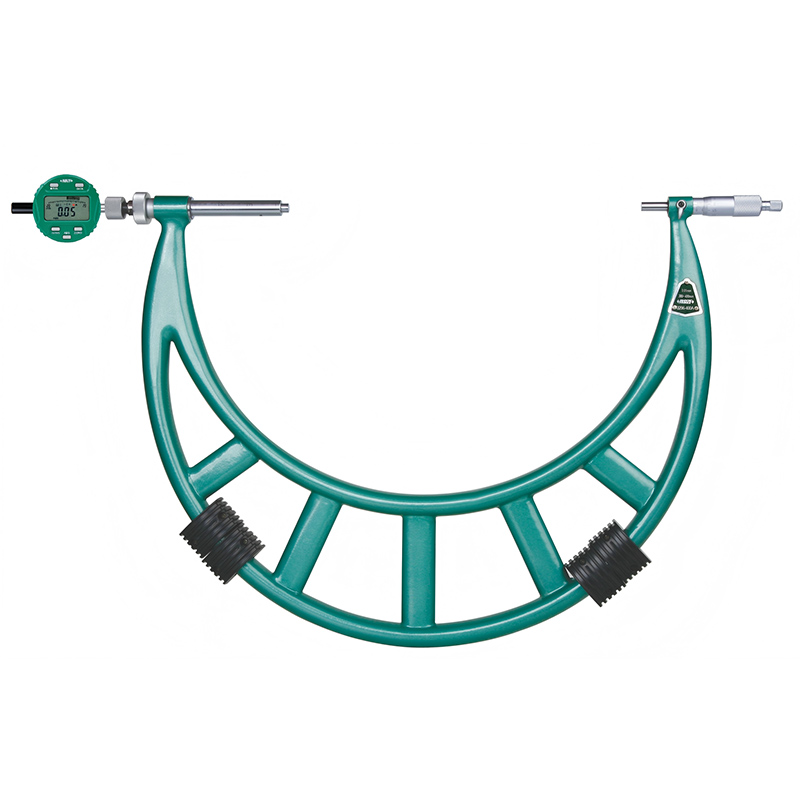

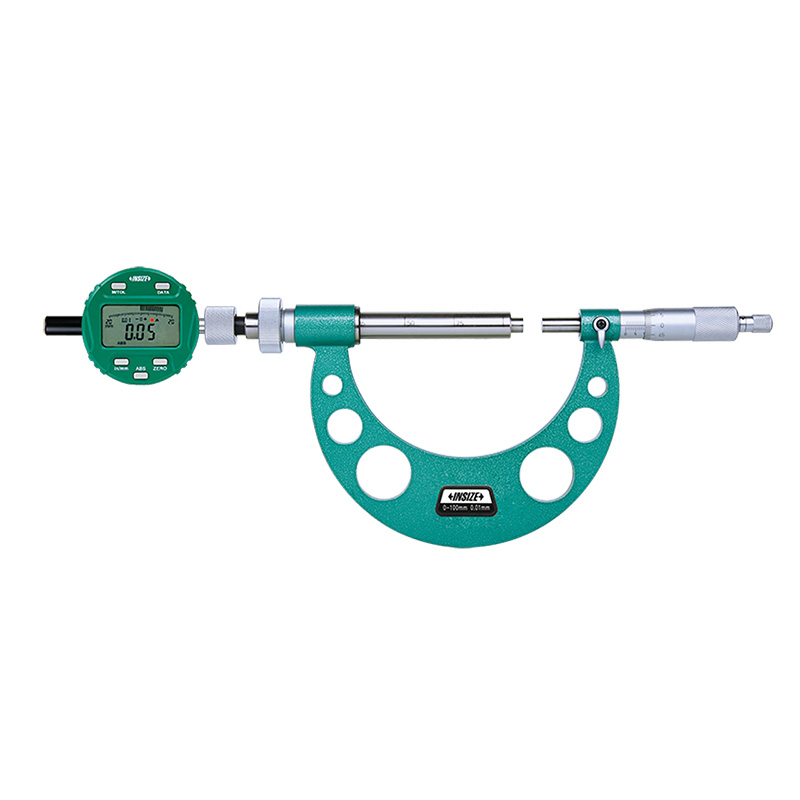

Micrometers With Dial Indicator
Code: 3296
Meet DIN863-3
Ratchet stop
Carbide measuring faces
Supplied with setting standards

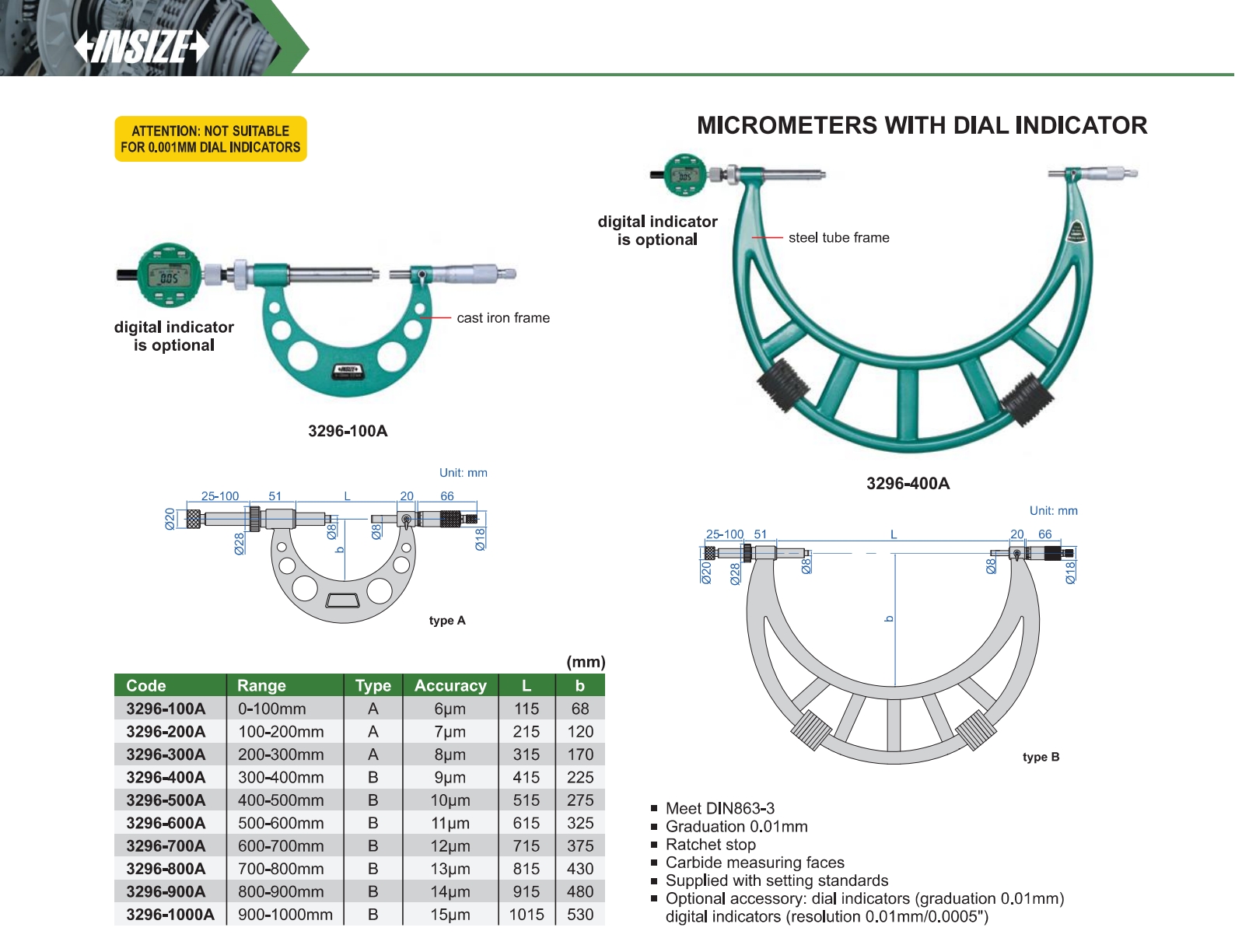

| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3296-100A | 0-100mm | 6μm | 0.01mm |
| 3296-200A | 100-200mm | 7μm | 0.01mm |
| 3296-300A | 200-300mm | 8μm | 0.01mm |
| 3296-400A | 300-400mm | 9μm | 0.01mm |
| 3296-500A | 400-500mm | 10μm | 0.01mm |
| 3296-600A | 500-600mm | 11μm | 0.01mm |
| 3296-700A | 600-700mm | 12μm | 0.01mm |
| 3296-800A | 700-800mm | 13μm | 0.01mm |
| 3296-900A | 800-900mm | 14μm | 0.01mm |
| 3296-1000A | 900-1000mm | 15μm | 0.01mm |
