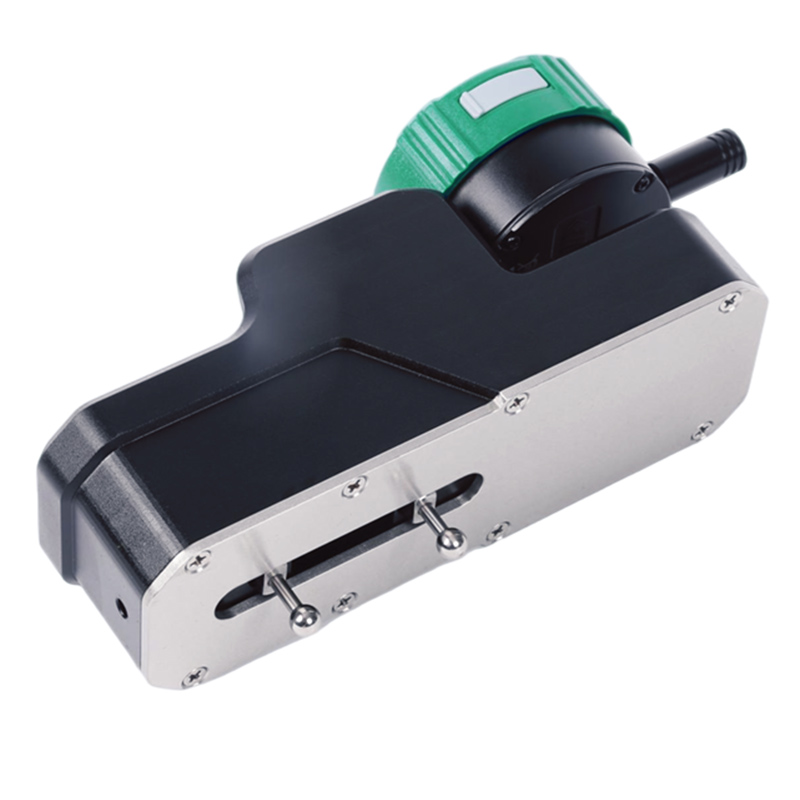

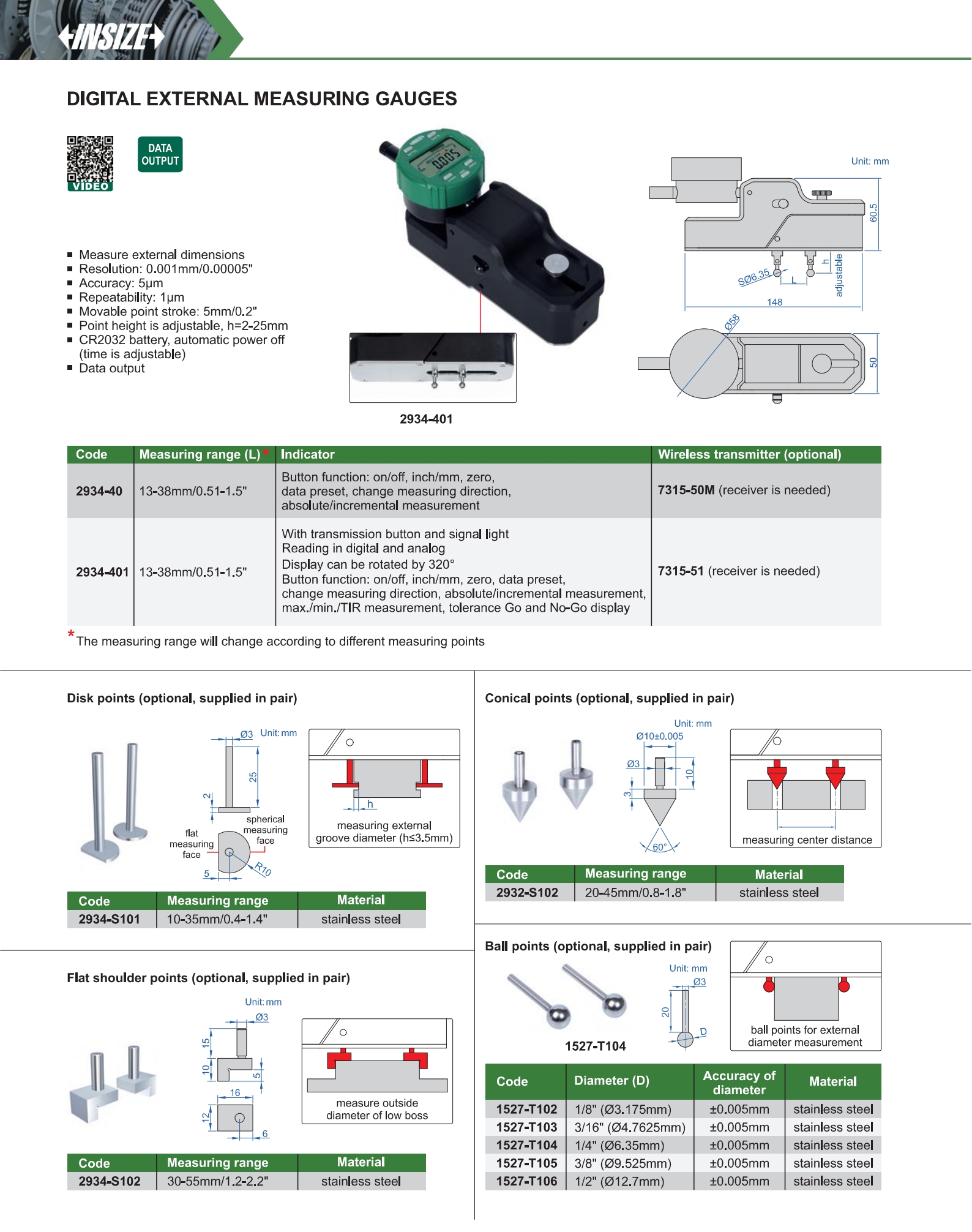

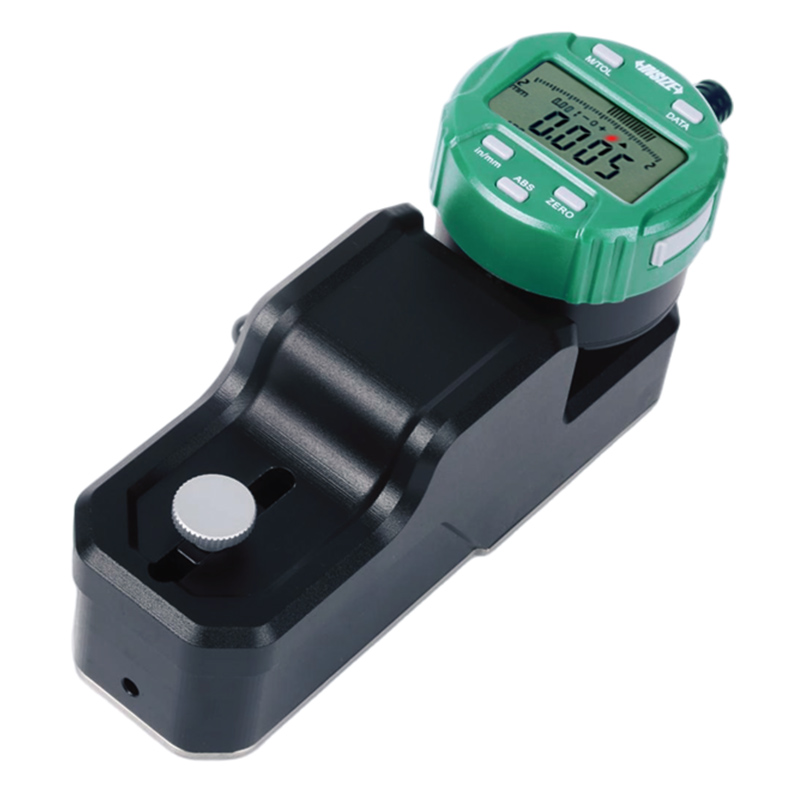

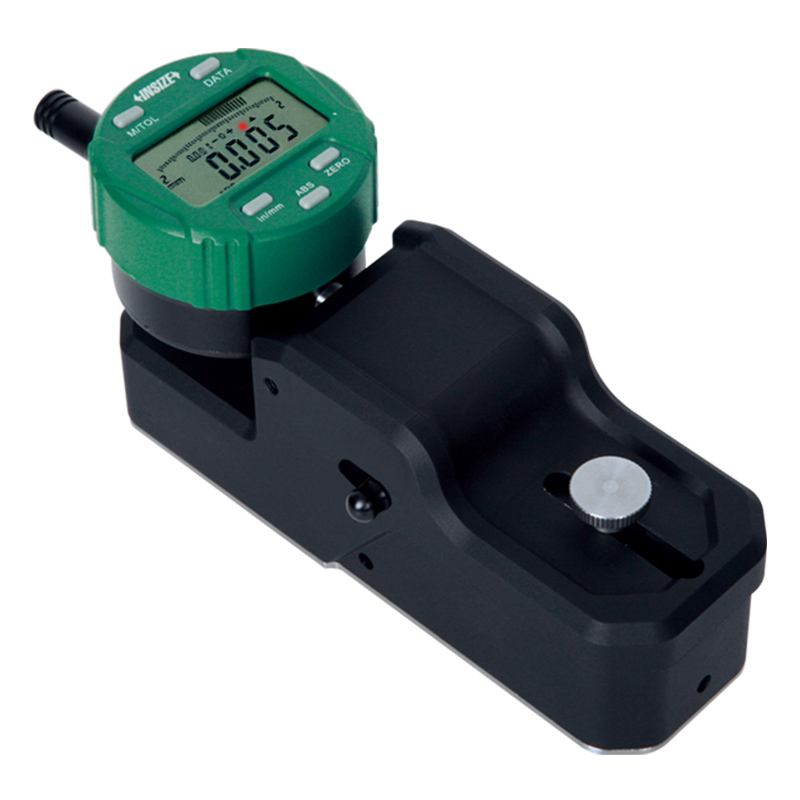

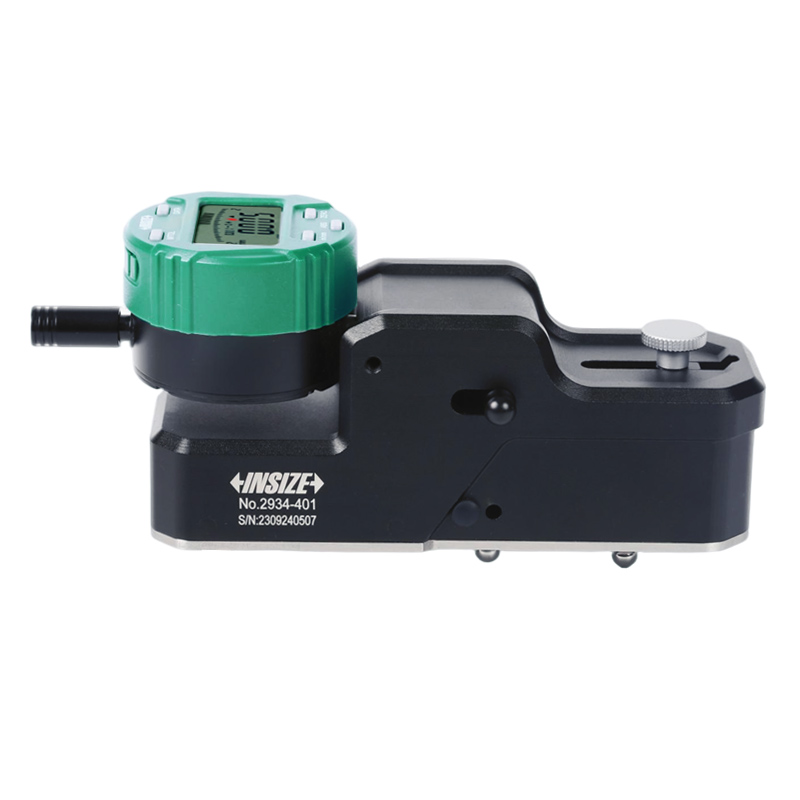

Digital External Measuring Gauges
Code: 2934
Measure external dimensions
Movable point stroke: 5mm/0.2"
Point height is adjustable, h=2-25mm
CR2032 battery, automatic power off (time is adjustable)
Data output
| Code | Accuracy | Resolution | Repeatability | Range of external diameter |
|---|---|---|---|---|
| 2934-40 | 5µm | 0.001mm/0.00005" | 1µm | 13-38mm/0.51-1.5" |
| 2934-401 | 5µm | 0.001mm/0.00005" | 1µm | 13-38mm/0.51-1.5" |
