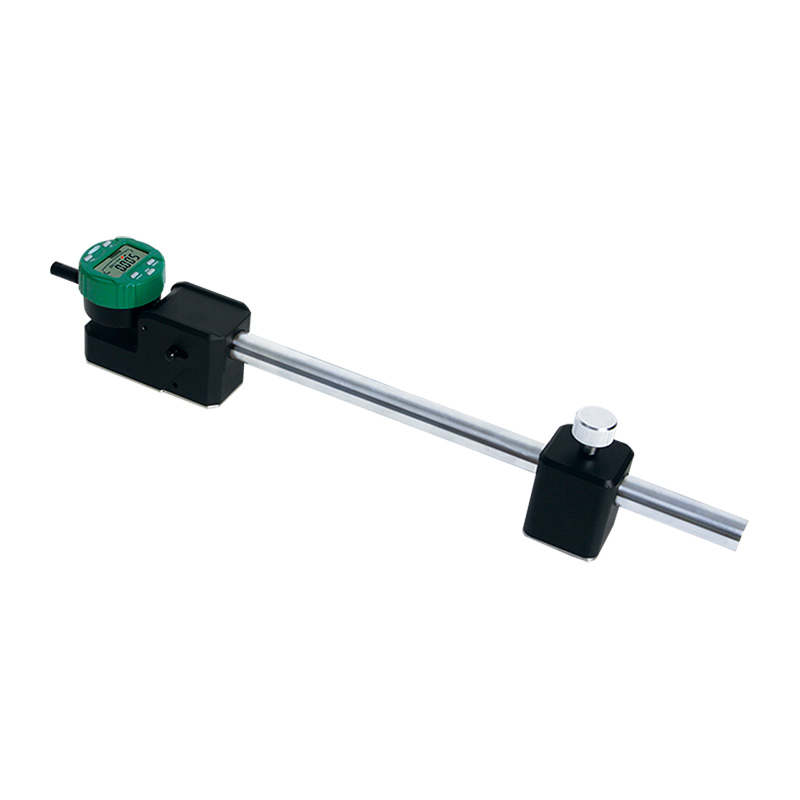

Large Range Digital Internal Measuring Gauges
Code: 2933
Measure internal dimensions
Movable point stroke: 5mm/0.2"
Point height is adjustable, h=2-25mm
CR2032 battery, automatic power off (time is adjustable)
Data output
| Code | Accuracy | Resolution | Repeatability | Range of internal diameter |
|---|---|---|---|---|
| 2933-330 | 5µm | 0.001mm/0.00005" | 1µm | 48-330mm/1.89-13" |
| 2933-331 | 5µm | 0.001mm/0.00005" | 1µm | 48-330mm/1.89-13" |
View the complete
product specifications
