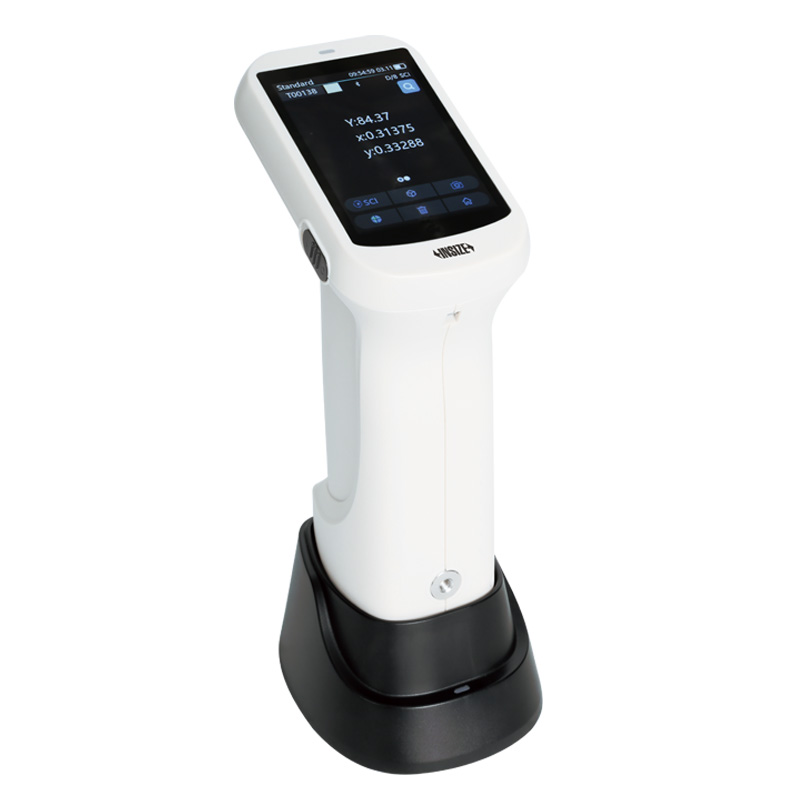

Handheld Spectrophotometers (Advanced Type)
Code: 5710-HS04/HS05
Plane grating spectrophotometric
3.5 inch TFT capacitive touch screen
D/8 geometrical optics, conforms with CIE No.15, ISO7724/1, ASTM E1164, DIN5033 Teil 7
Dual optical path system for more stable testing environment
Includes both SCI and SCE measurement modes
Use long life and low power consumption combined LED light source, include UV and exclude UV measurement
Dual 40-array sensors, wider spectral response range
Large capacity storage space, over 20000 measurement data
| Code | Wavelength range | Measuring aperture |
|---|---|---|
| 5710-HS04 | 400nm~700nm | MAV: Ø11mm, Ø10mm ; SAV: Ø5mm, Ø3mm ; MINI: 1×3mm |
| 5710-HS05 | 360nm~780nm | MAV: Ø12mm, Ø11mm, Ø10mm ; SAV: Ø6mm, Ø5mm, Ø3mm ; MINI: 1×3mm |
