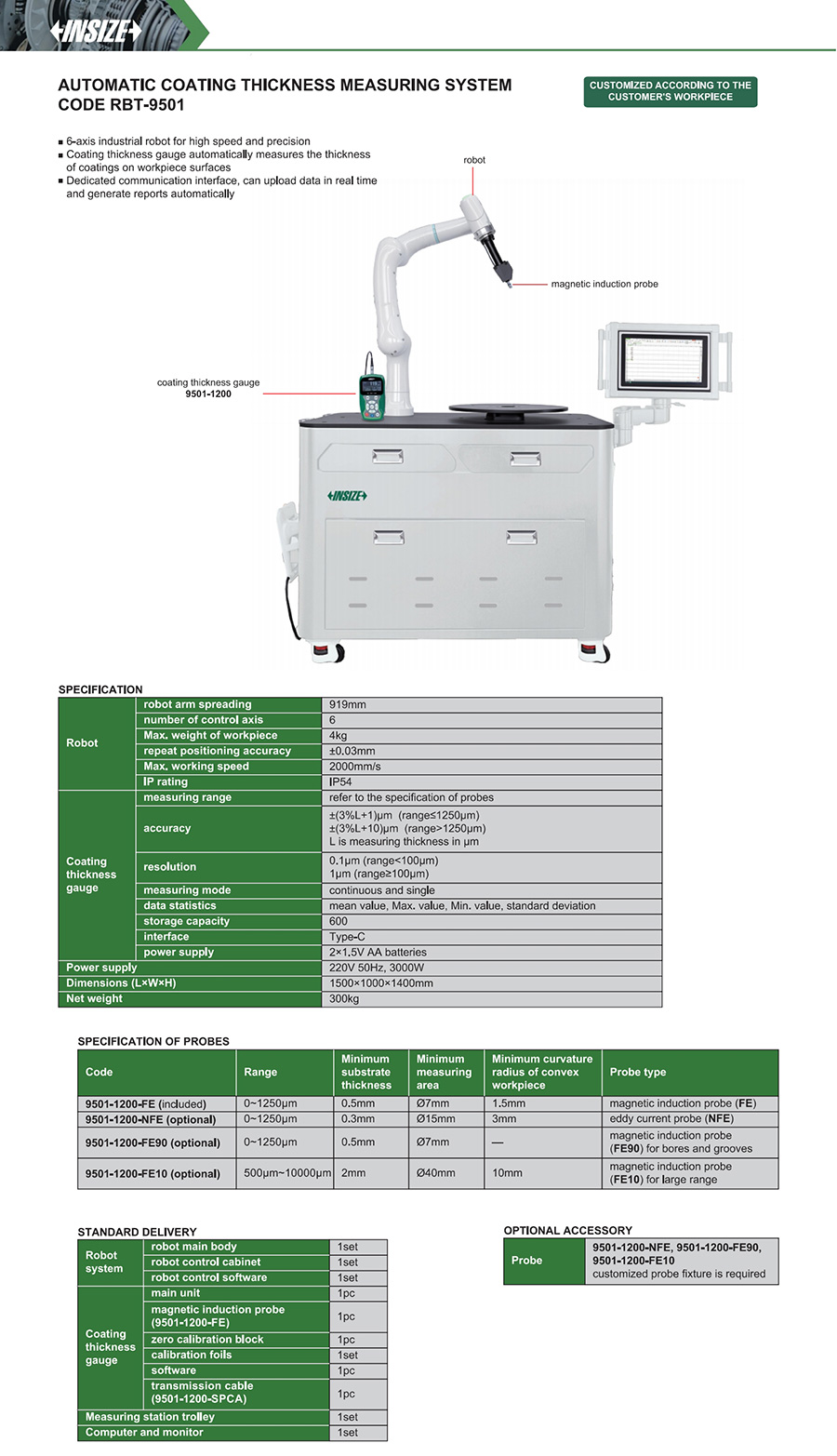

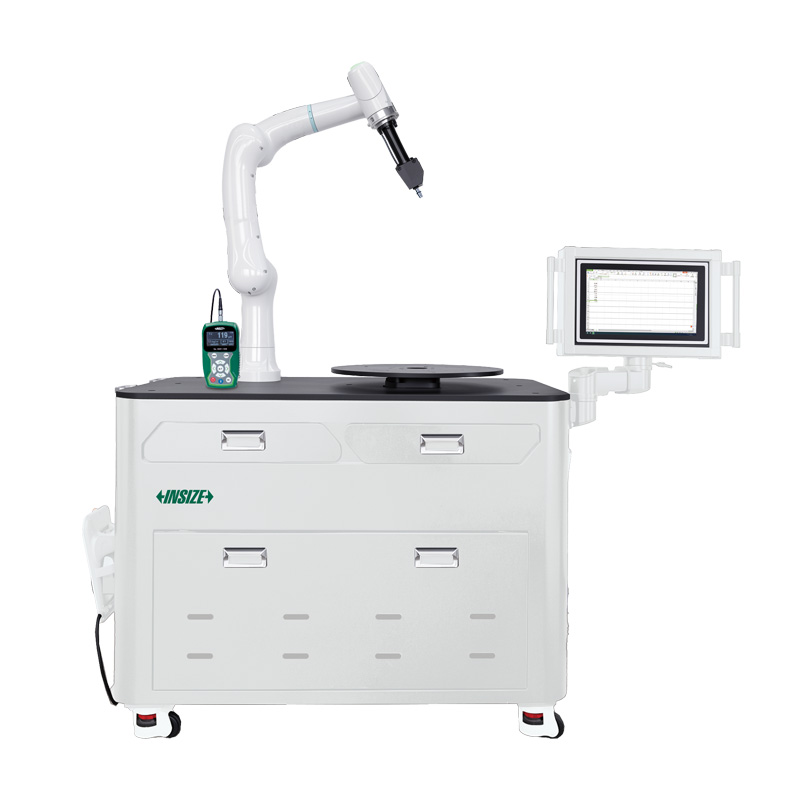

Automatic Coating Thickness Measuring System
Code: RBT-9501
6-axis industrial robot for high speed and precision
Coating thickness gauge automatically measures the thickness of coatings on workpiece surfaces
Dedicated communication interface, can upload data in real time and generate reports automatically
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| RBT-9501 | 0~1250µm | ±(3%L+1)µm (range≤1250µm), ±(3%L+10)µm (range>1250µm), L is measuring thickness in µm | 0.1µm (range<100µm), 1µm (range≥100µm) |
