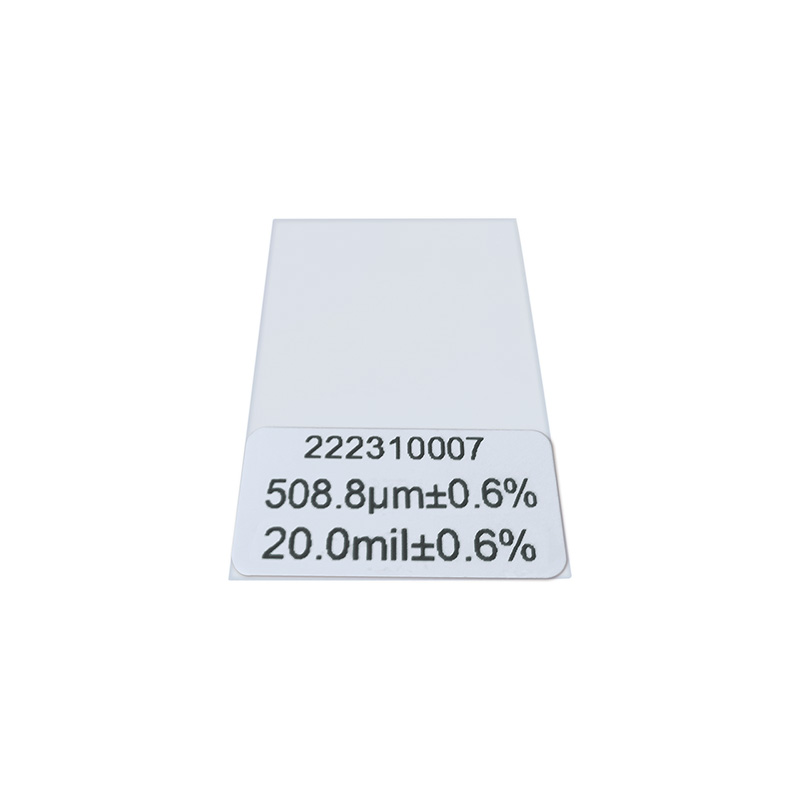

Calibration Foils For Coating Thickness Gauges
Code: 9503
To calibrate or check the accuracy of coating thickness gauges
Increase the measurement accuracy after foil calibration
Uniformity: ±0.3μm (≤50μm), ±0.6% (>50μm)
Dimension: 45×30mm (thickness≤2000μm), 50×30mm (thickness>2000μm)
Supplied with manufacturer inspection certificate

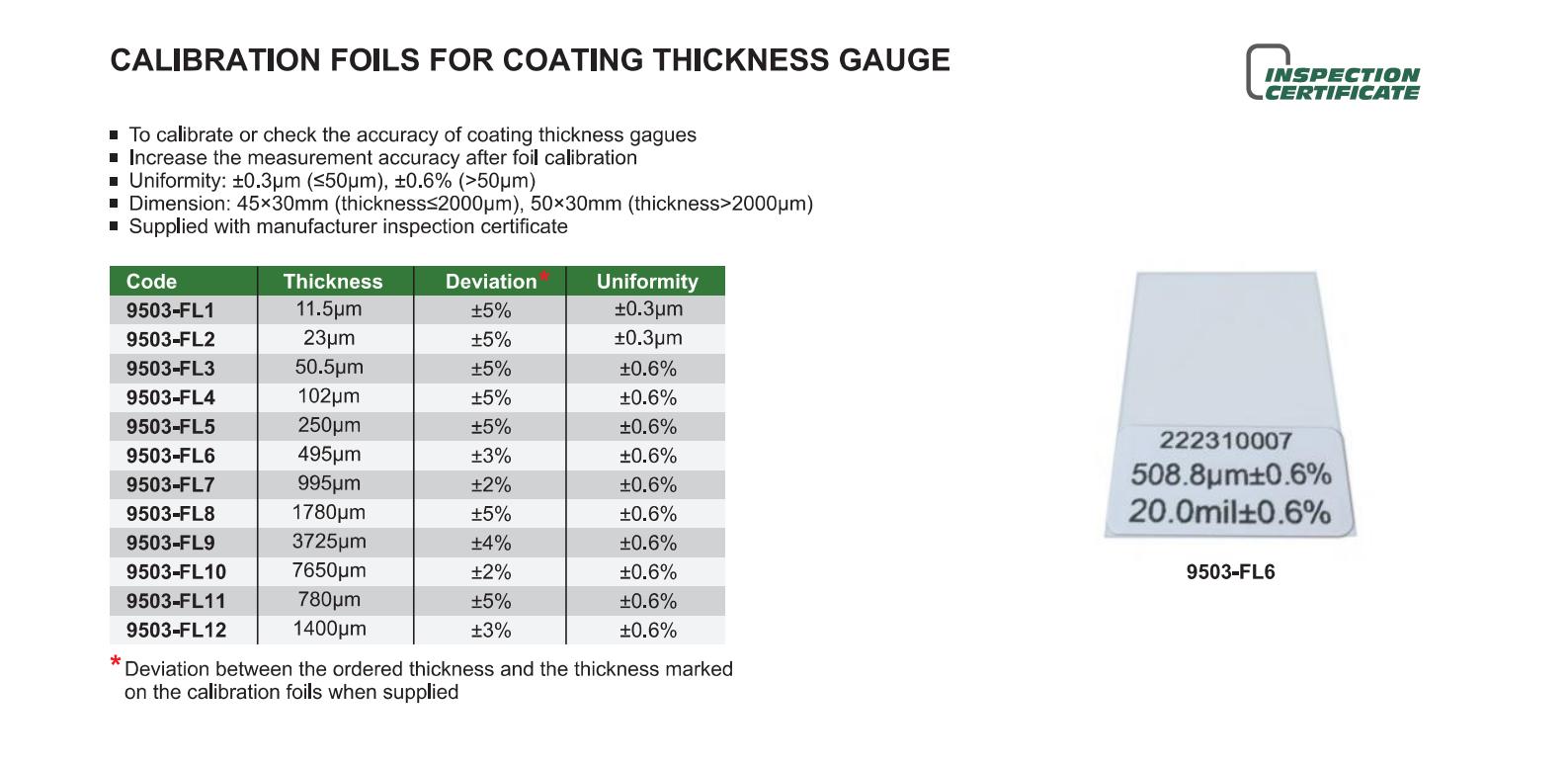

| Code | Thickness | Uniformity |
|---|---|---|
| 9503-FL1 | 11.5μm | ±0.3μm |
| 9503-FL2 | 23μm | ±0.3μm |
| 9503-FL3 | 50.5μm | ±0.6% |
| 9503-FL4 | 102μm | ±0.6% |
| 9503-FL5 | 250μm | ±0.6% |
| 9503-FL6 | 495μm | ±0.6% |
| 9503-FL7 | 995μm | ±0.6% |
| 9503-FL8 | 1780μm | ±0.6% |
| 9503-FL9 | 3725μm | ±0.6% |
| 9503-FL10 | 7650μm | ±0.6% |
| 9503-FL11 | 780μm | ±0.6% |
| 9503-FL12 | 1400μm | ±0.6% |
