INSIZE Measurement Solutions: Enhancing Precision and Efficiency in High-End Manufacturing
20-03-2026
Project Background
In high-end manufacturing, micron-level precision is the foundation of reliability. From small precision components to large aircraft structures, any measurement deviation can compromise performance and safety. As product complexity increases, manufacturers in the electronics, automotive, and aerospace sectors require measurement solutions that balance high accuracy with operational efficiency.
The Challenge
Manufacturers across various industries face several common measurement obstacles:
• Efficiency: The need to measure hundreds of features on a single part quickly.
• Flexibility: Handling diverse part sizes and small-batch production without frequent, time-consuming setup changes.
• Range: Measuring a wide variety of dimensions, from small gaps to large diameters, with consistent accuracy.
• Stability: Maintaining reliable data in complex production environments or when positioning delicate gauges.
The Solution
INSIZE implemented a range of high-precision measurement systems tailored to specific manufacturing needs:
1. Automated Inspection for High-Volume Electronics

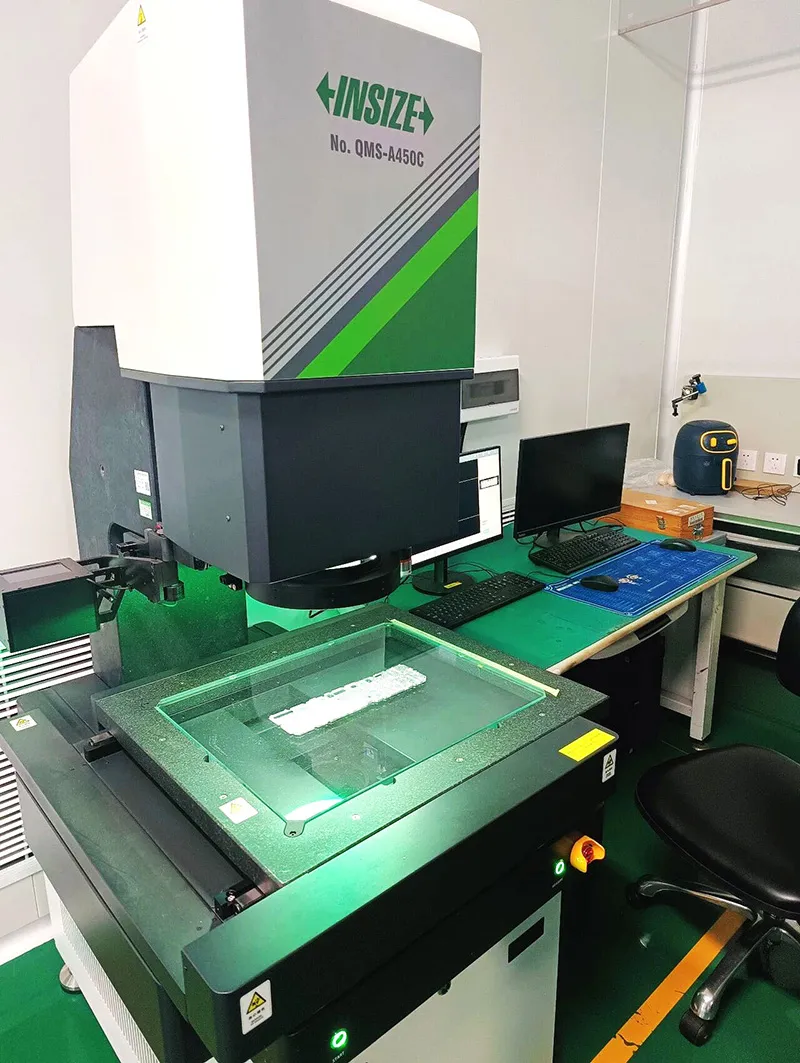

An information technology company integrated the INSIZE QMS-A450 Instant Vision Measuring System to streamline their quality control.
• Capability: Within a 500x400mm field of view, the system can measure over 999 points with a single program.
• Automation: Features include one-click measurement, automatic focus, and automated data recording.
• Impact: This solution significantly increased inspection throughput for both small batches and large-scale electronic components.
2. Flexible Measurement for Diverse Product Lines

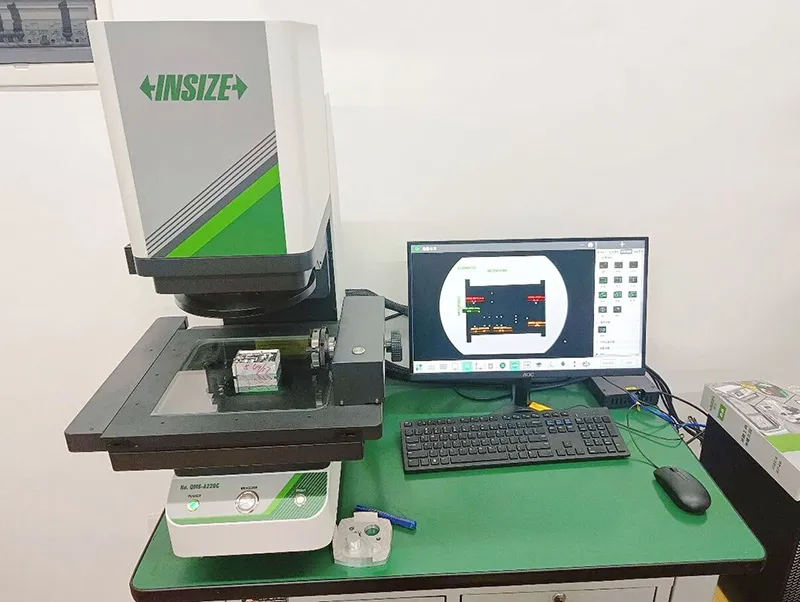

For an electrical appliance group managing a wide variety of products, the INSIZE QMS-A220 Instant Vision Measuring System provided a modular approach.
• Stitchable Design: The system’s unique expandable design allows it to adapt to different part dimensions.
• Reporting: Custom software modules allow for the rapid generation of inspection reports.
• Impact: This flexibility is particularly effective for "multi-variety, small-batch" production models.
3. Wide-Range Dimensional Control in Vehicle Manufacturing

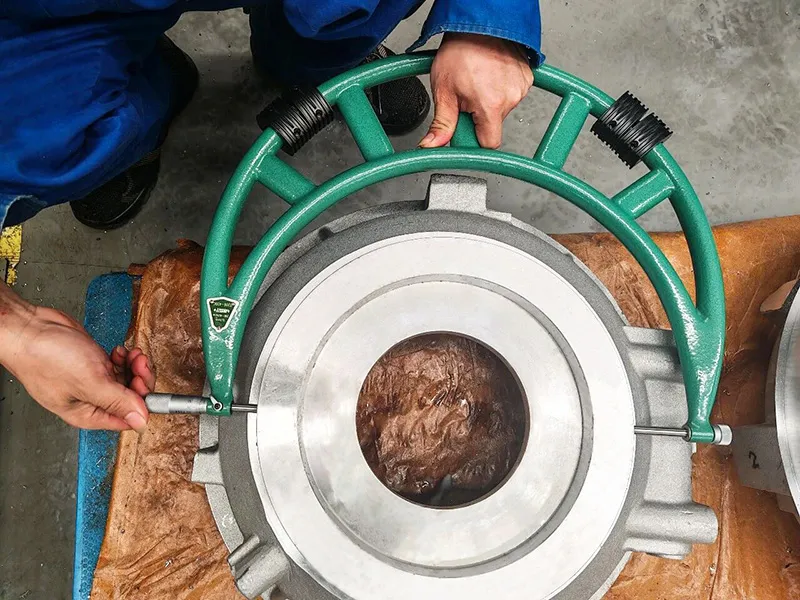

A vehicle manufacturing plant utilized the INSIZE 3206 Series Outside Micrometer with Interchangeable Anvils to achieve micron-level accuracy across various scales.
• Versatility: The 3206 series offers multiple models with interchangeable anvils, covering specific measurement ranges from 0-50mm up to 900-1000mm.
• Durability: The cast steel frame ensures structural stability and long-term repeatability.
• Impact: This provided a cost-effective and accurate method for measuring diverse automotive components.
The Result
By implementing these targeted measurement solutions, the manufacturers achieved the following:
• Improved Efficiency: Reduced manual measurement time and simplified the inspection process.
• Consistent Accuracy: Maintained stable, repeatable results across different production environments.
• Increased Adaptability: The ability to switch between different product types and sizes with minimal downtime.
Conclusion
Precision measurement is a critical component of modern quality control. By selecting tools that match their specific application requirements, manufacturers can ensure product safety and maintain a competitive edge in high-end manufacturing.
