Enhancing Quality Control in Heavy Machinery Manufacturing with INSIZE Intelligent Inspection Instruments
06-03-2026
Background
In heavy machinery manufacturing, product reliability depends on precise control at every production stage. Factors such as bolt torque, bearing temperature, vibration levels, and installation accuracy directly impact equipment safety, durability, and service life.
To strengthen quality assurance and transition toward predictive maintenance, a heavy machinery manufacturer introduced a comprehensive range of INSIZE intelligent inspection instruments. These tools are now widely used across final assembly, testing, commissioning, and on-site installation.
Challenge
The manufacturer produces large-scale industrial equipment operating under heavy loads and harsh conditions. Traditional inspection methods faced several limitations:
• Difficulty detecting early-stage mechanical abnormalities
• Limited accuracy and efficiency in large-scale equipment alignment
• Increasing pressure from noise control and safety regulations
• Heavy reliance on scheduled maintenance rather than condition-based decisions
A more systematic and data-driven inspection solution was required to ensure consistent quality and long-term reliability.
Solution: Multi-Parameter Intelligent Inspection
● Acoustic Measurement for Noise Control

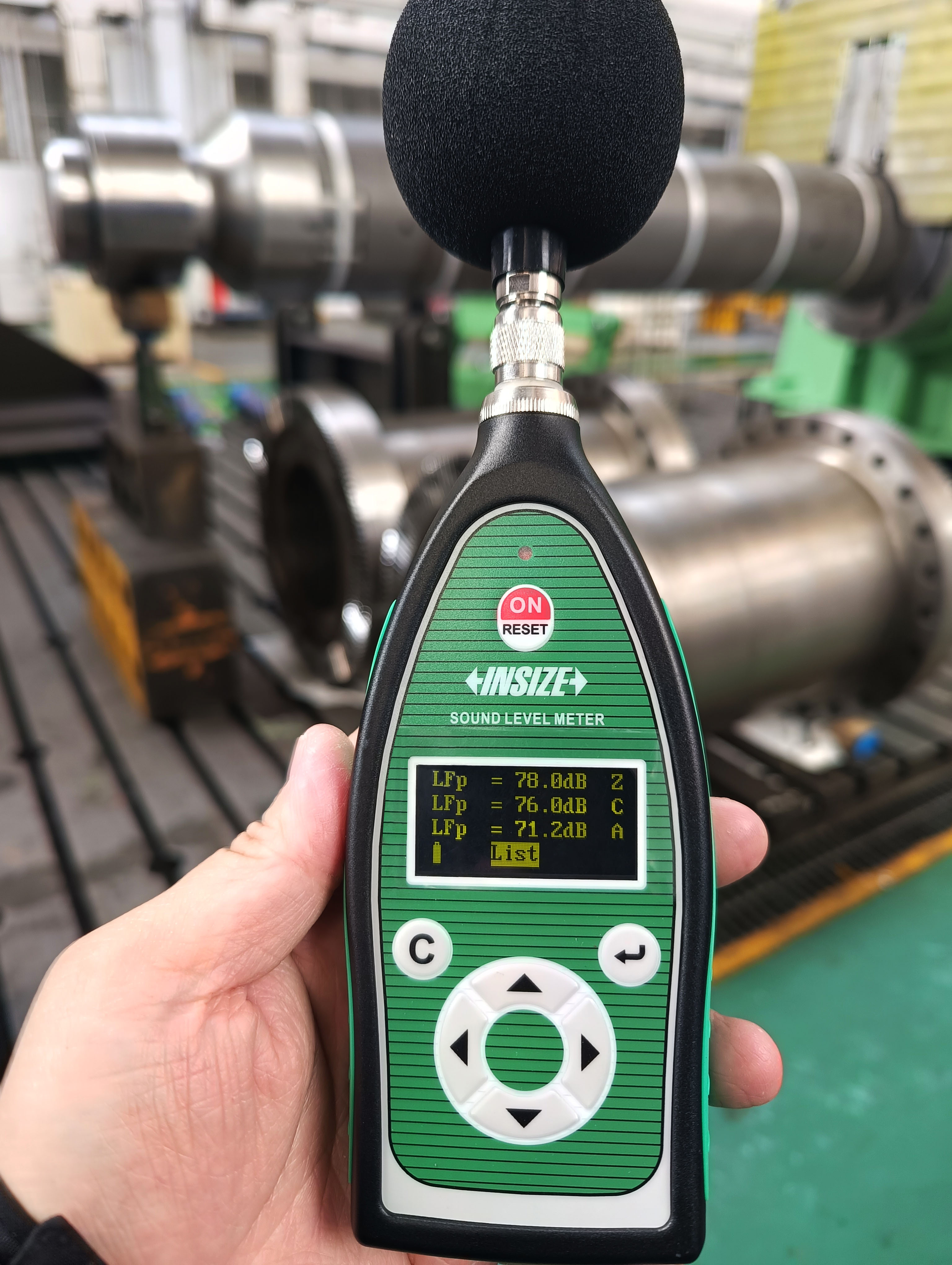

During final inspection, engineers use the INSIZE 0011-FA25 Integrating Sound Level Meter to measure operating noise at different distances and angles.
This instrument complies with GB/T 3785.1-2010 and IEC 61672-1:2013 Class 2 standards. Its integrating function automatically calculates equivalent continuous sound levels (Leq), enabling accurate evaluation of noise performance and ensuring compliance with increasingly strict environmental requirements.
● Vibration Monitoring for Early Fault Detection

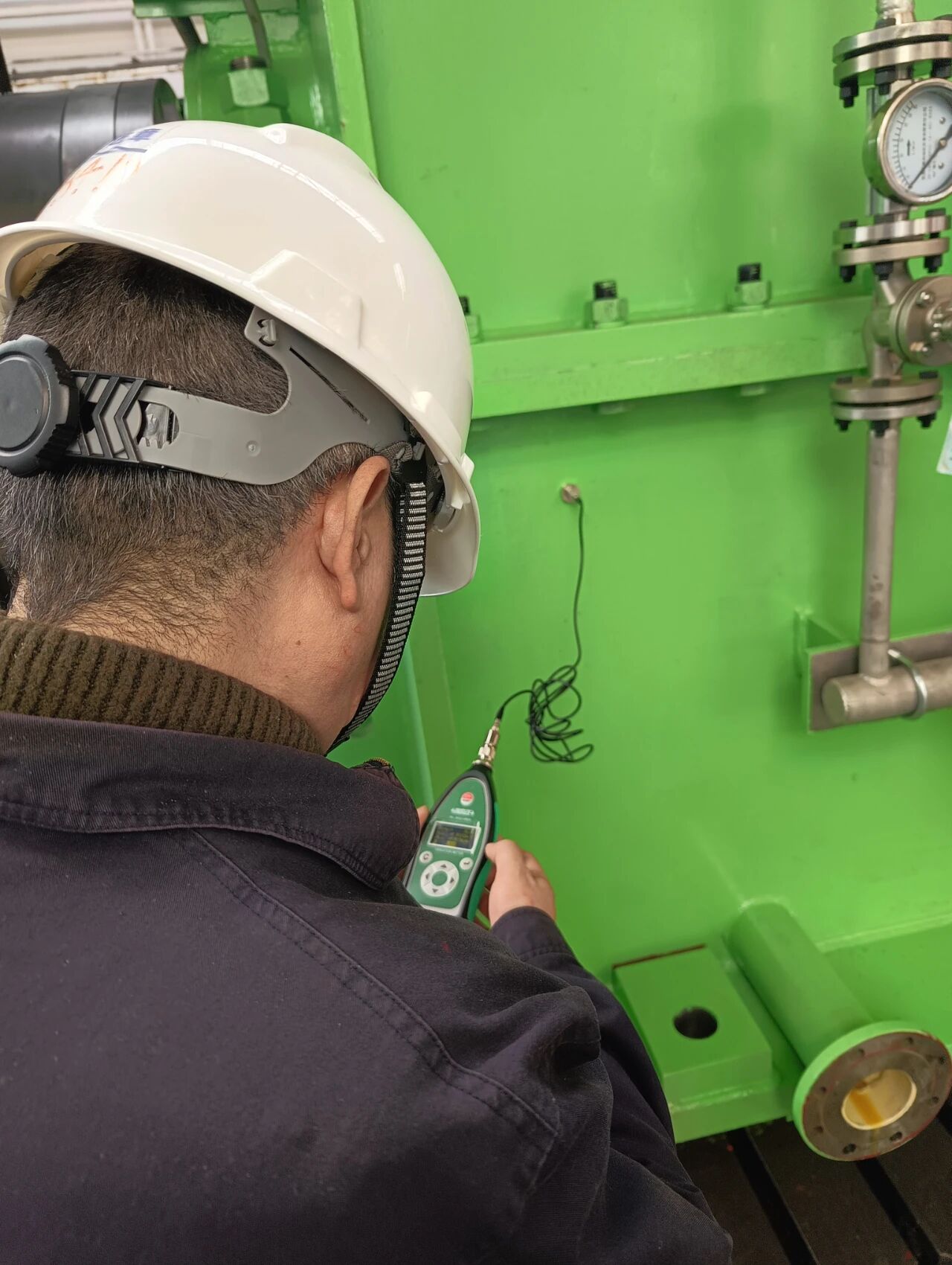

To assess mechanical stability, the INSIZE 0022-VM20 Vibration Meter is used to monitor vibration conditions in critical components such as crusher main bearings.
The instrument measures displacement, velocity, and acceleration, converting imperceptible mechanical motion into precise quantitative data. This supports fault diagnosis, condition monitoring, safety assessment, and quality verification, making it an essential tool for industrial equipment maintenance.
● Temperature Monitoring and Precision Alignment
● Non-Contact Temperature Measurement

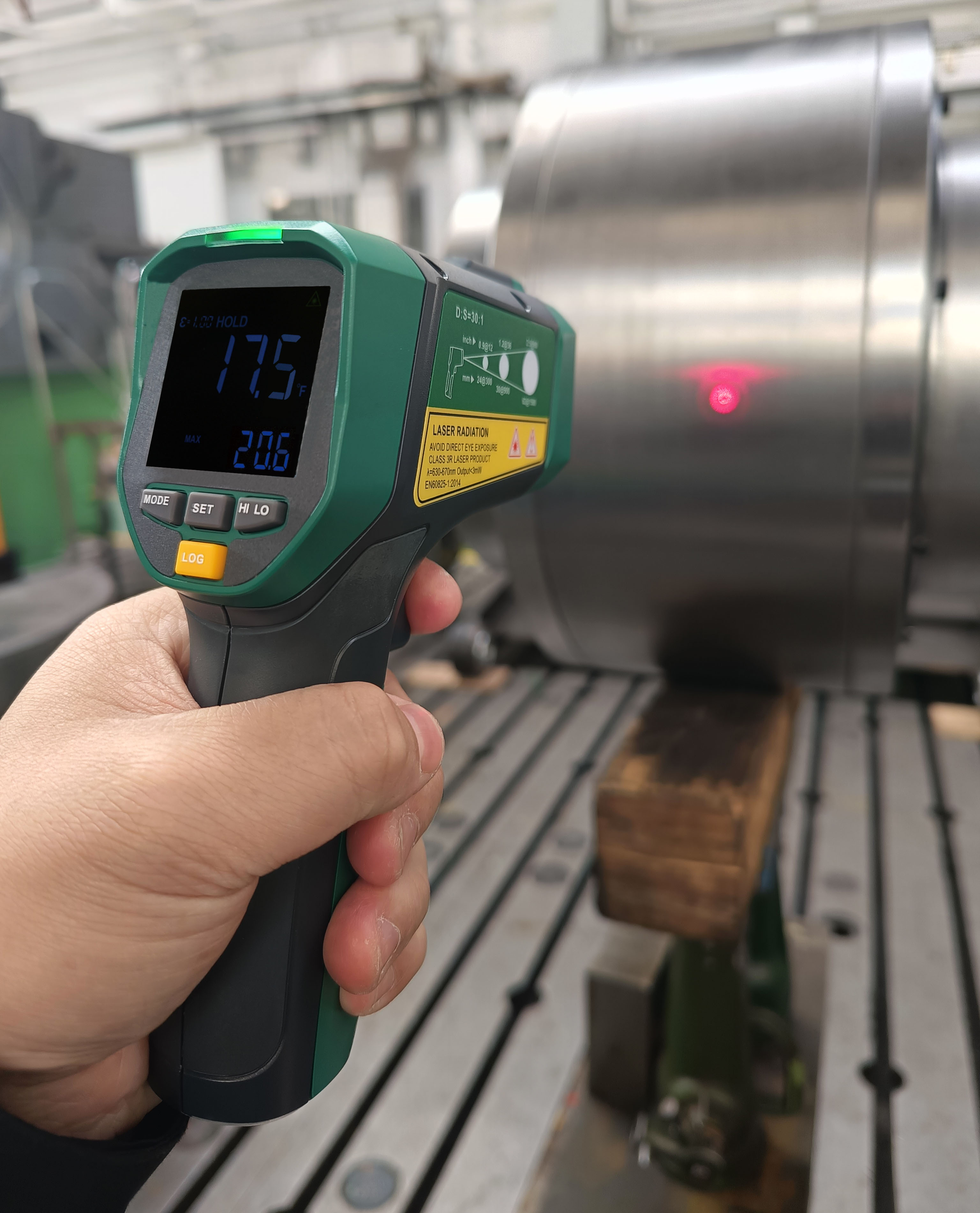

In high-temperature testing areas, engineers use the INSIZE 0216-B210 Infrared Thermometer to monitor temperature changes at key locations without physical contact.
With a range from -30°C to 1300°C, the instrument provides real-time monitoring of motors, hydraulic systems, and heat-sensitive components. Abnormal temperature rises can be identified early, helping prevent potential failures during continuous operation.
● Installation Accuracy and Alignment Control

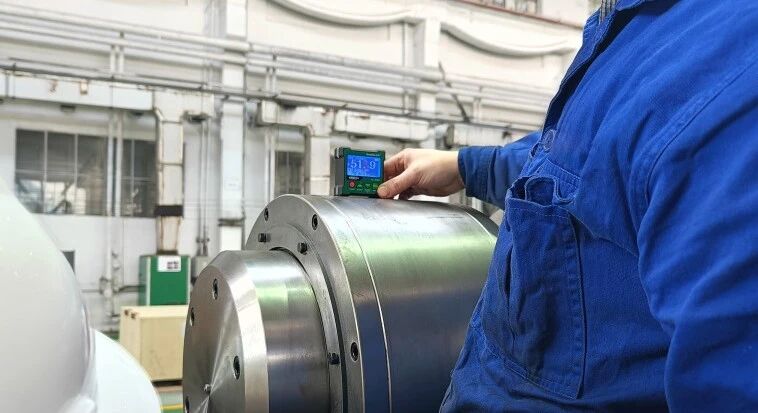

For large structural components, precise alignment is achieved using the INSIZE 2199-1 Dual-Axis Digital Level / Gyro Angle Meter.
Compared to traditional spirit levels, this digital instrument significantly reduces installation time while achieving an alignment accuracy of 0.08°, improving both efficiency and consistency during assembly.

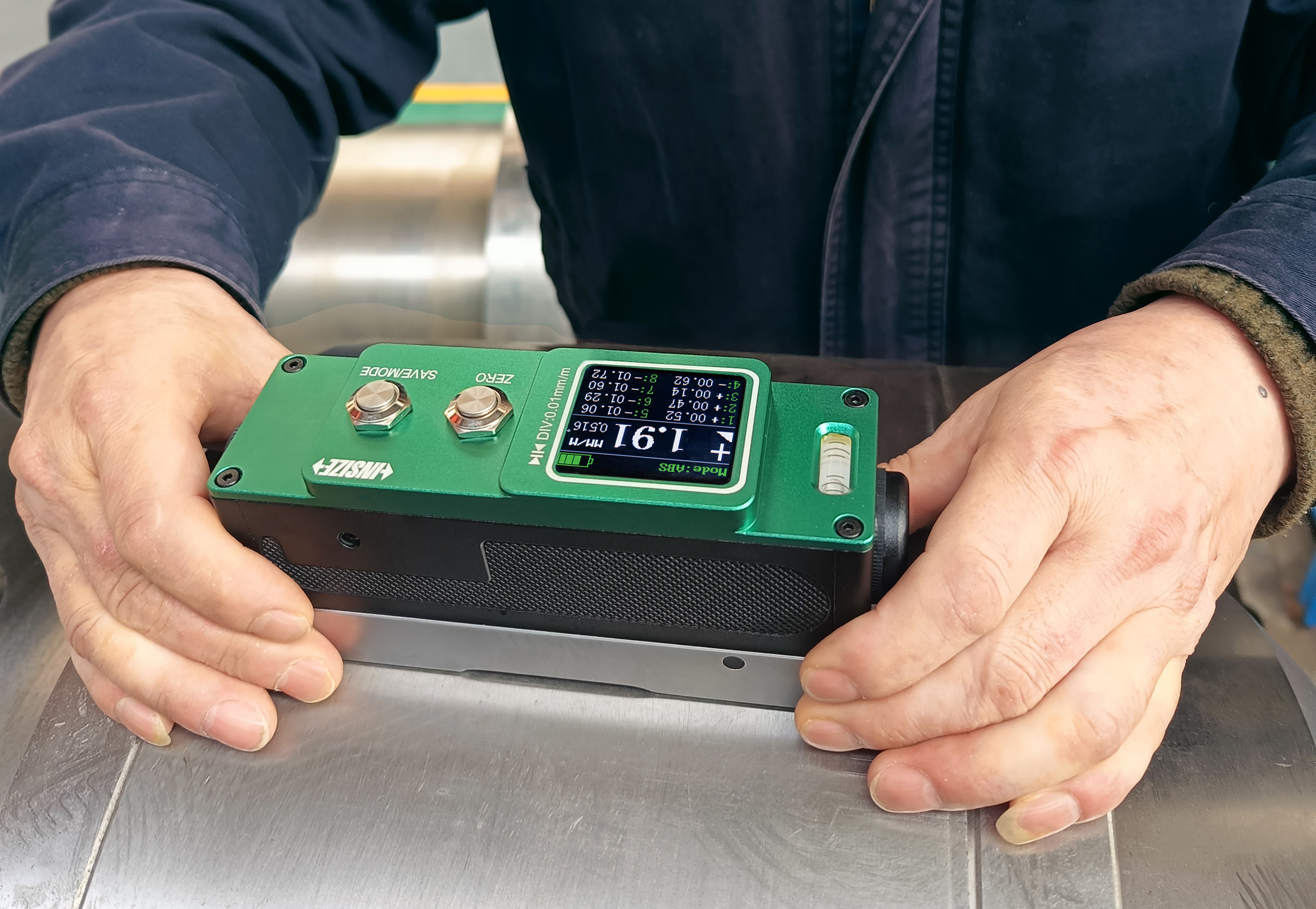

Additionally, the INSIZE 4950-1 Electronic Strip Level is widely used for on-site installation and calibration. Its intuitive digital display and wide measuring range further enhance alignment efficiency in field operations.
● Non-Contact Rotational Speed Measurement

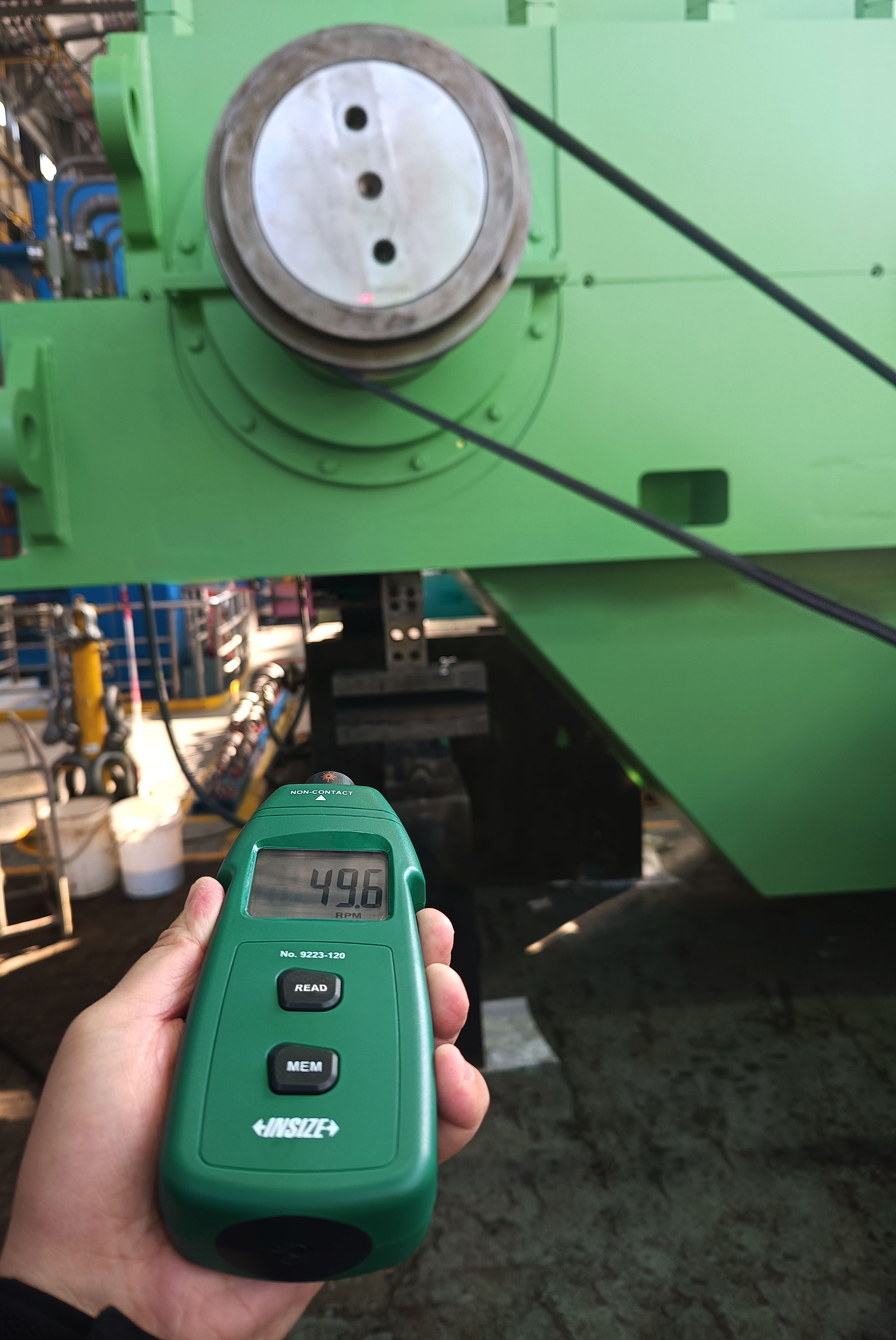

During commissioning, engineers measure actual operating speed using the INSIZE 9223-120 Non-Contact Tachometer.
By applying reflective tape to rotating parts, the instrument captures rotational speed accurately via laser sensing—without physical contact or interference with normal operation. This ensures safe measurement and provides reliable data for comparison with design specifications.
● Integrated Value and Digital Transformation
The deployment of these INSIZE inspection instruments represents more than a tool upgrade—it marks a shift toward a digital and intelligent quality management system.
Measurement data collected throughout factory testing and on-site operation is gradually being consolidated into a full equipment lifecycle database. This data supports continuous product improvement and enables the manufacturer to provide preventive maintenance recommendations to customers, extending equipment service life and reducing unexpected downtime.
The company also plans to integrate inspection data into its industrial IoT platform, applying data analysis and intelligent algorithms to evaluate equipment health trends and transition from scheduled maintenance to predictive maintenance.
Conclusion
As heavy machinery manufacturing enters the era of Industry 4.0, competition is increasingly defined by reliability, data transparency, and lifecycle service capability.
By adopting a comprehensive range of INSIZE intelligent inspection instruments—including sound level meters, vibration meters, infrared thermometers, digital levels, and non-contact tachometers—the manufacturer has established a multi-dimensional quality control system. This approach enhances product reliability, improves operational efficiency, and delivers long-term value to customers, setting a new benchmark for quality-driven manufacturing.
