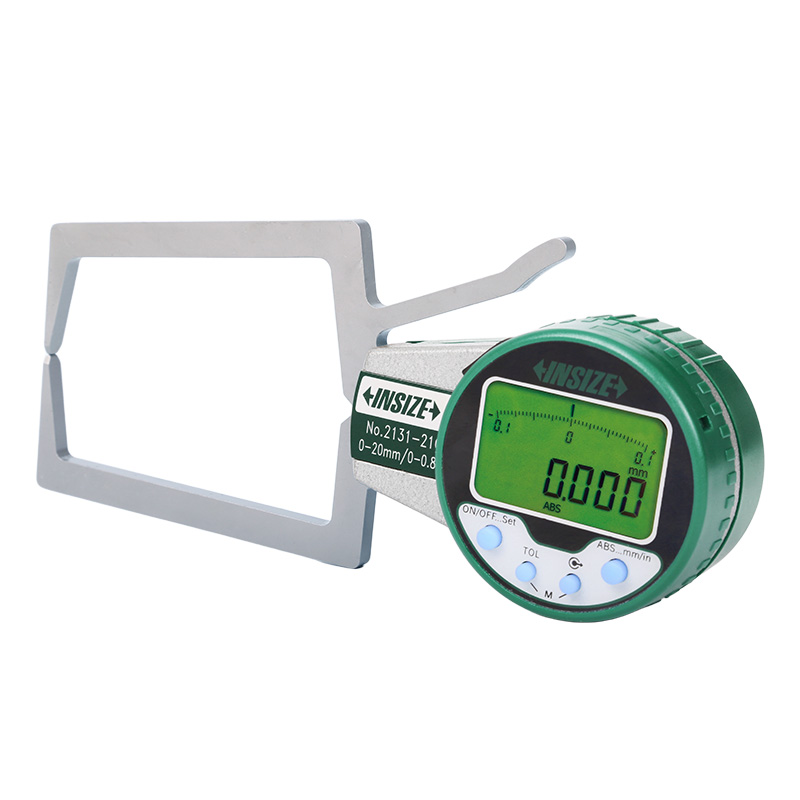

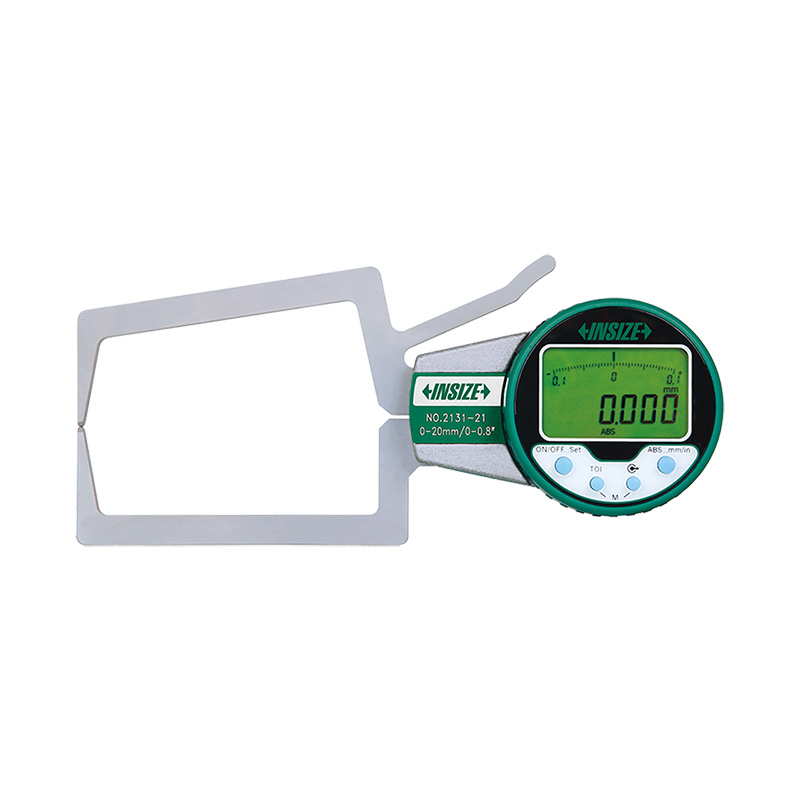

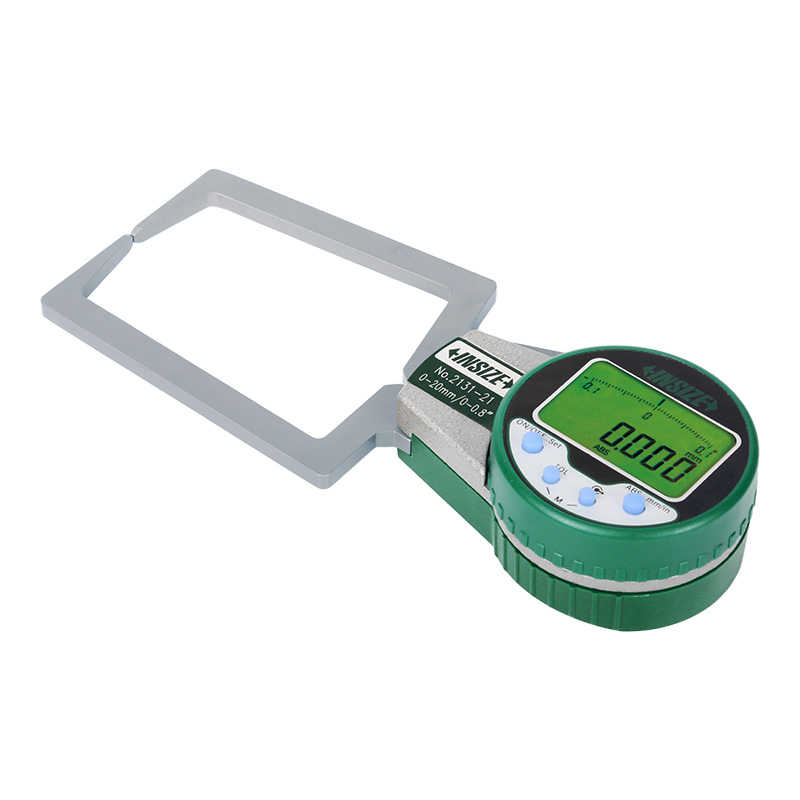

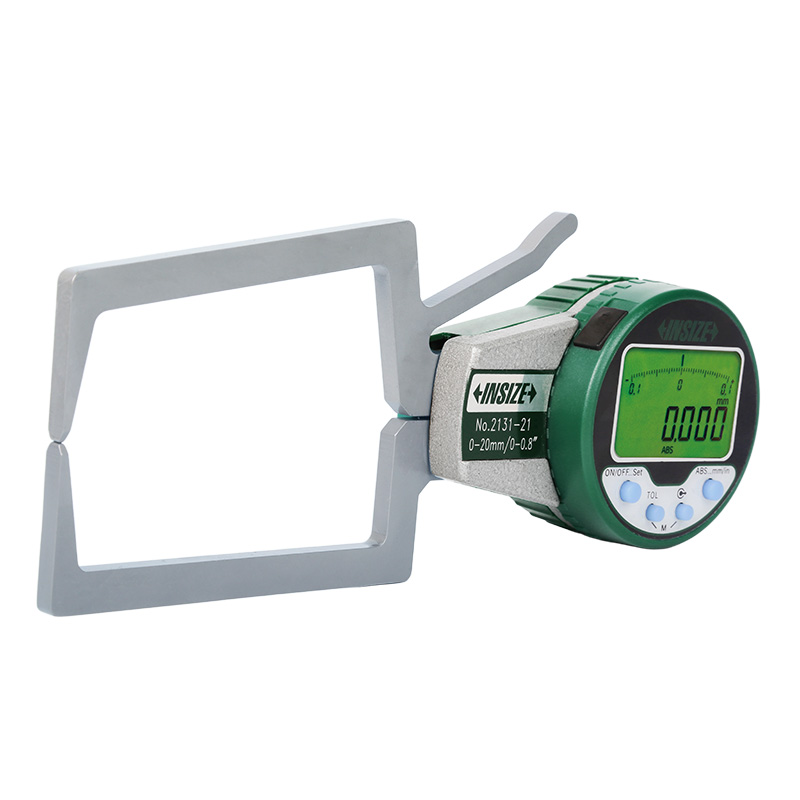

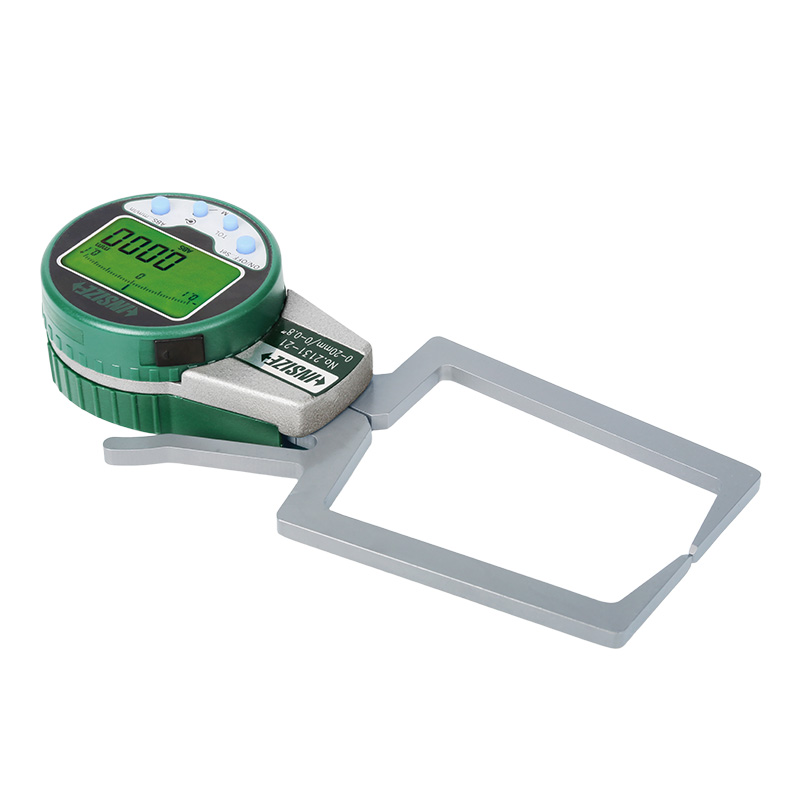

Digital External Caliper Gauges
Code: 2131
Reading in digit and analog
Display can be rotated by 170°
Button function: tolerance Go and No-Go display, data preset, max./min. measurement, data holding, inch/metric conversion, absolute/incremental measurement
CR2032 battery, automatic power off

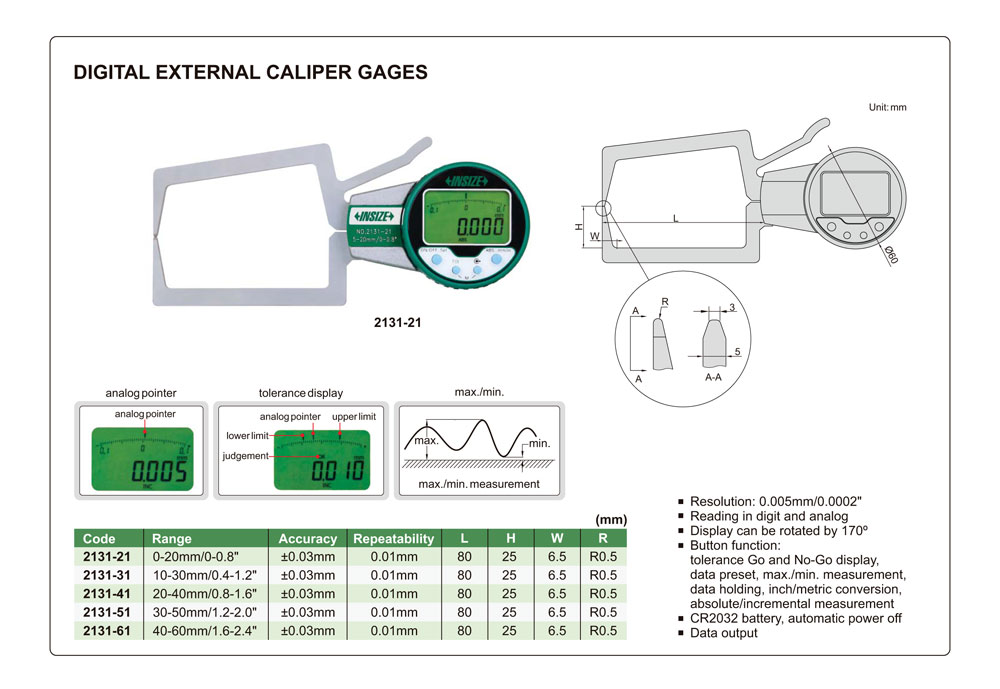

| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2131-21 | 0-20mm/0-0.8" | ±0.03mm | 0.005mm/0.0002" |
| 2131-31 | 10-30mm/0.4-1.2" | ±0.03mm | 0.005mm/0.0002" |
| 2131-41 | 20-40mm/0.8-1.6" | ±0.03mm | 0.005mm/0.0002" |
| 2131-51 | 30-50mm/1.2-2.0" | ±0.03mm | 0.005mm/0.0002" |
| 2131-61 | 40-60mm/1.6-2.4" | ±0.03mm | 0.005mm/0.0002" |
