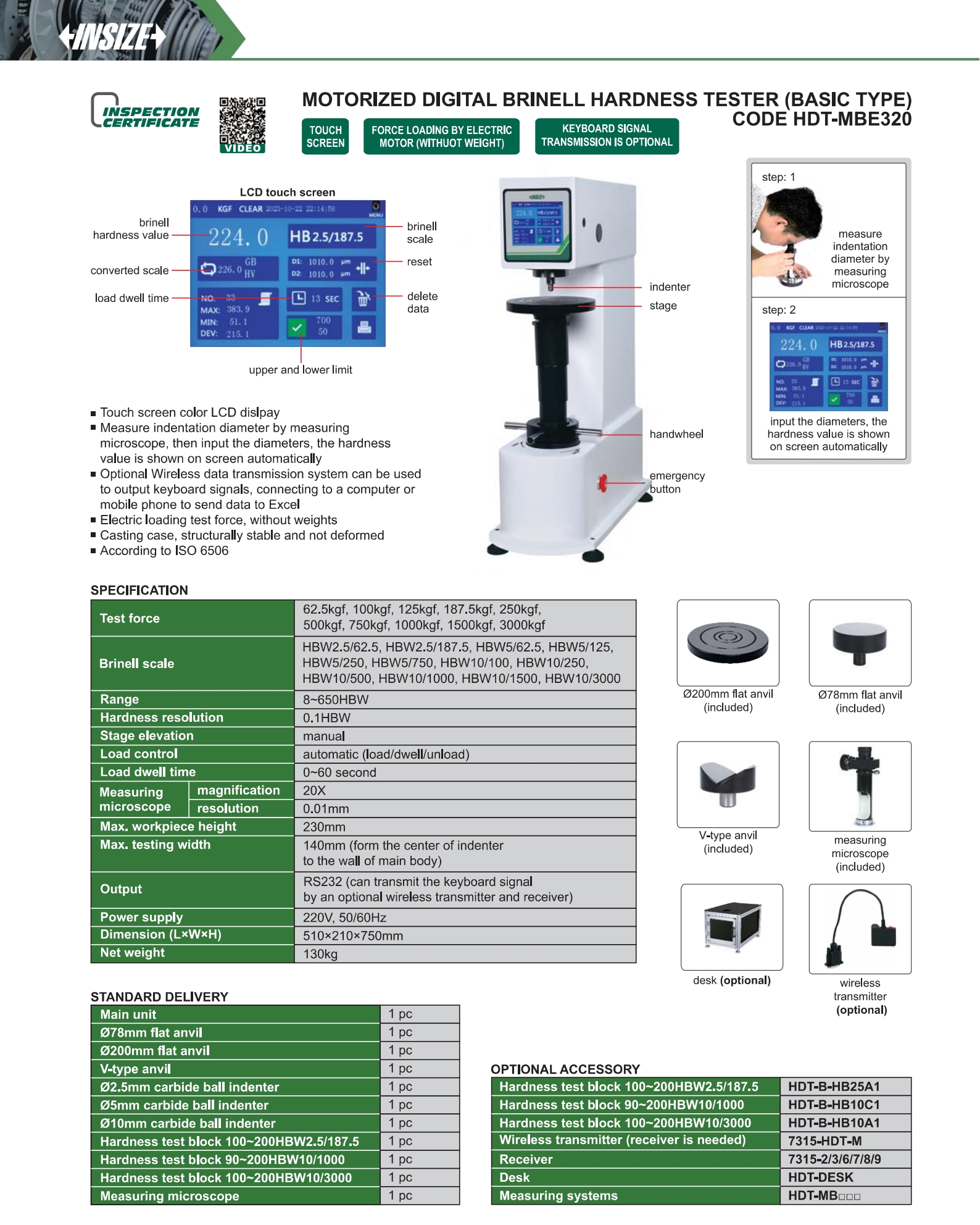

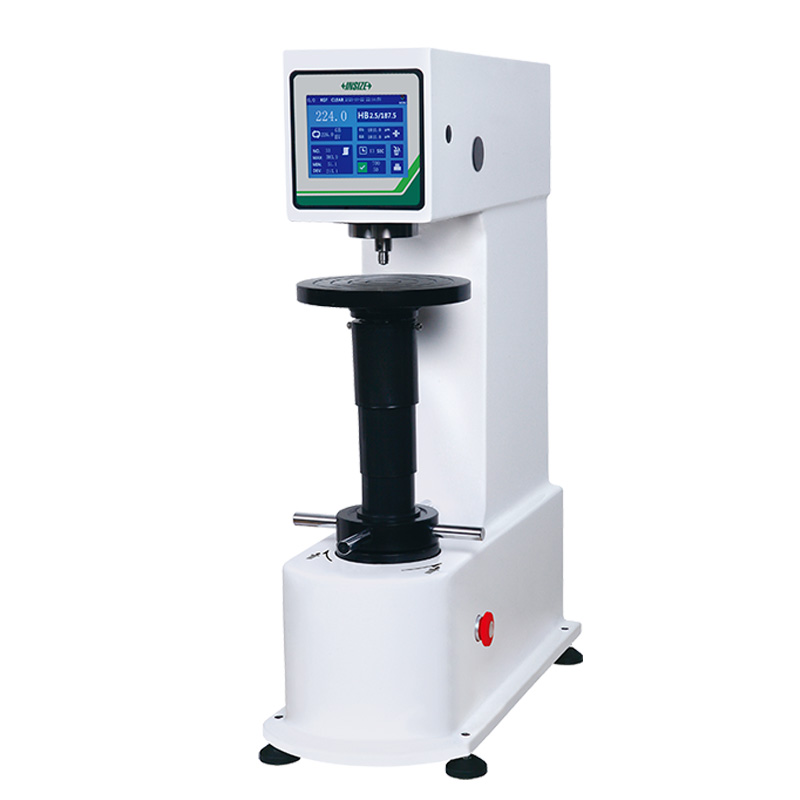

Motorized Digital Brinell Hardness Tester (Basic Type)
Code: HDT-MBE320
Touch screen color LCD display
Measure indentation diameter by measuring microscope, then input the diameters, the hardness value is shown on screen automatically
Electric loading test force, without weights
Casting case, structurally stable and not deformed
According to ISO 6506
| Code | Test force | Load control | Max. workpiece height | Max. testing width | Hardness scale |
|---|---|---|---|---|---|
| HDT-MBE320 | 62.5kgf， 100kgf， 125kgf， 187.5kgf， 250kgf， 500kgf， 750kgf， 1000kgf， 1500kgf， 3000kgf | automatic (load/dwell/unload) | 230mm | 140mm (form the center of indenter to the wall of main body) | HBW2.5/62.5， HBW2.5/187.5， HBW5/62.5， HBW5/125， HBW5/250， HBW5/750， HBW10/100， HBW10/250， HBW10/500， HBW10/1000， HBW10/1500， HBW10/3000 |
View the complete
product specifications
