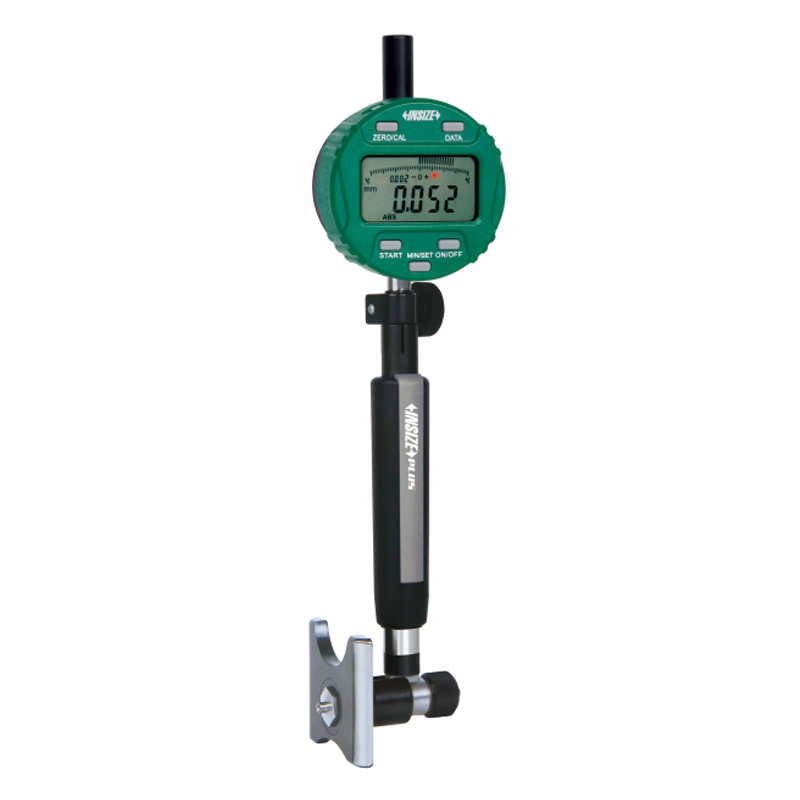

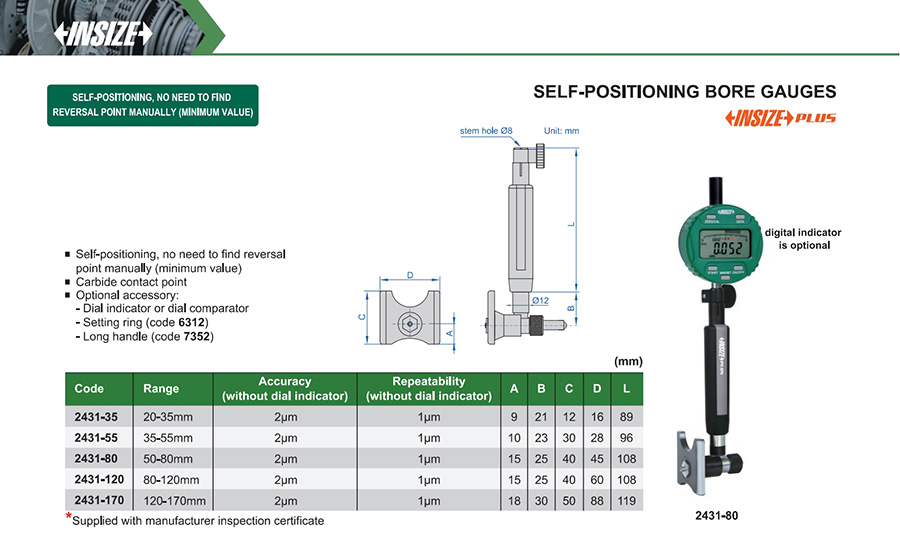

Self-Positioning Bore Gauges
Code: 2431
Self-positioning, no need to find reversal point manually (minimum value)
Carbide contact point
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2431-35 | 20-35mm | 2µm | 1µm |
| 2431-55 | 35-55mm | 2µm | 1µm |
| 2431-100 | 50-100mm | 2µm | 1µm |
| 2431-160 | 100-160mm | 2µm | 1µm |
| 2431-290 | 160-290mm | 2µm | 1µm |
