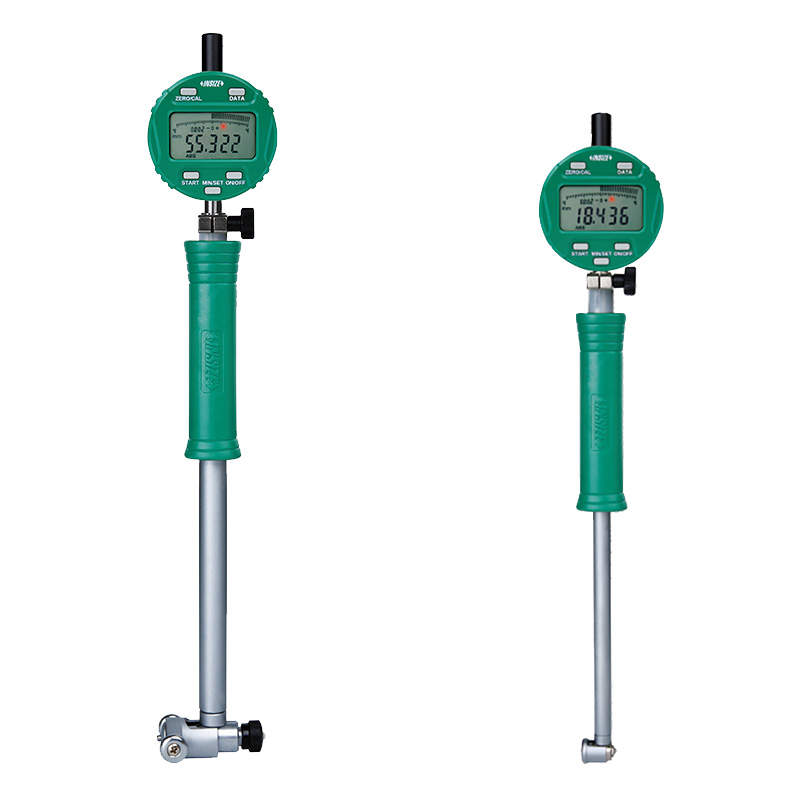

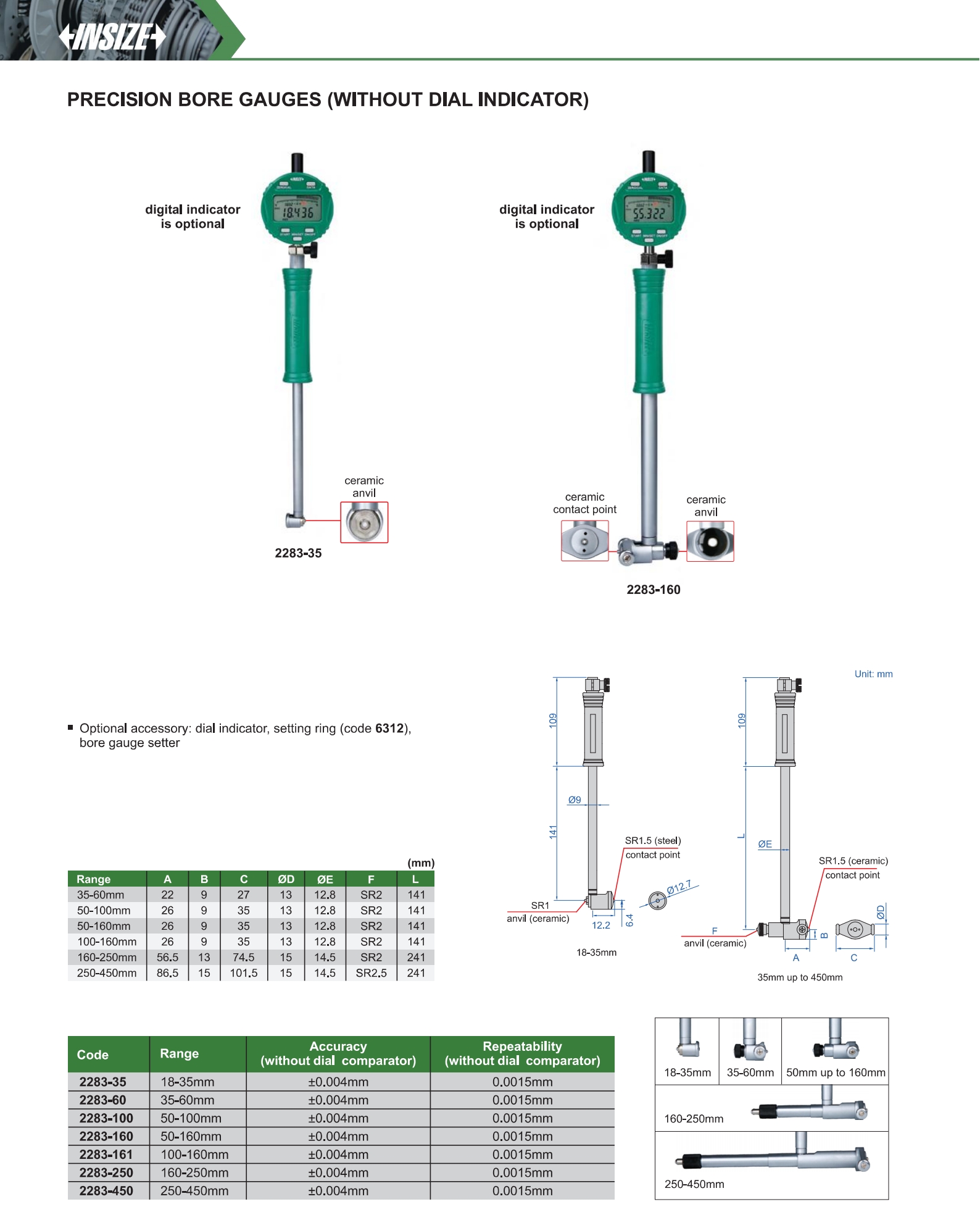

Precision Bore Gauges (Without Dial Indicator)
Code: 2283
Optional accessory: dial indicator, setting ring (code 6312),bore gauge setter
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2283-35 | 18-35mm | ±0.004mm | 0.0015mm |
| 2283-60 | 35-60mm | ±0.004mm | 0.0015mm |
| 2283-100 | 50-100mm | ±0.004mm | 0.0015mm |
| 2283-160 | 50-160mm | ±0.004mm | 0.0015mm |
| 2283-161 | 100-160mm | ±0.004mm | 0.0015mm |
| 2283-250 | 160-250mm | ±0.004mm | 0.0015mm |
| 2283-450 | 250-450mm | ±0.004mm | 0.0015mm |
