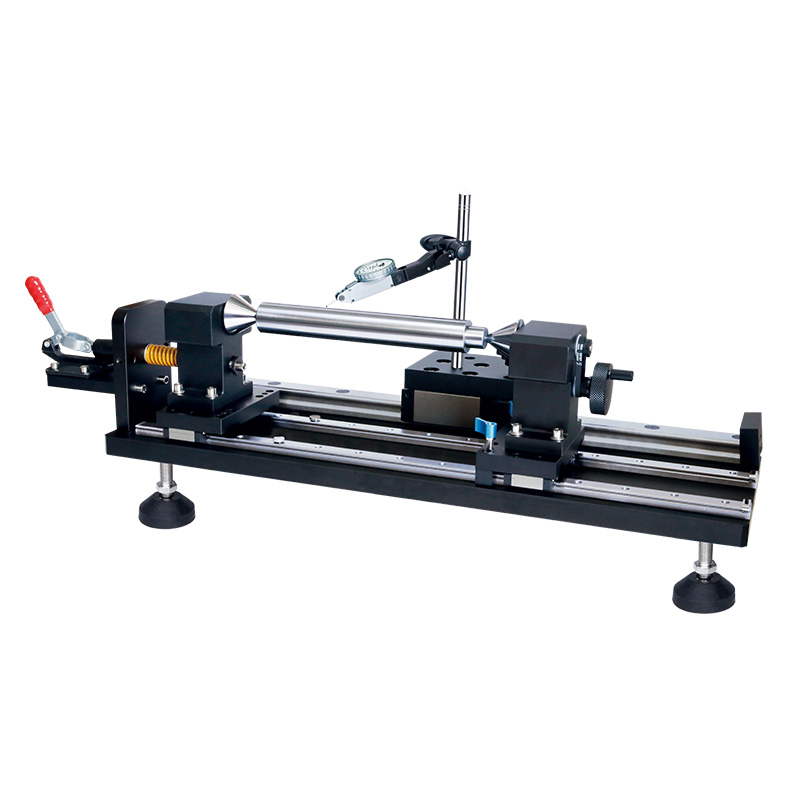

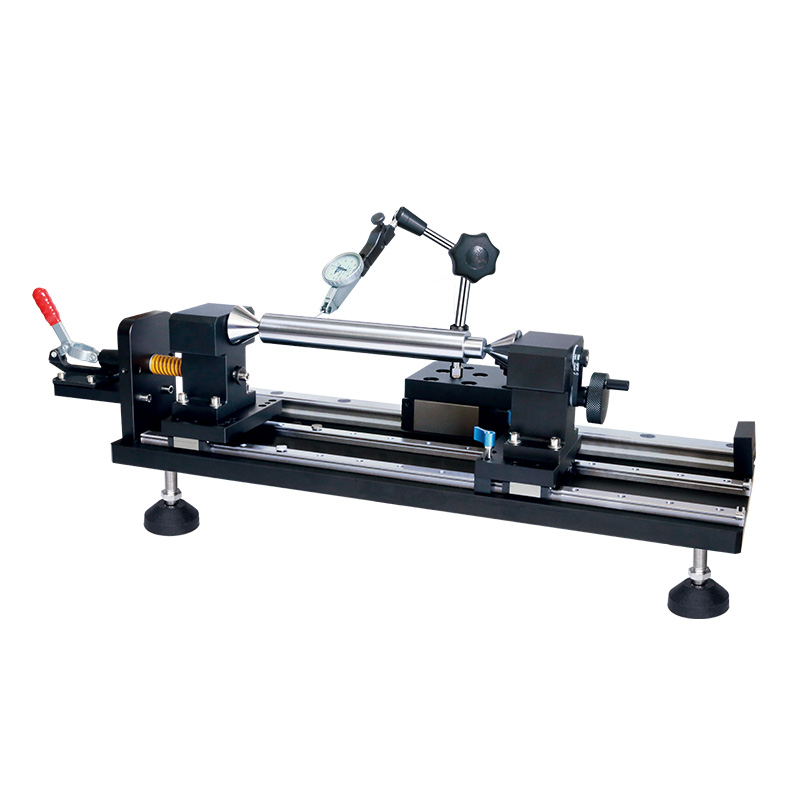

Bench Centers
Code: 4738
Quick positioning, suitable for mass measurement
Suitable for cylinders with outside diameter Ø3-180mm or inside diameter Ø1-40mm
Supplied with standard rod to verify accuracy
Optional accessory: dial test indicators

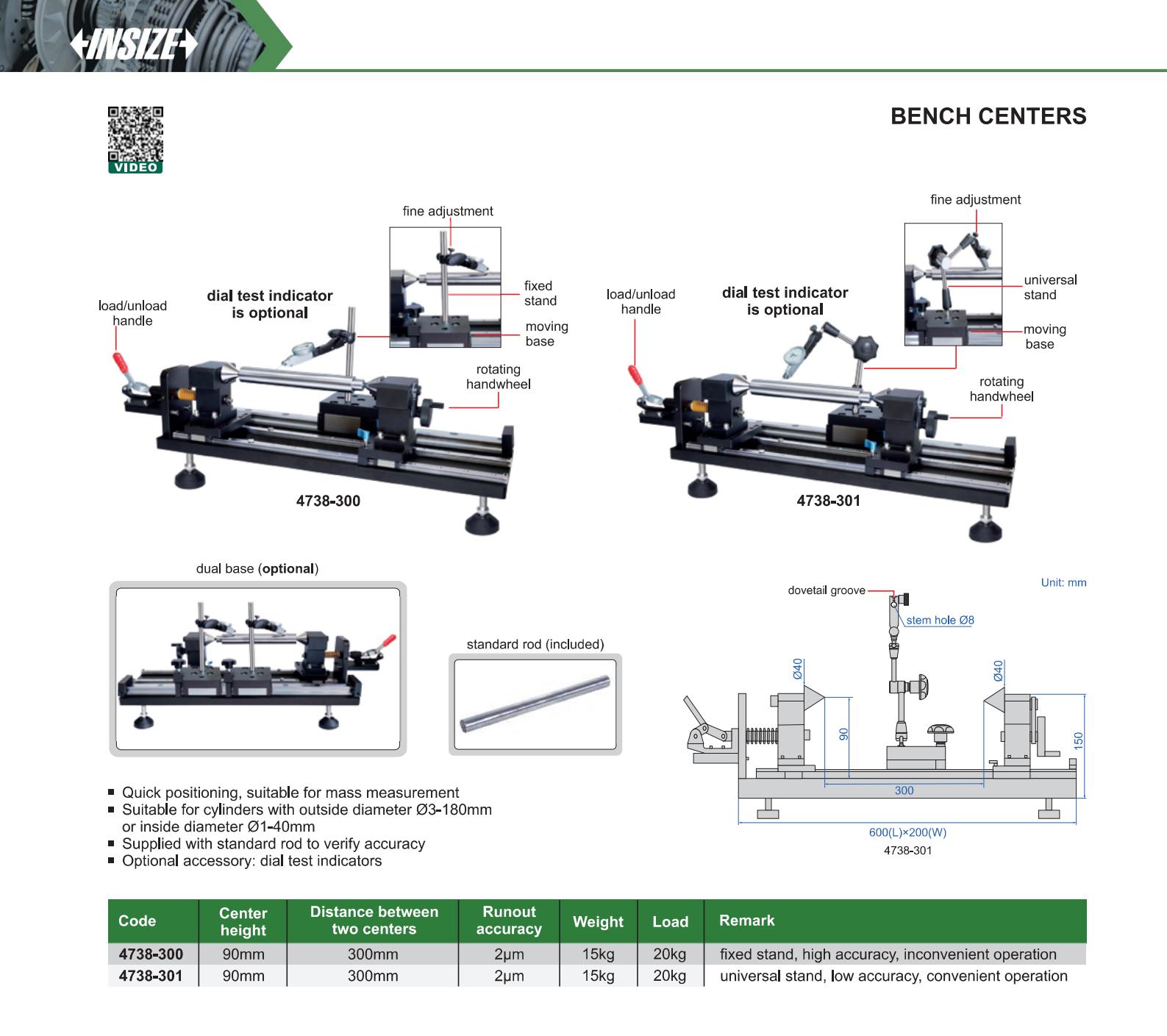

| Code | Range | Accuracy | Remark |
|---|---|---|---|

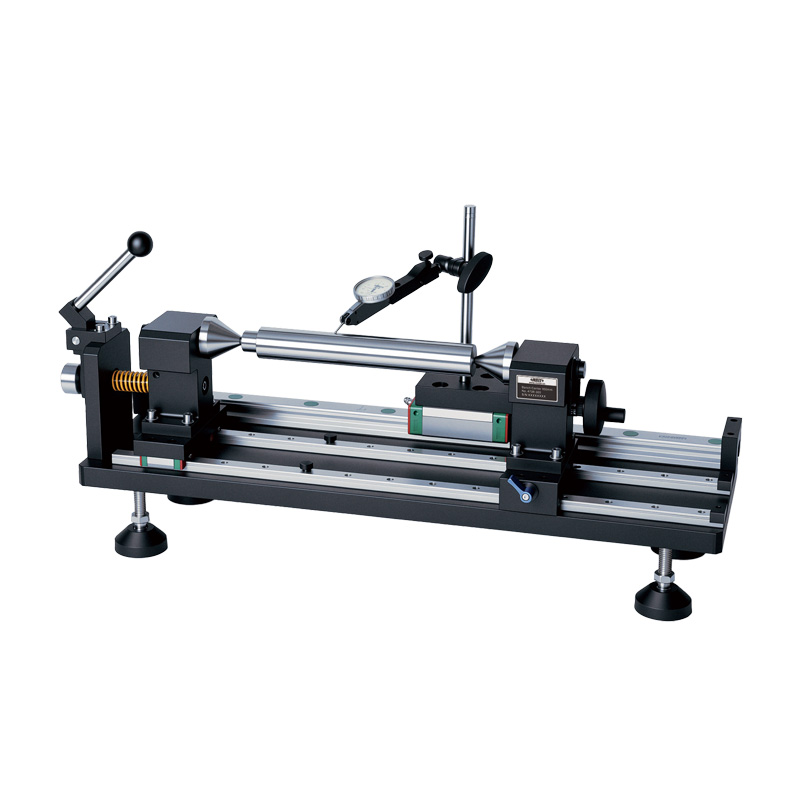

| 4738-300 | Ø3-180mm | 2µm | fixed stand, good rigidity |

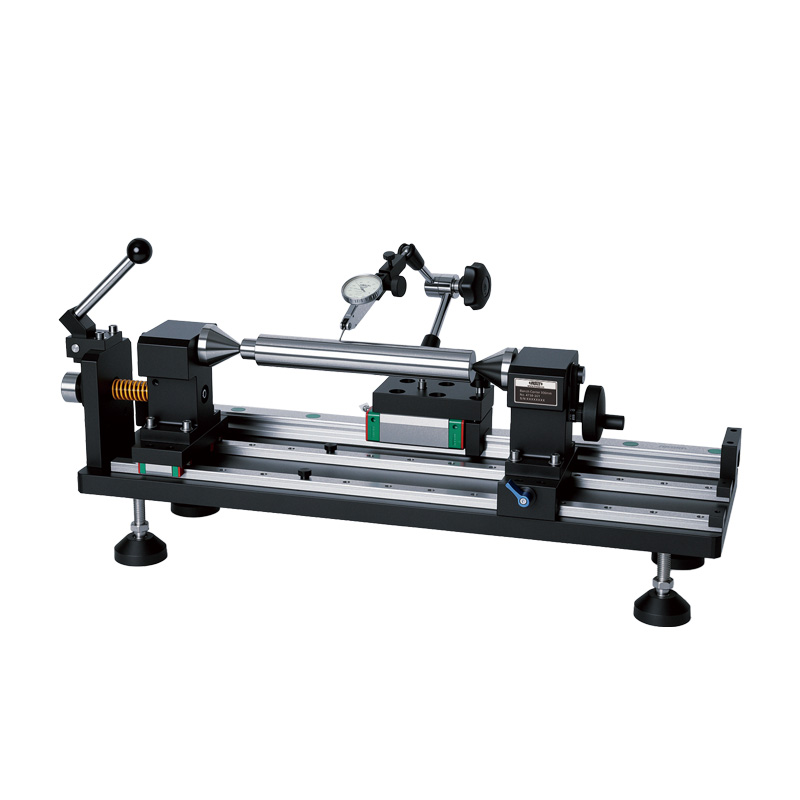

| 4738-301 | Ø3-180mm | 2µm | universal stand, convenient operation |
