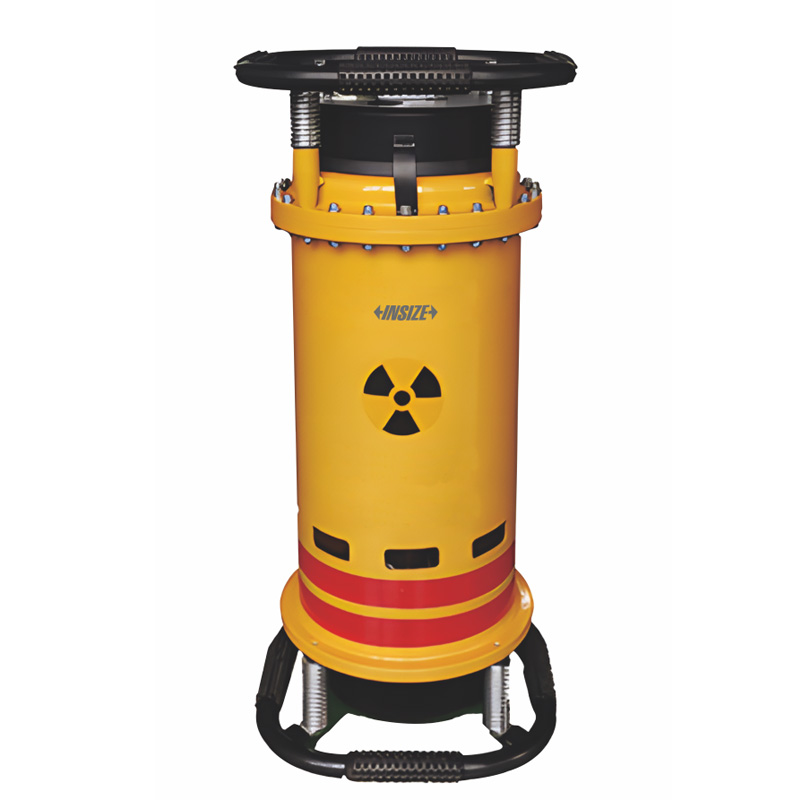

Variable Frequency Portable X-Ray Flaw Detectors
Code: RXT Series
High immunity to interference, especially for generator-powered operation
Quick and accurate selection of exposure parameters by knob, easy to operate
Delayed high-voltage activation allows operator to evacuate hazards in time
Slow rise and fall of the high voltage protects the X-ray generator
Auto work-rest in 1:1 mode, max continuous exposure 5 minutes
Training mode available to prevent X-ray generator damage from long-term inactivity
Over-voltage, over-current, under-current, over-temperature protection, to avoid machine damage
Digital tube to display exposure time and fault code
Stronger and lighter structure design, easy to operate in the field
| Code | Input | Focus size | Radiation angle |
|---|---|---|---|
| RXT-HC020A | 2.0kW | 1.0×5.0mm | conical target 30×360°, flat target 25°×360° |
| RXT-HC025A | 2.5kW | 1.0×5.0mm | conical target 30×360°, flat target 25°×360° |
| RXT-HC030A | 3.0kW | 1.0×5.5mm | conical target 30×360°, flat target 25°×360° |
| RXT-GS010A | 1.2kW | 1.0x3.5mm | conical target 30+5°, flat target 25+5° |
| RXT-GS016A | 1.5kW | 1.0x3.5mm | conical target 30+5°, flat target 25+5° |
| RXT-GS020A | 2.0kW | 1.0x3.5mm | conical target 30+5°, flat target 25+5° |
| RXT-GS025A | 2.5kW | 1.0x2.4mm | conical target 30+5°, flat target 25+5° |
| RXT-GS030A | 3.0kW | 1.0x2.3mm | conical target 30+5°, flat target 25+5° |
| RXT-HC016B | 1.5kW | 0.8x0.8mm | 40+5° |
| RXT-HC020B | 2.0kW | 2.0x2.0mm | 40+5° |
| RXT-HC025B | 2.5kW | 2.0x2.0mm | 40+5° |
| RXT-HC030B | 3.0kW | 2.5x2.5mm | 40+5° |
| RXT-HC035B | 3.5kW | 2.5x2.5mm | 40+5° |
| RXT-GS010B | 1.2kW | 0.8x0.8mm | 40° |
| RXT-GS016B | 1.5kW | 0.8x0.8mm | 40° |
| RXT-GS020B | 2.0kW | 1.5x1.5mm | 40+5° |
| RXT-GS025B | 2.5kW | 2.0x2.0mm | 40+5° |
| RXT-GS030B | 3.0kW | 2.3x2.3mm | 40+5° |

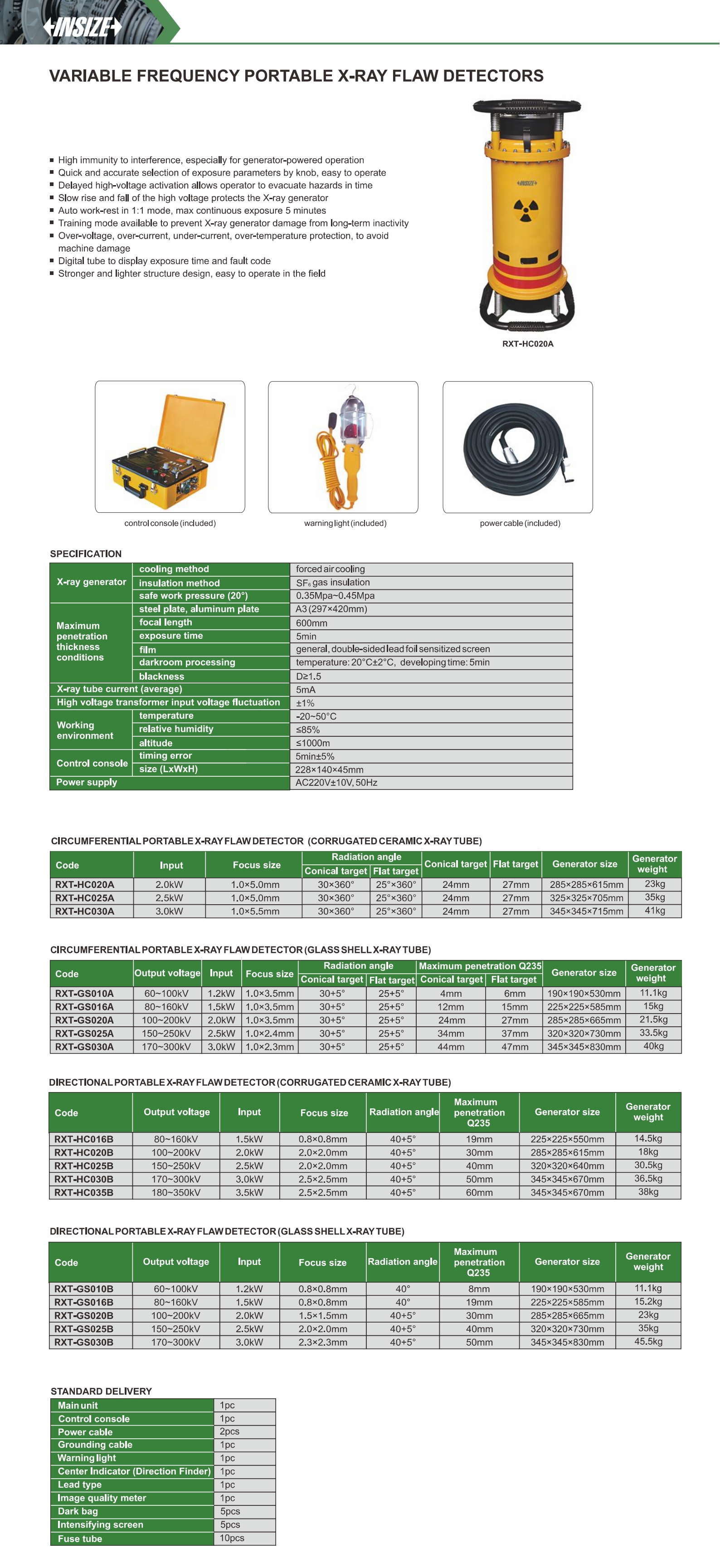

View the complete
product specifications
