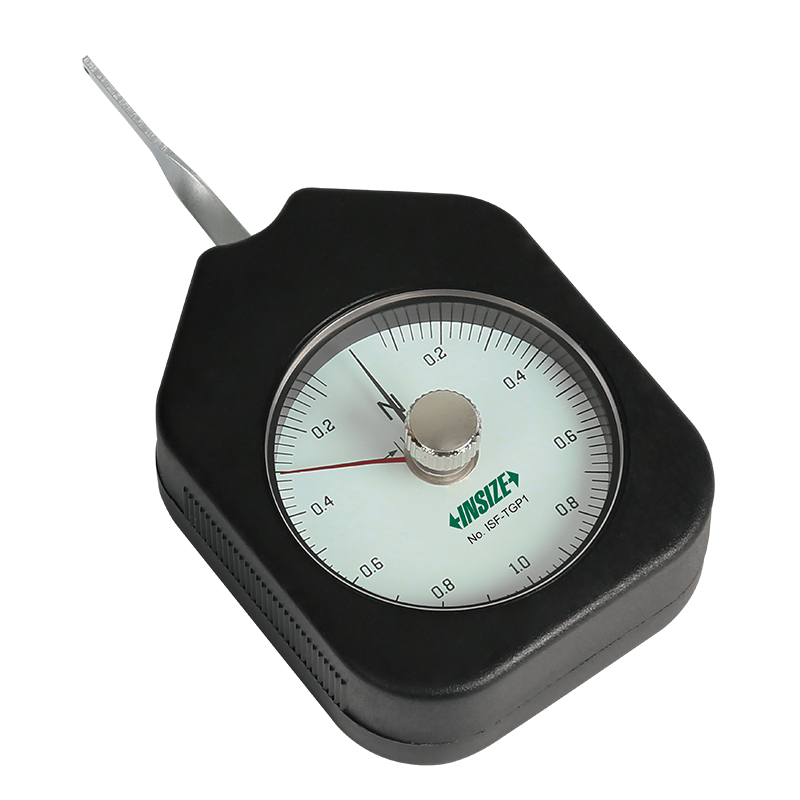

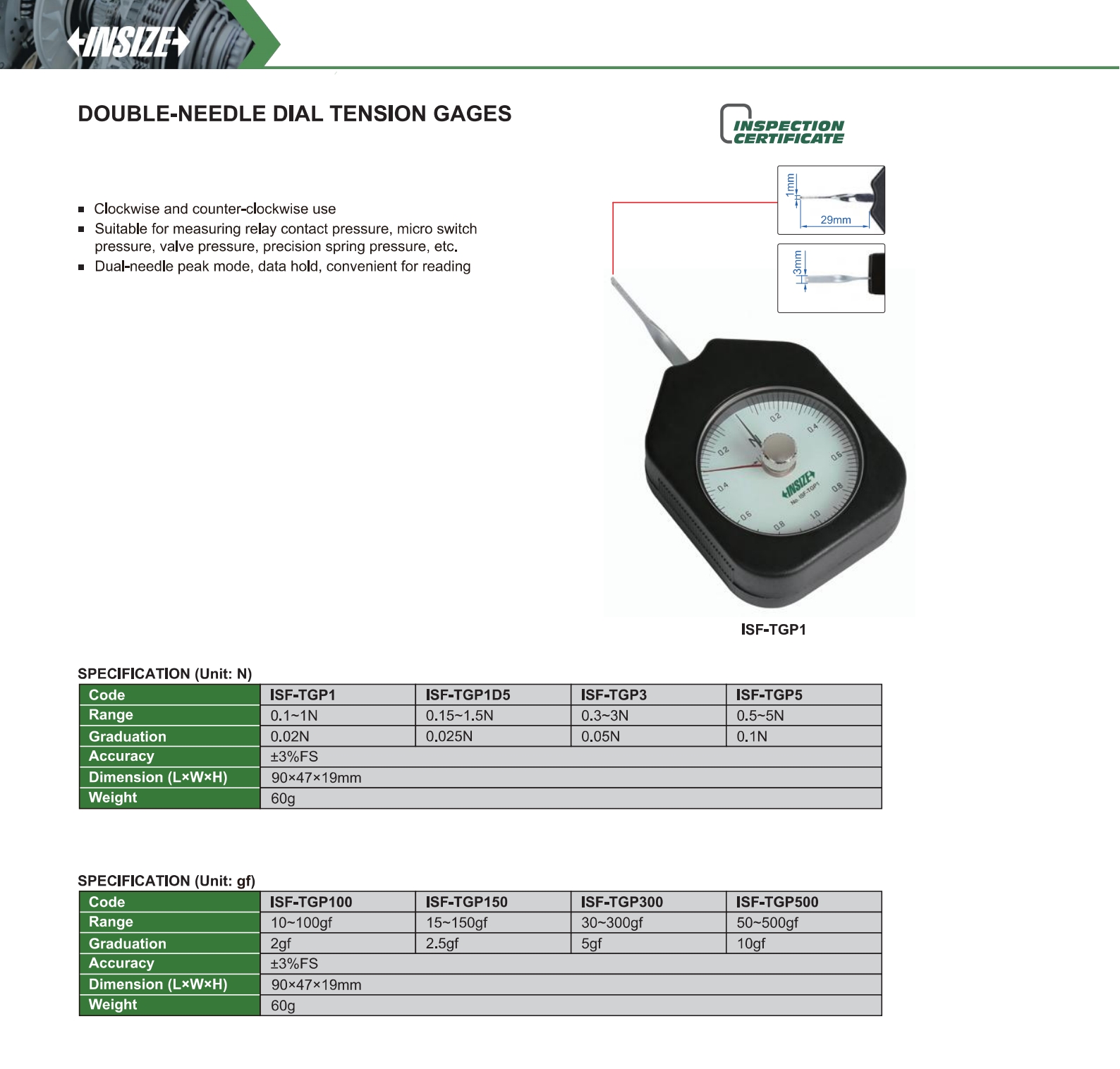

Double-Needle Dial Tension Gages
Code: ISF-TGP Series
Clockwise and counter-clockwise use
Suitable for measuring relay contact pressure, micro switch pressure, valve pressure, precision spring pressure, etc.
Dual-needle peak mode, data hold, convenient for reading
| Code | Range | Accuracy |
|---|---|---|
| ISF-TGP1 | 0.1~1N | ±2%FS |
| SF-TGP1D5 | 0.15~1.5N | ±2%FS |
| ISF-TGP3 | 0.3~3N | ±2%FS |
| ISF-TGP5 | 0.5~5N | ±2%FS |
| ISF-TGP100 | 10~100gf | ±2%FS |
| ISF-TGP150 | 15~150gf | ±2%FS |
| ISF-TGP300 | 30~300gf | ±2%FS |
| ISF-TGP500 | 50~500gf | ±2%FS |
