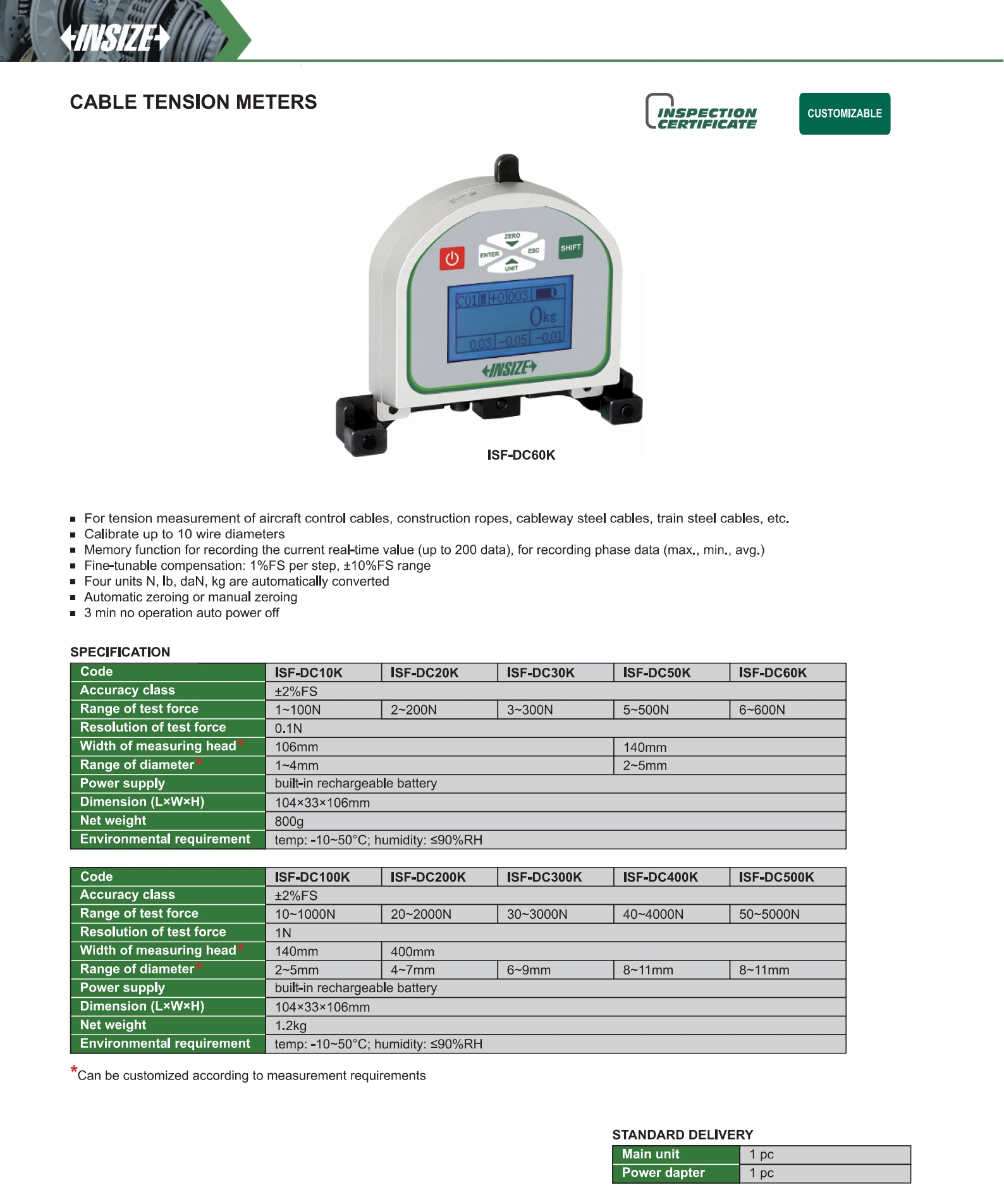

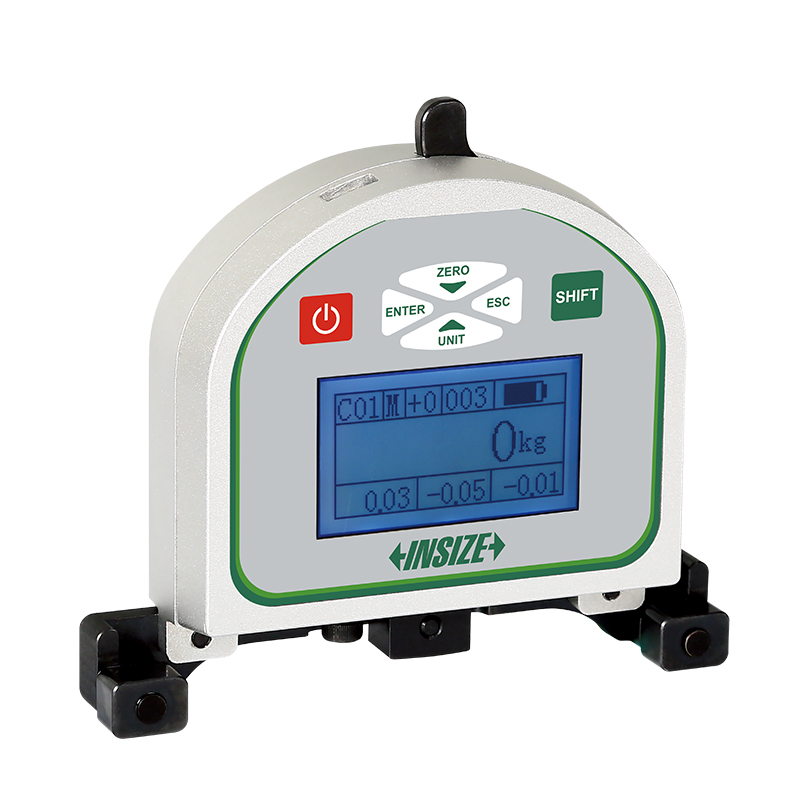

Cable Tension Meters
Code: ISF-DC Series
For tension measurement of aircraft control cables, construction ropes, cableway steel cables, train steel cables, etc.
Calibrate up to 10 wire diameters
Memory function for recording the current real-time value (up to 200 data), for recording phase data (max., min., avg.)
Fine-tunable compensation: 1%FS per step, ±10%FS range
Four units N, lb, daN, kg are automatically converted
| Code | Accuracy | Range of test force | Resolution of test force | Width of measuring head | Range of diameter |
|---|---|---|---|---|---|
| ISF-DC10K | ±2%FS | 1~100N | 0.1N | 106mm | 1~4mm |
| ISF-DC20K | ±2%FS | 2~200N | 0.1N | 106mm | 1~4mm |
| ISF-DC30K | ±2%FS | 3~300N | 0.1N | 106mm | 1~4mm |
| ISF-DC50K | ±2%FS | 5~500N | 0.1N | 140mm | 2~5mm |
| ISF-DC60K | ±2%FS | 6~600N | 0.1N | 140mm | 2~5mm |
| ISF-DC100K | ±2%FS | 10~1000N | 1N | 140mm | 2~5mm |
| ISF-DC200K | ±2%FS | 20~2000N | 1N | 400mm | 4~7mm |
| ISF-DC300K | ±2%FS | 30~3000N | 1N | 400mm | 6~9mm |
| ISF-DC400K | ±2%FS | 40~4000N | 1N | 400mm | 8~11mm |
| ISF-DC500K | ±2%FS | 50~5000N | 1N | 400mm | 8~11mm |
