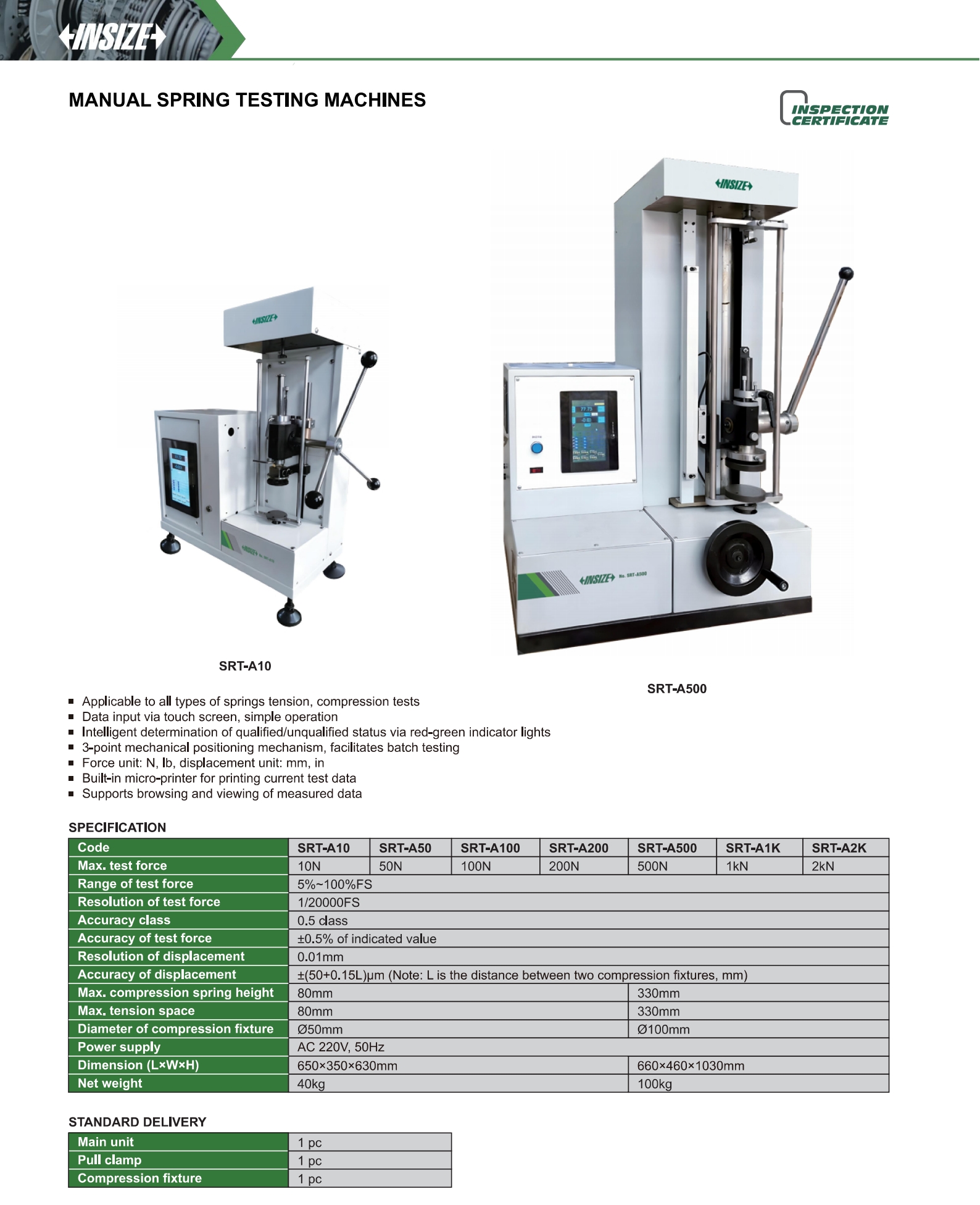

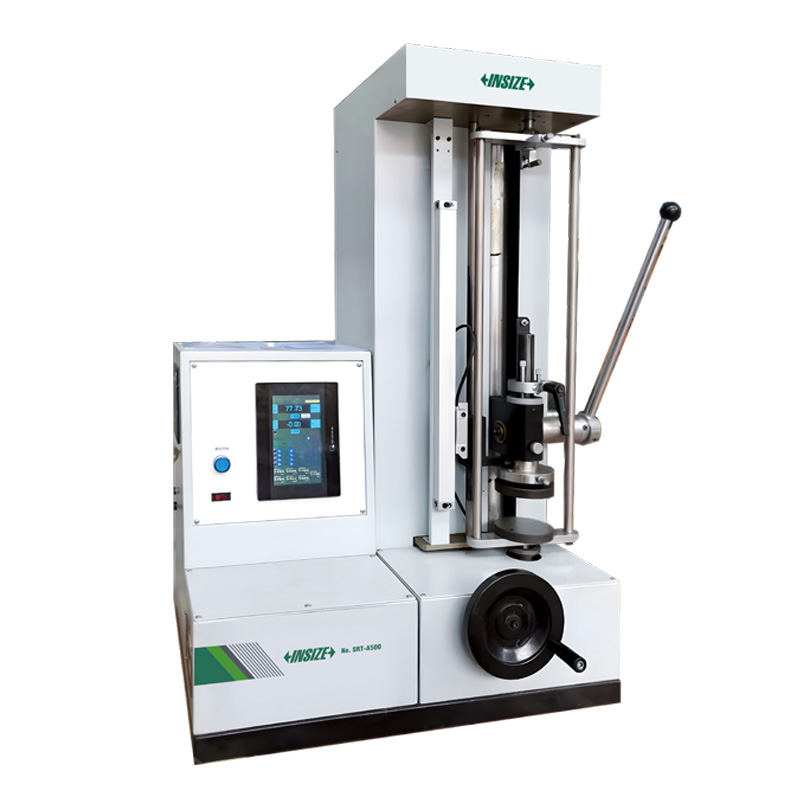

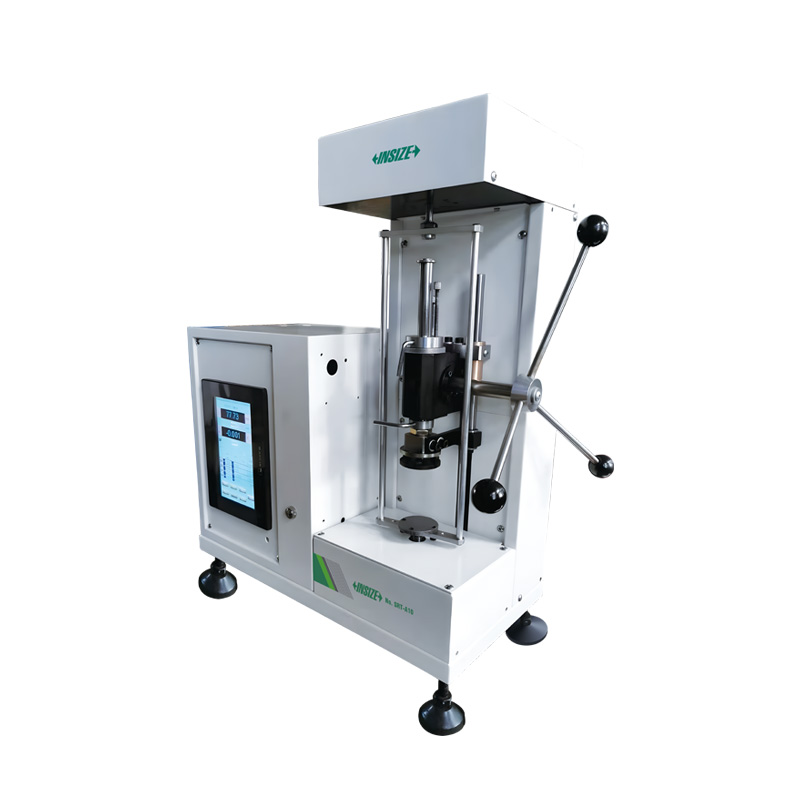

Manual Spring Testing Machines
Code: SRT-A Series
Applicable to all types of springs tension, compression tests
Data input via touch screen, simple operation
Intelligent determination of qualified/unqualified status via red-green indicator lights
3-point mechanical positioning mechanism, facilitates batch testing
Force unit: N, lb, displacement unit: mm, in
Built-in micro-printer for printing current test data
Supports browsing and viewing of measured data
| Code | Max. test force | Accuracy of test force |
|---|---|---|
| SRT-A10 | 10N | ±0.5% of indicated value |
| SRT-A50 | 50N | ±0.5% of indicated value |
| SRT-A100 | 100N | ±0.5% of indicated value |
| SRT-A200 | 200N | ±0.5% of indicated value |
| SRT-A500 | 500N | ±0.5% of indicated value |
| SRT-A1K | 1kN | ±0.5% of indicated value |
| SRT-A2K | 2kN | ±0.5% of indicated value |
