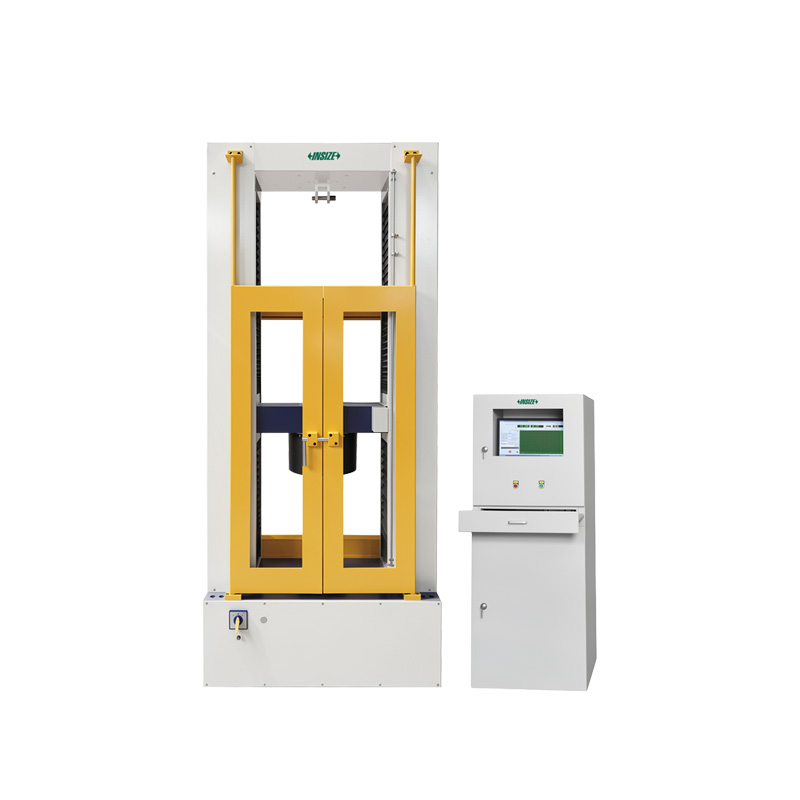

Automatic Spring Testing Machines
Code: SRT-D Series
Suitable for static testing of various springs and spring assemblies
High-precision and high-stability embedded computer measurement & control system
Six-column gantry high-rigidity frame equipped with four lead screws and double guide rails to realize four-sided parallel loading
Three load cells arranged in a triangular layout to eliminate eccentric loading caused by misaligned specimen placement
Real-time acquisition of load-displacement curves and other test data; automatic saving and printing of test reports. The system supports multi-condition data query for efficient management of massive test data

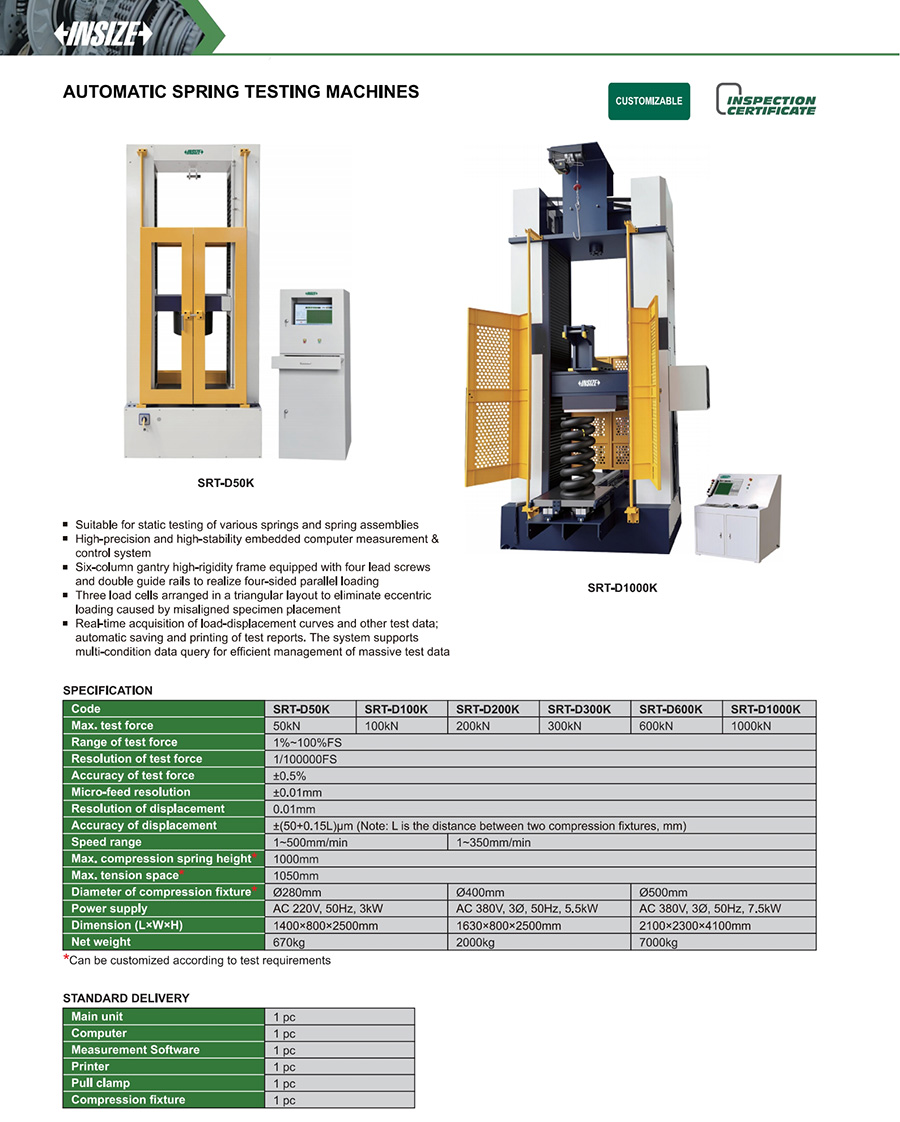

| Code | Max. test force | Accuracy of test force |
|---|---|---|
| SRT-D50K | 50kN | ±0.5% |
| SRT-D100K | 100kN | ±0.5% |
| SRT-D200K | 200kN | ±0.5% |
| SRT-D300K | 300kN | ±0.5% |
| SRT-D600K | 600kN | ±0.5% |

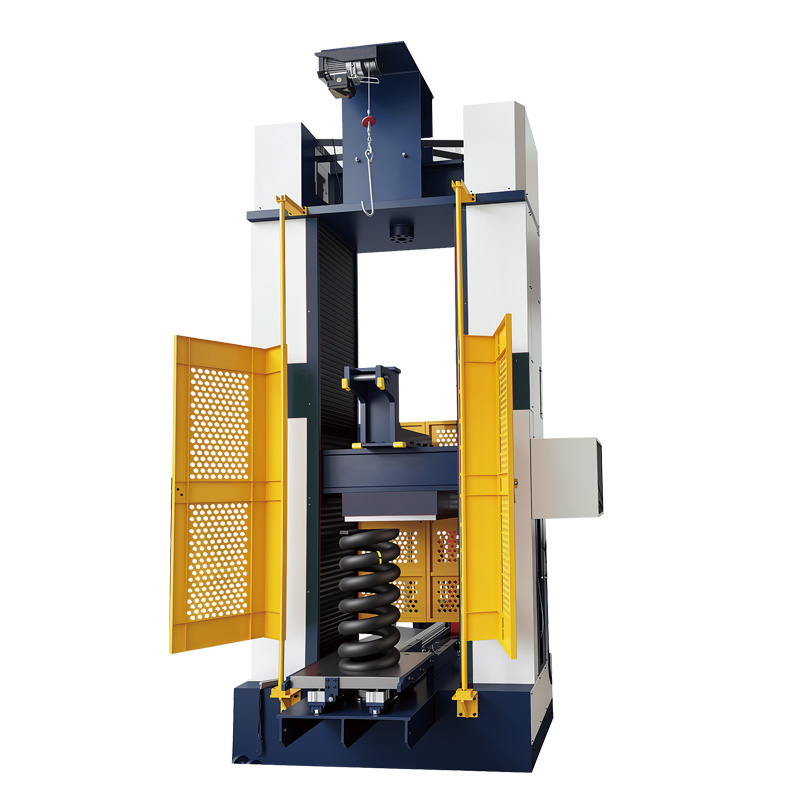

| SRT-D1000K | 1000kN | ±0.5% |
