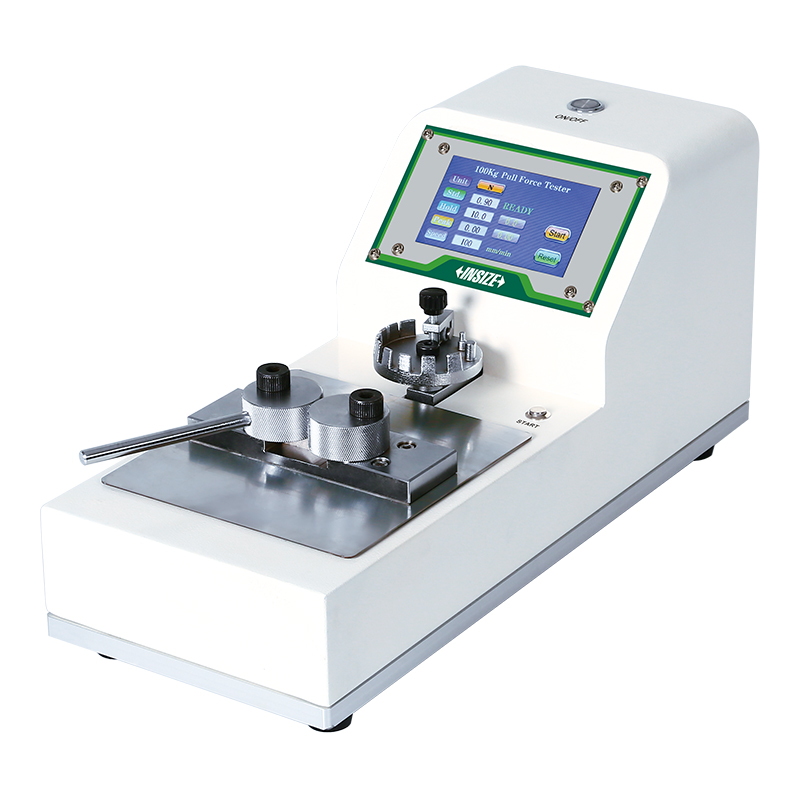

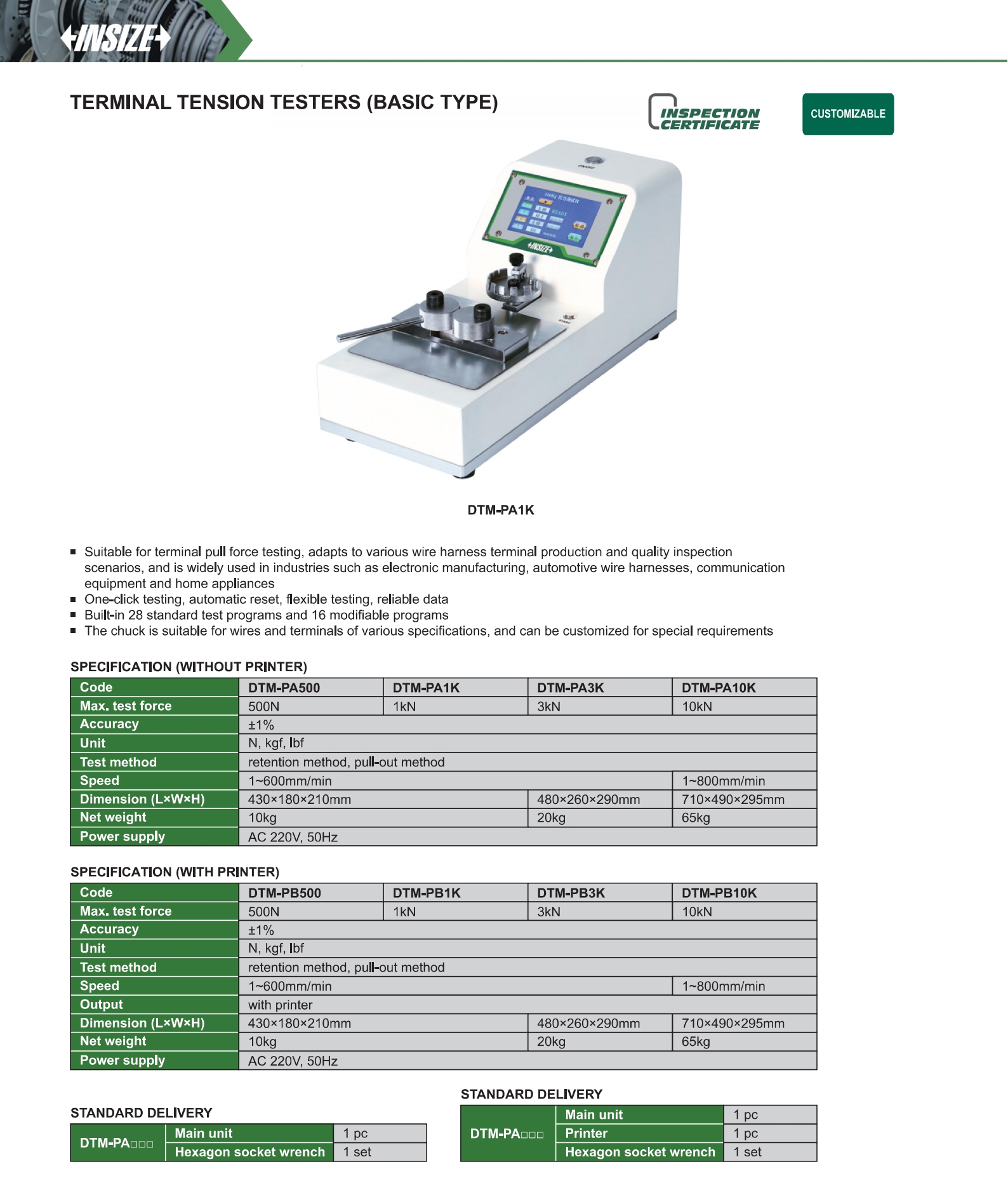

Terminal Tension Testers (Basic Type)
Code: DTM-P
Suitable for terminal pull force testing, adapts to various wire harness terminal production and quality inspection scenarios, and is widely used in industries such as electronic manufacturing, automotive wire harnesses, communication equipment and home appliances
One-click testing, automatic reset, flexible testing, reliable data
Built-in 28 standard test programs and 16 modifiable programs
| Code | Accuracy | Test methods | Unit | Max. test force |
|---|---|---|---|---|
| DTM-PA500 | ±1% | retention method, pull-out method | N, kgf, lbf | 500N |
| DTM-PA1K | ±1% | retention method, pull-out method | N, kgf, lbf | 1kN |
| DTM-PA3K | ±1% | retention method, pull-out method | N, kgf, lbf | 3kN |
| DTM-PA10K | ±1% | retention method, pull-out method | N, kgf, lbf | 10kN |
| DTM-PB500 | ±1% | retention method, pull-out method | N, kgf, lbf | 500N |
| DTM-PB1K | ±1% | retention method, pull-out method | N, kgf, lbf | 1kN |
| DTM-PB3K | ±1% | retention method, pull-out method | N, kgf, lbf | 3kN |
| DTM-PB10K | ±1% | retention method, pull-out method | N, kgf, lbf | 10kN |
